INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.
Contact your dealer with questions on installation, operation, or service.
NOTICE:
DO NOT discard this manual!
Model(s):

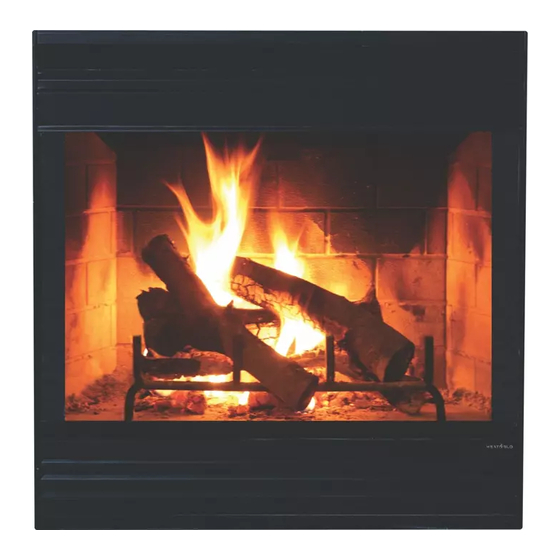

WOODBURNING FIREPLACE
Installation and service of this fi replace should be
performed by qualifi ed personnel. Hearth & Home
Technologies recommends NFI certifi ed profes-
sionals, or technicians supervised by an
NFI certifi ed professional.
Owner's Manual
Operation and Care
Heat & Glo • Exclaim-36/42 Owner's Manual • 4013-267 • Rev E • 05/07/14
WARNING: If the information in these
instructions is not followed exactly, a fi re
or explosion may result causing property
damage, personal injury, or death.
• DO NOT store or use gasoline or other fl am-
mable vapors and liquids in the vicinity of this
or any other appliance.
• DO NOT overfi re. Overfi ring will void your
warranty.
• Comply with all minimum clearances to com-
bustibles as specifi ed. Failure to comply may
cause house fi re.
WARNING
HOT SURFACES!
Glass and other surfaces are hot during
operation AND cool down.
Hot glass will cause burns.
• DO NOT touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as
fi replace.
• Alert children and adults to hazards of high temperatures.
High temperatures may ignite clothing or other fl ammable
materials.
• Keep clothing, furniture, draperies and other fl ammable
materials away.
WARNING
Fire Risk.
For use with solid wood fuel only.
Other fuels may overfi re and generate
poisonous gases (i.e. carbon monoxide).
1
Advertisement
Table of Contents
Related Manuals for Heat&Glo EXCLAIM-42
Summary of Contents for Heat&Glo EXCLAIM-42
-
Page 1: Woodburning Fireplace
High temperatures may ignite clothing or other fl ammable materials. WOODBURNING FIREPLACE • Keep clothing, furniture, draperies and other fl ammable materials away. WARNING Installation and service of this fi replace should be performed by qualifi ed personnel. Hearth & Home Technologies recommends NFI certifi ed profes- Fire Risk. sionals, or technicians supervised by an For use with solid wood fuel only. NFI certifi ed professional. Other fuels may overfi re and generate poisonous gases (i.e. carbon monoxide). Heat & Glo • Exclaim-36/42 Owner’s Manual • 4013-267 • Rev E • 05/07/14... -
Page 2: Table Of Contents
B. General Operating Parts 1. Flue Damper 2. Outside Air 3. Glass Doors C. Fuel 1. Hardwood vs. Softwood 2. Moisture content 3. Seasoning 4. Storing Wood 5. Burning Process 6. Creosote Formation 7. Processed Solid Fuel Firelogs D. First Fire E. Lighting Instructions Heat & Glo • Exclaim-36/42 Owner’s Manual • 4013-267 • Rev E • 05/07/14... -
Page 3: Welcome
IF INSTALLATION OR OPERATING INSTRUCTIONS ARE MISSING DECORATIVE GAS APPLIANCE IN THE FIREPLACE, CONTACT: HEARTH & HOME TECHNOLOGIES, ADJUST DAMPER TO THE FULLY OPEN POSITION. 7571 215th Street West, Lakeville, MN 55044 Heat & Glo • Exclaim-36/42 Owner’s Manual • 4013-267 • Rev E • 05/07/14... -
Page 4: Limited Lifetime Warranty
2 years Factory-installed blowers Molded refractory panels 3 years Firepots and burnpots 5 years 1 year Castings and baffles Manifold tubes, 7 years 3 years HHT chimney and termination 1 year Burners, logs and refractory years Limited 3 years Firebox and heat exchanger Lifetime All replacement parts 90 Days beyond warranty period See conditions, exclusions, and limitations on next page. 4021-645F 02-18-13 Page 1 of 2 Heat & Glo • Exclaim-36/42 Owner’s Manual • 4013-267 • Rev E • 05/07/14... - Page 5 This warranty is void if: • The appliance has been over-fired or operated in atmospheres contaminated by chlorine, fluorine, or other damaging chemicals. Over-firing can be identified by, but not limited to, warped plates or tubes, rust colored cast iron, bubbling, cracking and discoloration of steel or enamel finishes. • The appliance is subjected to prolonged periods of dampness or condensation. • There is any damage to the appliance or other components due to water or weather damage which is the result of, but not limited to, improper chimney or venting installation. LIMITATIONS OF LIABILITY: • The owner’s exclusive remedy and HHT’s sole obligation under this warranty, under any other warranty, express or implied, or in contract, tort or otherwise, shall be limited to replacement, repair, or refund, as specified above. In no event will HHT be liable for any incidental or consequential damages caused by defects in the appliance. Some states do not allow exclusions or limitation of incidental or consequential damages, so these limitations may not apply to you. This warranty gives you specific rights; you may also have other rights, which vary from state to state. EXCEPT TO THE EXTENT PROVIDED BY LAW, HHT MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY SPECIFIED HEREIN. THE DURATION OF ANY IMPLIED WARRANTY IS LIMITED TO DURATION OF THE EXPRESSED WARRANTY SPECIFIED ABOVE. 4021-645F 02-18-13 Page 2 of 2 Heat & Glo • Exclaim-36/42 Owner’s Manual • 4013-267 • Rev E • 05/07/14...
-
Page 6: Product Specific And General Information
• DO NOT install unvented gas logs. This fireplace has been tested and listed for use with the optional components specified in this manual. These op- • Damper must be locked open. • Gas flame may generate fumes. tional components may be purchased separately and in- stalled at a later date. Installation of an outside air kit will require significant reconstruction and is best if installed at the time of fireplace installation. Heat & Glo is a registered trademark of Hearth & Home Technologies. Warning! Risk of Fire! For use with solid wood fuel only. Other fuels may overfire and generate poisonous gases (i.e. carbon monoxide). Heat & Glo • Exclaim-36/42 Owner’s Manual • 4013-267 • Rev E • 05/07/14... -
Page 7: Important Safety And Operating Information
48 1/8 in. (1222 mm) Clear Space Bottom of Fireplace to Lower Edge of Mantel or Trim 48 in. (1219 mm) Clear Space Front of Fireplace 12 in. (305 mm) Clear Space Sides of Fireplace (from the FP opening) Figure 3.1 Clear Space Heat & Glo • Exclaim-36/42 Owner’s Manual • 4013-267 • Rev E • 05/07/14... -
Page 8: Grate
If doors are left partly open, gas and flame may be drawn out of the freplace opening. Heat & Glo • Exclaim-36/42 Owner’s Manual • 4013-267 • Rev E • 05/07/14... -
Page 9: General Operating Parts
CAUTION! If you expect that children may come into contact with this fi replace, we recommend a barrier such as a decorative screen. See your dealer for suggestions. B. General Operating Parts WARNING! DO NOT operate fi replace before reading and understanding operating instructions. Failure to operate fi re- place according to operating instructions could cause fi re or injury. open Damper close Handle Outside Air Handle up - open Handle down - closed Figure 3.2 General Operating Parts Heat & Glo • Exclaim-36/42 Owner’s Manual • 4013-267 • Rev E • 05/07/14... -
Page 10: Flue Damper
The outside air kit supplies some combustion air for your fi replace. It may help reduce the effects of nega- tive air pressure. FULLY CLOSED PARTLY CLOSED CORRECT INCORRECT Close the inlet to prevent cold drafts when the fi replace is not being used CAUTION! Outside air control handle may be warm. Adjust before lighting fi re. Figure 3.3 Operating Positions of Bi-fold Doors Heat & Glo • Exclaim-36/42 Owner’s Manual • 4013-267 • Rev E • 05/07/14... -
Page 11: Fuel
Soft woods Hard woods • Douglas Fir • Oak • Pine • Maple • Spruce • Apple • Cedar • Birch • Poplar • Aspen • Alder Heat & Glo • Exclaim-36/42 Owner’s Manual • 4013-267 • Rev E • 05/07/14... -
Page 12: Seasoning
D. First Fire etc., as uncovered wood can absorb water from rain Before lighting your first fire in the fireplace, make certain or snow, delaying the seasoning process. Avoid that: covering the sides and ends completely. Doing so may trap moisture from the ground and impede air • refractory is in place circulation. • all labels have been removed Heat & Glo • Exclaim-36/42 Owner’s Manual • 4013-267 • Rev E • 05/07/14... -
Page 13: Lighting Instructions
WARNING! Risk of Fire! Keep combustible materials, gasoline and other flammable vapors and liquids clear of the fireplace. DO NOT: • store flammable materials close to the fireplace • use gasoline, lantern fuel, kerosene, charcoal lighter fluid or similar liquids to start or “freshen up” a fire in this fireplace. Heat & Glo • Exclaim-36/42 Owner’s Manual • 4013-267 • Rev E • 05/07/14... -
Page 14: Maintenance And Service
In the event of a chimney fire, Hearth & Home Tech- • condition of doors, surrounds and fronts nologies recommends replacement of the chimney and • condition of glass and glass assembly inspection of the adjacent structure to the provisions of • obstructions of combustion and ventilation air NFPA Level III inspection criteria. • obstructions of termination cap Clean: • glass • air passageways, grilles Heat & Glo • Exclaim-36/42 Owner’s Manual • 4013-267 • Rev E • 05/07/14... -
Page 15: Creosote (Chimney) Cleaning
TCT1175 ST1175 TR444/TR442 ST475 Terra Cotta Round Termination Cap Termination Cap Square Termination Cap Available US only DT SERIES Figure 4.1 Chimney & Termination Cap Cleaning Heat & Glo • Exclaim-36/42 Owner’s Manual • 4013-267 • Rev E • 05/07/14... -
Page 16: Grate
• If the ashes are disposed of by burial in soil or otherwise locally dispersed, they should be retained in the closed container until all cinders have thoroughly cooled. F. Refractory Frequency: After each ash removal Homeowner • Inspect condition of refractory. Replace if crumbly or otherwise deteriorated, metal is exposed behind the refractory, or if cracks exceed 1/4 in. (6 mm). Heat & Glo • Exclaim-36/42 Owner’s Manual • 4013-267 • Rev E • 05/07/14... -
Page 17: Troubleshooting
Use dry, seasoned wood (refer to wood fuel section). Bed of coals not established before Start with paper & kindling to establish bed of coals (refer adding wood to starting fire section). Flue blockage such as birds’ nests Have chimney inspected for creosote and cleaned by a or leaves in termination cap certified chimney sweep. Down draft or negative pressure Do not use exhaust fans during start-up (refer to negative Competition with exhaust devices pressure section). Open window below the fireplace towards the wind. Fire burns too fast Extremely dry or soft wood Mix in hardwood. Mix in less seasoned wood after fire is established (refer to wood fuel section). No glass doors Add glass doors to slow down air flow. Overdrafting Check for correct vent height; too much vertical height creates overdrafting. Check location of vent termination (refer to chimney assembly section). Heat & Glo • Exclaim-36/42 Owner’s Manual • 4013-267 • Rev E • 05/07/14... -
Page 18: Faqs
If the fire is hard to start and smoke spills out of the fire- place, or you find it difficult to establish and maintain a moderately high burn rate, then the flue draft is too low Contact your dealer for additional informa- and corrective measures must be taken. tion regarding operation and troubleshoot- ing. Visit www.heatilator.com to find a dealer. Heat & Glo • Exclaim-36/42 Owner’s Manual • 4013-267 • Rev E • 05/07/14... - Page 19 (furnace, fan, Unsealed dryer, etc.)? can lights? Overhead fan operating? Creosote buildup in flue? Air register from furnace near fireplace? Doors opening and closing? Outside air Window closed Combustion closed? for start-up? air control Figure 5.1 Factory-built Fireplaces: Troubleshooting Heat & Glo • Exclaim-36/42 Owner’s Manual • 4013-267 • Rev E • 05/07/14...
-
Page 20: Reference Materials
Reference Materials ► A. Service Parts Heat & Glo • Exclaim-36/42 Owner’s Manual • 4013-267 • Rev E • 05/07/14... - Page 21 Heat & Glo • Exclaim-36/42 Owner’s Manual • 4013-267 • Rev E • 05/07/14...
-
Page 22: Accessories
DM6036S DM8042S Glass doors - Bi-fold, clear view, stainless steel Gas Inserts Gas Log Sets Gas Log Lighters Wood-burning Inserts See your Heat & Glo dealer for a complete listing of optional components. Heat & Glo • Exclaim-36/42 Owner’s Manual • 4013-267 • Rev E • 05/07/14... - Page 23 This page intentionally left blank. Heat & Glo • Exclaim-36/42 Owner’s Manual • 4013-267 • Rev E • 05/07/14...
-
Page 24: Contact Information
7216645, D320652, D445174, D462436; (Canada) 1297749, 2195264, 2225408, 2313972; (Australia) 780250, 780403, 1418504 or other U.S. and foreign patents pending. Printed in U.S.A. - Copyright 2012 Heat & Glo • Exclaim-36/42 Owner’s Manual • 4013-267 • Rev E • 05/07/14...
