Rear Panel Connections - Lexicon REFLEX - REV 1 User Manual

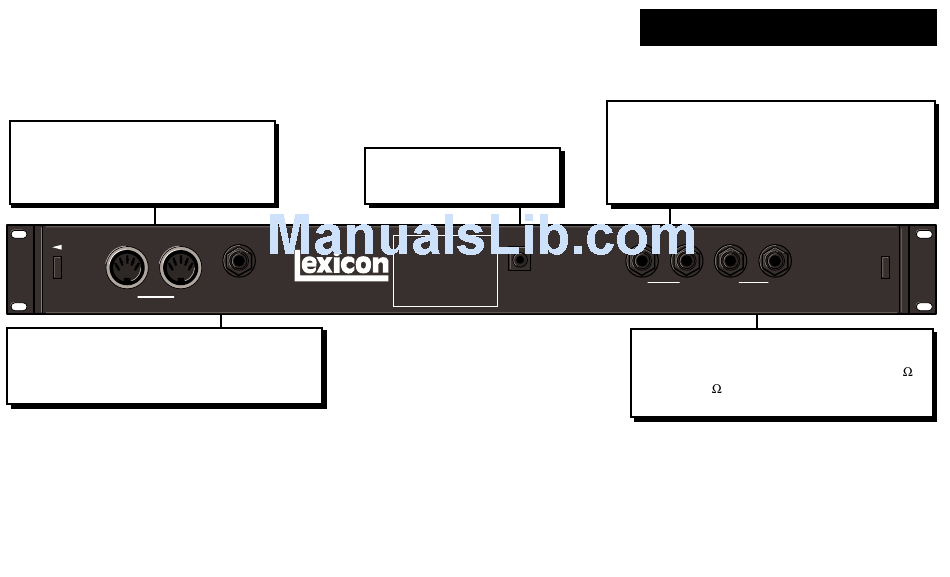

MIDI
MIDI In and Out connectors are provided.
Switching an internal jumper allows selec-
tion of MIDI THRU instead of MIDI OUT.
MIDI
REMOVE
RACK
EAR TO
ACCESS
MIDI
OUT/THRU
JUMPER
OUT/ IN
THRU
FOOTSWITCH
Tip/Ring/Sleeve phone input, for momentary or
latching contact footswitches, allows footswitch
control of Register Step and Bypass functions.
POWER
Use Lexicon MSA power pack,
or 9VAC 1 amp equivalent.
FOOTSWITCH
THIS DEVICE COMPLIES WITH PART
(2) THIS DEVICE MUST ACCEPT ANY
BYPASS :TIP
STEP :RING
MAY CAUSE UNDESIRED OPERATION.
COMMON :SLEEVE
POWER
REFLEX
15 OF THE FCC RULES.
OPERATION IS SUBJECT TO THE
LEXICON, INC.
FOLLOWING TWO CONDITIONS:
WALTHAM MA 02154
(1) THIS DEVICE MAY NOT CAUSE
MADE IN U.S.A.
HARMFUL INTERFERENCE, AND P/N 021-10203
9V~, 1A,
INTERFERENCE RECEIVED< 50-60Hz
INCLUDING INTERFERENCE THAT
SERIAL #
USE LEXICON
MSA AC ADAPTER
4

Rear Panel Connections

OUPUT
Single-ended (unbalanced) stereo outputs provide
-2dBu nominal output level. Use the right output
connector for mono output. If no connection is made
at the right output, the left output can be used to drive
high-efficiency headphones at modest volume.
OUTPUTS INPUTS
L R L R
(PHONES) (MONO) (MONO)
INPUT
Single-ended (unbalanced) inputs accept levels
as low as -30dBu. Input impedance is 50 k
stereo, 25 k in mono. Use the right for mono
input.
in
