FOOTSWITCH
TIP - BYPASS
RING - REG STEP
SLEEVE - COMMON
FOOTSWITCH
Tip/Ring/Sleeve phone input, for momentary con-
tact footswitches, allows footswitch control of Reg-
ister Step and Bypass functions.

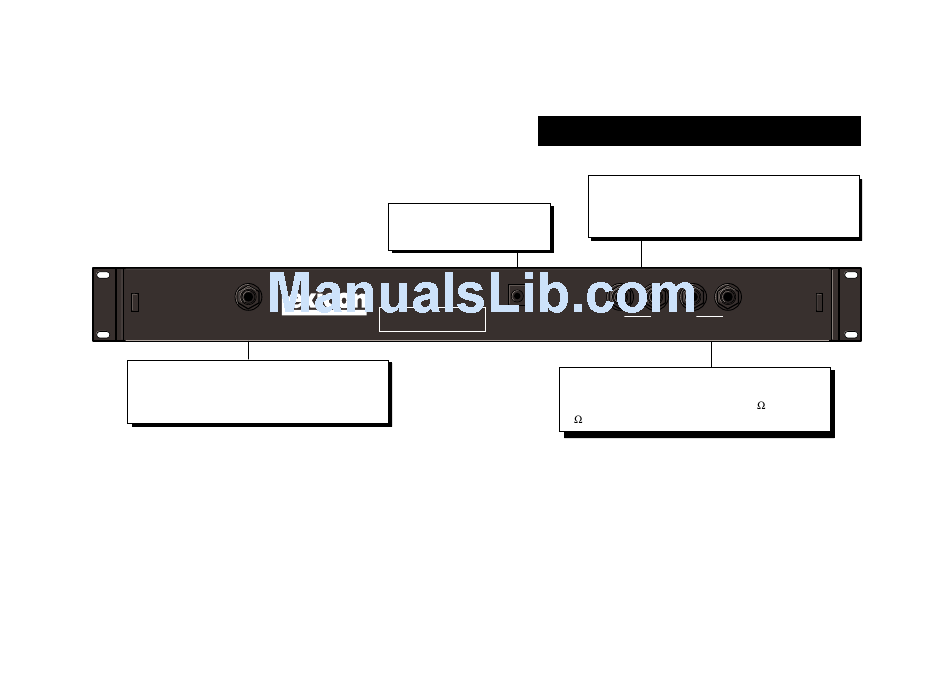

Rear Panel Connections

POWER
Use Lexicon MSA power pack,
or 9VAC 1 amp equivalent.
POWER
ALEX
LEXICON, INC.
WALTHAM MA 02154
MADE IN U.S.A.
P/N 021-09504
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions:
9V~, 1A,
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received
50-60Hz
including interference that may cause undesired operation.
SERIAL #
4
OUPUT
Single-ended (unbalanced) stereo outputs provide
-2dBu nominal output level. Use the right output
connector for mono output.
OUTPUTS INPUTS
L R L R
(MONO) (MONO)
INPUT
Single-ended (unbalanced) inputs accept levels as
low as -30dBu. Input impedance is 50 k in stereo, 25
k in mono. Use the right for mono input.
