Lexicon MV-5 Specifications page 2

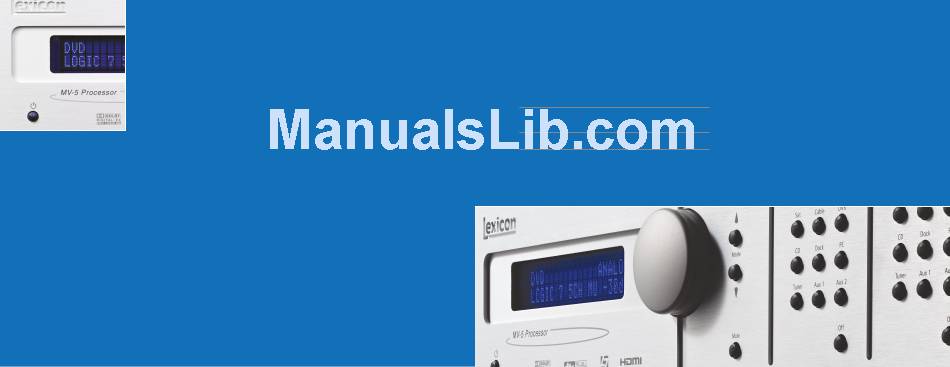

The MV-5 Processor is a landmark product for Lexicon and represents several firsts for the brand,
offering capabilities previously only available in the flagship MC-12 HD. The MV-5 also breaks new
ground with several features not currently available in other Lexicon products – all at a fraction of the
price. At its heart, the MV-5 is a multi-faceted audio and video preamplifier with built-in processing. In
addition, the MV-5 can accommodate a pair of HDMI source devices and can connect directly to a PC
via USB, enabling the control and playback of streaming audio files. With the optional dock accessory,
iPod owners can even play their iPod
Drawing from Lexicon's background and expertise, the MV-5 Processor features the latest version of
Lexicon's critically acclaimed Logic 7
been widely praised for its ability to greatly enhance the listening experience of any type of source
material – whether it is music, film, TV, or even video games. Using Logic 7 with your system means that your music sounds more natural – more
like you'd hear it at a live event; movies are more compelling, drawing you deeper into the illusion of being there; and video games put you right
in the middle of the action. There's very little that Logic 7 can't improve, and it's just one more reason why Lexicon products are considered to
be the best in the industry. The MV-5 features an automated procedure for use in speaker setup, which also performs system equalization. Most
equalization systems simply knock down the peaks in the response, but the MV-5 calibrates the system more intelligently - compensating for
frequency response aberrations and varied speaker performance, while balancing the entire system for the best overall results. In addition, the MV-5
is capable of storing different calibrations, so up to three different listening positions can be recalled at the touch of a button. The end result is a
system that optimizes the sound quality where it counts the most – at your seat!
The MV-5 is the first Lexicon processor to feature integrated Faroudja ® video processing technology. With this superior video capability, the MV-5
can take any incoming video format and up-convert it to HDMI output, so a single HDMI cable can be utilized between the MV-5 and the video
display. The MV-5 can also scale the video to 720p or 1080i output resolution for improved video performance from standard definition sources. In
addition, the MV-5 has two menu pages, per input, devoted solely to advanced user-adjustable video processing features such as Faroudja's DCDi
designed to smooth out the jagged edges caused when video is de-interlaced. Film mode detection, another option, automatically identifies film
sources and restores the proper frame sequence, and the noise reduction option helps to minimize the noise often contained within analog video
signals. Also included are basics such as brightness, sharpness, and contrast.
music through the MV-5.
®
®
decoding. The calling card of all Lexicon processors, Logic 7 has
®
,
MAIN ZONE & ZONE 2 AUDIO PERFORMANCE CONT.
24-bit, 96 kHz, dual-bit ΔΣ
A/D conversion
24-bit, 44.1 to 192 kHz, multi-bit ΔΣ
D/A conversion
Input Sensitivity 200 mV for Analog 1 to 6, and 200 mV for 8ch input
2 Vrms max input level
Input Impedance 98.5 kΩ for Analog 1 to 6, and 32 kΩ for 8-channel input
GENERAL
Power Requirements 90-250 VAC, 50-60Hz, 50W (Univesal line input)
Power Consumption 4.0W at Power on, idle
50W Max.
Dimensions Height (with feet): 5.0 inches (127 mm)
Height (without feet): 4.3 inches (109 mm)
Width 16.8 inches (426 mm)
Depth* 16.7 inches (423 mm)
*Depth measurement includes knobs, buttons,
and terminal connections.
Weight Net Weight: 17.6 lb (8 kg)
Gross Weight: 26.5 lb (12 kg)
Rack-Mounting Lexicon built rack mount kit not available.
Please seek alternative.
Operating Environment Operating temperature: 0 to 45 C (32 to 113 F)
Storage temperature: -20 to 60 C (-4 to 140 F)
Relative humidity: 93% max without condensation
Remote Control Hand-held, back-lit, IR/RF** pre-programmed and learning
remote control (requires 4 AAA batteries – included)
**For use with optional R-I receiver.
Specifications subject to change without notice.
