Install Coreboot on a Nokia IP530 HOWTO.

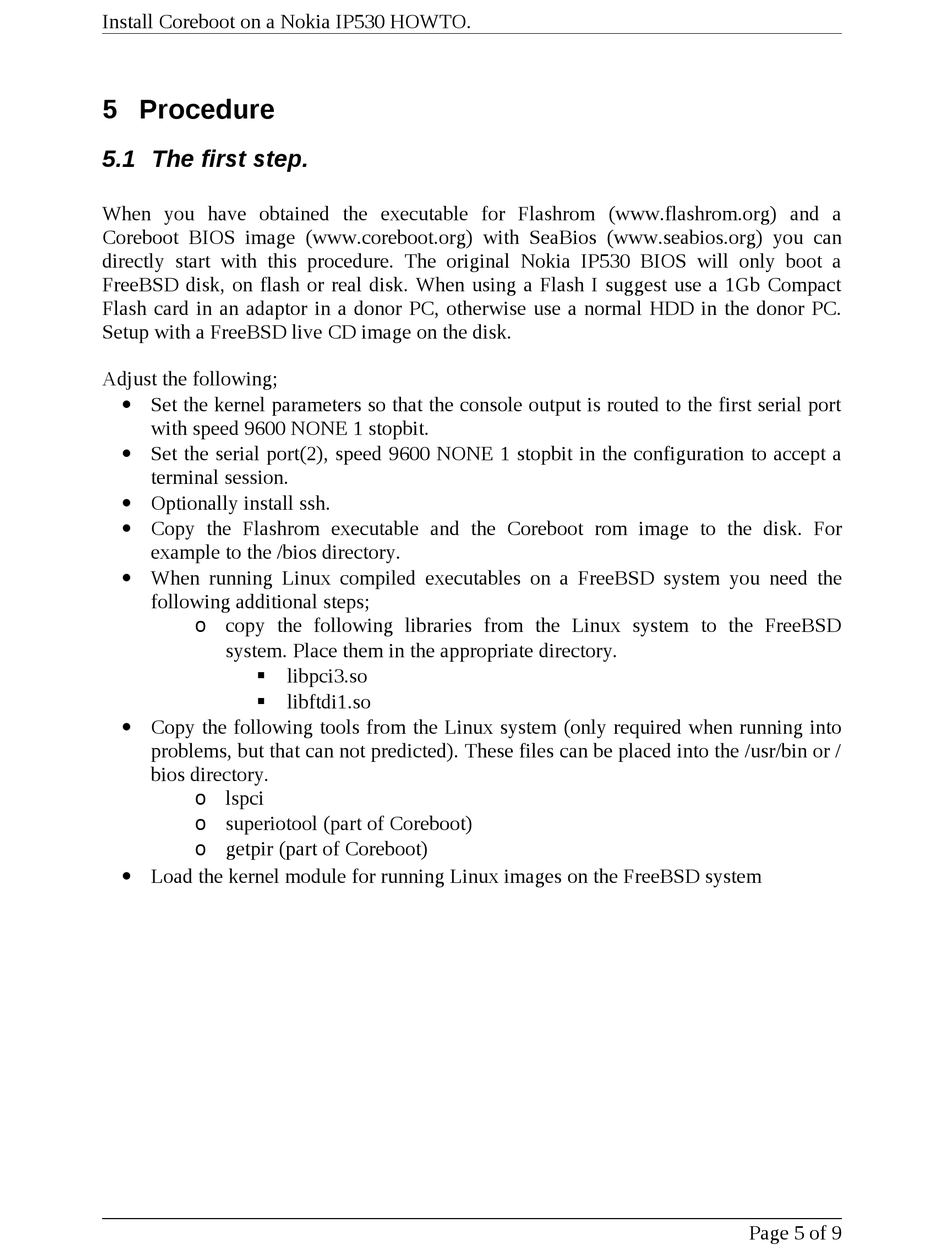

5 Procedure

When you have obtained the executable for Flashrom (www.flashrom.org) and a

Coreboot BIOS image (www.coreboot.org) with SeaBios (www.seabios.org) you can

directly start with this procedure. The original Nokia IP530 BIOS will only boot a

FreeBSD disk, on flash or real disk. When using a Flash I suggest use a 1Gb Compact

Flash card in an adaptor in a donor PC, otherwise use a normal HDD in the donor PC.

Setup with a FreeBSD live CD image on the disk.

Adjust the following;

Set the kernel parameters so that the console output is routed to the first serial port

with speed 9600 NONE 1 stopbit.

Set the serial port(2), speed 9600 NONE 1 stopbit in the configuration to accept a

terminal session.

Optionally install ssh.

Copy the Flashrom executable and the Coreboot rom image to the disk. For

example to the /bios directory.

When running Linux compiled executables on a FreeBSD system you need the

following additional steps;

o copy the following libraries from the Linux system to the FreeBSD

system. Place them in the appropriate directory.

 libpci3.so

 libftdi1.so

Copy the following tools from the Linux system (only required when running into

problems, but that can not predicted). These files can be placed into the /usr/bin or /

bios directory.

o lspci

o superiotool (part of Coreboot)

o getpir (part of Coreboot)

Load the kernel module for running Linux images on the FreeBSD system

Page 5 of 9
