Installation & Operating Manual

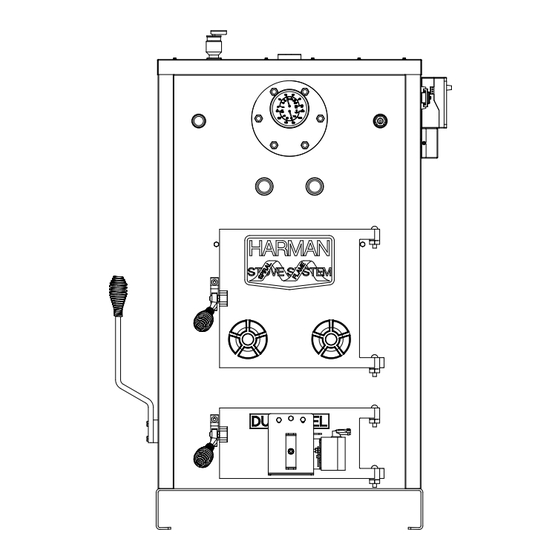

Trident Boilers: SF160, SF260, SF360
Portland
"Ce manuel est disponible en Français sur demande"
SAFETY NOTICE
PLEASE READ THIS ENTIRE MANUAL BEFORE YOU INSTALL AND/OR USE YOUR NEW BOILER. FAILURE TO
FOLLOW INSTRUCTIONS MAY RESULT IN PROPERTY DAMAGE, BODILY INJURY, OR EVEN DEATH.
IF THIS HARMAN BOILER IS NOT PROPERLY INSTALLED, A HOUSE FIRE MAY RESULT. FOR YOUR SAFETY,
FOLLOW INSTALLATION DIRECTIONS.
CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS AND INSTALLATION INSPECTION
REQUIREMENTS IN YOUR AREA.
CONTACT YOUR LOCAL AUTHORITY (SUCH AS MUNICIPAL BUILDING DEPARTMENT, FIRE DEPARTMENT, FIRE
PREVENTION BUREAU, ETC.) TO DETERMINE THE NEED FOR A PERMIT.
SAVE THESE INSTRUCTIONS
3-90-70742R11_05/13
Advertisement
Table of Contents
Related Manuals for Harman Trident SF360
Summary of Contents for Harman Trident SF360
- Page 1 PLEASE READ THIS ENTIRE MANUAL BEFORE YOU INSTALL AND/OR USE YOUR NEW BOILER. FAILURE TO FOLLOW INSTRUCTIONS MAY RESULT IN PROPERTY DAMAGE, BODILY INJURY, OR EVEN DEATH. IF THIS HARMAN BOILER IS NOT PROPERLY INSTALLED, A HOUSE FIRE MAY RESULT. FOR YOUR SAFETY, FOLLOW INSTALLATION DIRECTIONS.
-
Page 3: Table Of Contents
The Harman® Trident Boilers are designed to operate safe, easy and automatically. You may however, need to learn a few basic skills to maintain a fire. Especially if this is your first venture into solid fuel burning. If you have any problems, re-read these instructions. -
Page 4: Packing List
Packing List Items needed for assembly and installation. Please notify your Harman® Dealer if you are missing any items. Included with Boiler: --shaker Handle --ash Pan --Warranty Registration form Items In Boiler Kit # 1-00-01020: (Sold Separately) --Johnson Controls aquastat - (3) pieces; a350 Controller w/ sensor wire... -
Page 5: Installation
Installation Getting Started Pressure Relief Valve Domestic Hot The sheet metal sides and top are easily removed to reduce Water Coil Option the chance of dents and/or scratches in the finish. simply Temp/Pressure lift the top off, and that will allow the sides to be pulled away Gauge and up, for removal. -
Page 6: Wiring
Installation Bolt the automatic Draft Control through the 1/2 in. hole Aquastat Installation in the center of the bottom door. Be sure to hold the Draft (See optional items, page 7) lay the din rail on a flat Control straight while tightening. feed the two wires from surface, with the flat side down. -
Page 7: Venting
15°, using the temperatures above, the circuit would re- open, stopping the overheat dump at a water temperature The Harman® Trident Boiler must be installed into a chimney of 185°. The 120V wiring is attached on the normally open approved for solid fuel burning appliances. In the U.s., the and the common position. -
Page 8: Plumbing
Plumbing roof, it must also extend 2 feet (0.6m) above the highest The Harman® Trident Boiler can be used as a “stand alone” point within a 10 ft. (3m) radius. boiler or as an add-on to an existing hot water heating system. - Page 9 “close on rise of temperature” (jumper in cooling position). Harman® that 1-1/4 in. pipe be used between the two boilers. also recommended is that the first section of pipe off of the top of the Trident Boiler be threaded galvanized or threaded black-steel pipe.
-
Page 10: Starting A Wood Fire
Operation Automatic Draft Control Starting a Wood Fire The heat output is regulated by the automatic draft control Make sure the boiler and all piping is full of water and that on the bottom door. The electric motor (a) opens and closes all air has been purged from the system. -
Page 11: Starting A Coal Fire
Operation Starting a Coal Fire Loading Make sure the boiler and all piping is full of water and that Coal should never be added unless there is a reasonably all air has been purged from the system. hot fire. The coal bed should be bright and vigorous. If you have an active coal bed, full loads can be added at any Never start a fire without water in the system. -
Page 12: Safety Tips
Improperly sized chimney or stovepipe. closed. Chimney may be blocked with creosote or bird nests or Never install a Harman® Trident Boiler into a chimney similar obstructions. with a history of down-drafts. Cracked or defective chimney flue or liner. -
Page 13: Maintenance
If a brick is broken, and has fallen out of place, it should be replaced before any further burning occurs. The firebricks used in the Trident Boiler are available for replacement from your Harman® dealer. -
Page 14: Warranty
Warranty Hearth & Home Technologies LIMITED LIFETIME WARRANTY Hearth & Home Technologies, on behalf of its hearth brands (”HHT”), extends the following warranty for HHT gas, wood, pellet, coal and electric hearth appliances that are purchased from an HHT authorized dealer. WARRANTY COVERAGE: HHT warrants to the original owner of the HHT appliance at the site of installation, and to any transferee taking ownership of the appliance at the site of installation within two years following the date of original purchase, that the HHT appliance... - Page 15 Warranty WARRANTY CONDITIONS: • This warranty only covers HHT appliances that are purchased through an HHT authorized dealer or distributor. a list of HHT authorized dealers is available on the HHT branded websites. • This warranty is only valid while the HHT appliance remains at the site of original installation. •...
- Page 16 Notes 3-90-70742R11_05/13...
- Page 17 Service & Maintenance Log Date Of Service Performed By Description Of Service 3-90-70742R11_05/13...
-
Page 18: Service Parts
SF160 Service Parts Wood, Coal fi red Boiler Beginning Manufacturing Date: N/A Ending Manufacturing Date: Active 1-70-03233 IMPORTanT: THIs Is DaTED InfORMaTIOn. When requesting service or replacement Stocked parts for your appliance please provide model number and serial number. all parts listed in this manual may be ordered from an authorized dealer. - Page 19 SF160 Service Parts Beginning Manufacturing Date: N/A Ending Manufacturing Date: Active IMPORTanT: THIs Is DaTED InfORMaTIOn. When requesting service or replacement Stocked parts for your appliance please provide model number and serial number. all parts listed in this manual may be ordered from an authorized dealer.
- Page 20 SF260 Service Parts Beginning Manufacturing Date: N/A Wood, Coal fi red Boiler Appliance Ending Manufacturing Date: Active 1-70-03236 IMPORTanT: THIs Is DaTED InfORMaTIOn. When requesting service or replacement Stocked parts for your appliance please provide model number and serial number. all parts listed in this manual may be ordered from an authorized dealer.
- Page 21 SF260 Service Parts Beginning Manufacturing Date: N/A Ending Manufacturing Date: Active IMPORTanT: THIs Is DaTED InfORMaTIOn. When requesting service or replacement Stocked parts for your appliance please provide model number and serial number. all parts listed in this manual may be ordered from an authorized dealer. at Depot ITEM DESCRIPTION...
- Page 22 SF360 Service Parts Wood, Coal Fired Boiler Beginning Manufacturing Date: N/A Ending Manufacturing Date: Active 1-70-03239 IMPORTanT: THIs Is DaTED InfORMaTIOn. When requesting service or replacement Stocked parts for your appliance please provide model number and serial number. all parts listed in this manual may be ordered from an authorized dealer.
- Page 23 SF360 Service Parts Beginning Manufacturing Date: N/A Ending Manufacturing Date: Active IMPORTanT: THIs Is DaTED InfORMaTIOn. When requesting service or replacement Stocked parts for your appliance please provide model number and serial number. all parts listed in this manual may be ordered from an authorized dealer. at Depot ITEM DESCRIPTION...
- Page 24 At Harman®, we build each product to a standard, not a price. (Signature of Boxer) Your premium quality hearth product designed and assembled by the experienced and skilled members at Harman® in Halifax, PA, USA. Proudly Printed On 100% Recycled Paper...
