Simrad 18-11 - DATASHEET REV C Datasheet

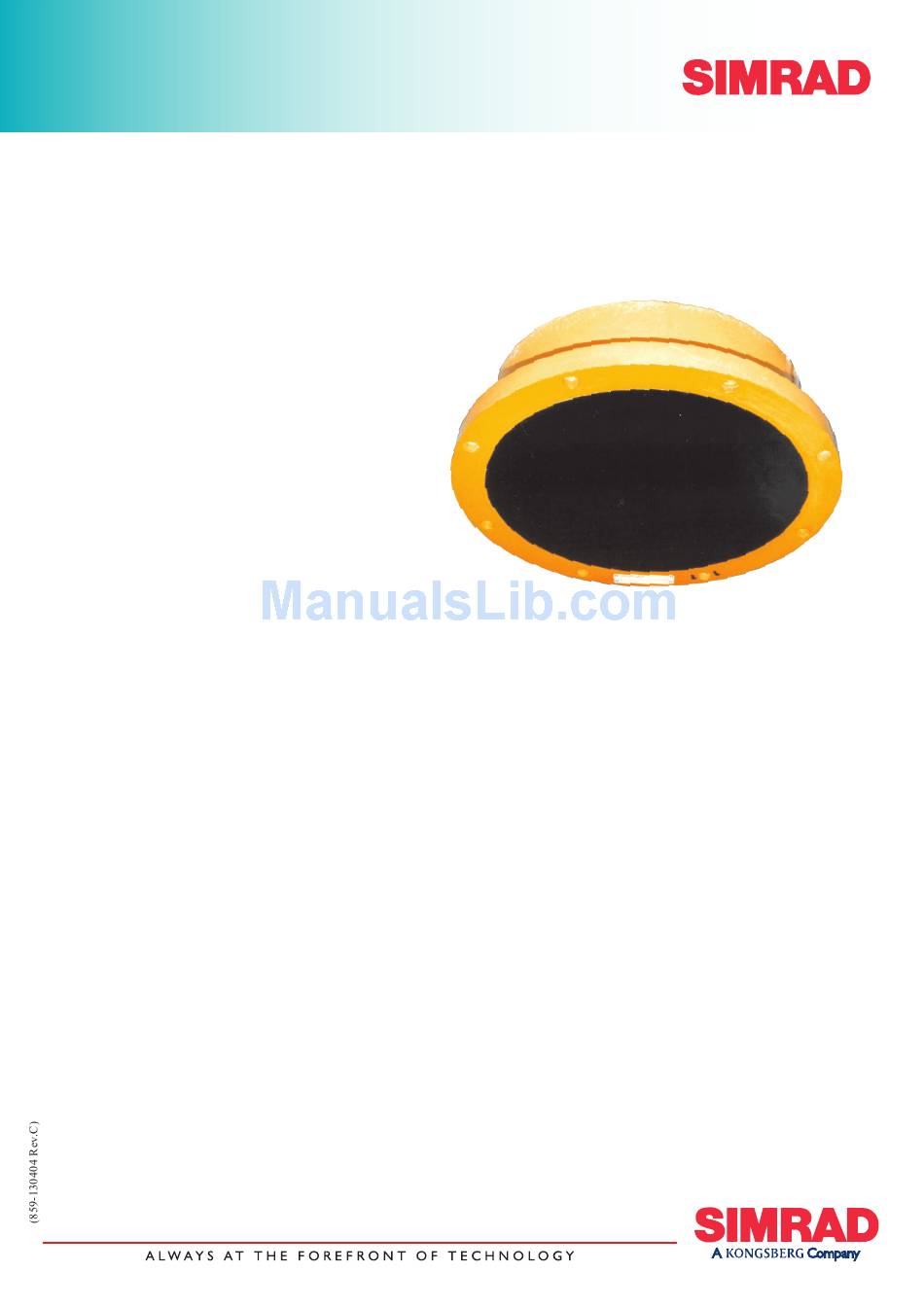

TRANSDUCER
Simrad 18-11
18 kHz single-beam transducer
for large depths
Introduction
The 18-11 is a large, single-beam transducer with a
relatively narrow beam. It is ideal for use in ocean
depth measurement to a maximum depth of 7000 m.
Order number
KSV-088693
Technical specication
Resonant frequency.........................................18 kHz
Circular beamwidth.....................................11 ±2 deg
Directivity:
D .......................................................... 300 ±20 %
DI=10 log D ...........................................25 ±1 dB
Equivalent two-way beam angle:
ψ ....................................................... 0.020 ±20 %
10 log ψ ............................................... -17 ±1 dB
Side lobes ..........................................less than -18 dB
Back radiation ...................................less than -35 dB
Impedance:
Nominal value .......................................... 60 ohm
Max. variation in |Z| ........................ 45 to 80 ohm
Max. variation phase angle.......................±30 deg
Transmitting response ................................176 ±2 dB
Receiving sensitivity, open circuit ........... -168 ±2 dB
Electroacoustic efciency ......................... 0.60 ±0.20
Maximum pulse power input .........................2000 W
Maximum continuous power input ..................100 W
Maximum transducer depth ............................... 50 m
Cable length ....................................................... 20 m
Cable diameter ................................................ 11 mm
Weight without cable .........................................85 kg
Storage temperature ..............................+70 to -20 °C
(dB re 1µPa per V)
(dB re 1V per µPa)
