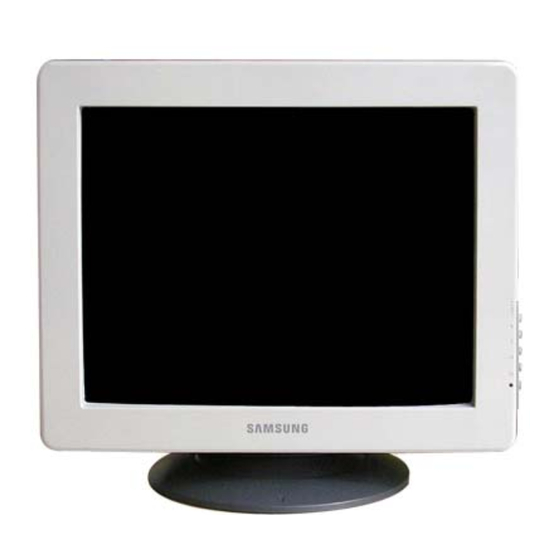

Samsung SyncMaster 794S Owner's Manual
  1. Manuals
  2. Brands
  3. Samsung Manuals
  4. Monitor
  5. SyncMaster 794S
  6. Owner's manual

Samsung SyncMaster 794S Owner's Manual

Samsung monitor owner's manual
Hide thumbs Also See for SyncMaster 794S:

Advertisement

Quick Links

Download this manual See also: Manual Del Usuario
SyncMaster 592V/592S/794V/794S
Install drivers
Install programs

Advertisement

loading
Need help?

Need help?

Do you have a question about the SyncMaster 794S and is the answer not in the manual?

Questions and answers

Related Manuals for Samsung SyncMaster 794S

Summary of Contents for Samsung SyncMaster 794S

  • Page 1 SyncMaster 592V/592S/794V/794S Install drivers Install programs...
  • Page 2 Notational Failure to follow directions noted by this symbol could result in bodily harm or damage to equipment. Prohibited Do not disassemble Do not touch Power When not used for extended periods of time, set your computer to a screen saver.
  • Page 3 Do not use a damaged or loose plug. This may cause an electric shock or fire. Do not pull the plug out by the wire nor touch the plug with wet hands. This may cause an electric shock or fire. Use only a properly grounded plug and receptacle.
  • Page 4 Installation Be sure to contact an authorized location with heavy dust, high or low temperatures, high humidity, and chemical substances, or where it will be operated for 24 hours continuously such as an airport, train station or etc. Failure to do so may cause serious damage to your set. Put your monitor in a location with low humidity and a minimum of dust.
  • Page 5 Set down the monitor carefully. The monitor could be damaged or broken. Do not place the monitor face down. The CDT surface may be damaged. Do not use the monitor without the monitor stand. It could break down or cause fire due to bad ventilation. If the monitor must be used without the supplied stand, take steps to insure proper ventilation.
  • Page 6 Do not spray water or detergent directly on the monitor. This may cause damage, electric shock or fire. Use the recommended detergent with a smooth cloth. You may prevent the coated CDT from being damaged or the monitor cabinet from being dissolved, cracked or discolored. You may buy a recommended detergent at any Service Center.
  • Page 7 This may cause an electric shock or fire. Keep the product away from places exposed to oil, smoke or moisture; do not install inside a vehicle. This may cause malfunction, an electric shock or fire. Especially avoid operating the monitor near water or outdoors where the monitor could be exposed to snow or rain.
  • Page 8 Keep the product away from combustible chemical sprays or inflammable substances. This may cause an explosion or fire. Never insert anything metallic into the monitor openings. This may cause an electric shock, fire or injury. Keep the monitor away from any magnetic substances. This may cause discoloring or distortion of the image.
  • Page 9 Do not place children's favorite objects (or anything else that may be tempting) on the product. Children may try to climb on the product to retrieve an object. The product could fall, causing physical damage or even death.
  • Page 10 Please make sure the following items are included with your monitor. If any items are missing, contact your dealer. Contact a local dealer to buy optional items. Unpacking Monitor and Stand (Some models include a stand attached.) Manual User's Guide, Warranty Card Monitor Driver, (Not available in all...
  • Page 11 Cable Power Cord Stand Stand Front Menu button [ Adjust buttons [ Enter button [ ] Power button [ ] Power indicator Opens the OSD menu. Also used to exit the OSD menu or return to the previous menu. These buttons allow you to highlight and adjust items in the menu.
  • Page 12 PowerSaver described in the manual for further information regarding power saving functions. For energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for long periods. Rear (The configuration at the back of the monitor may vary from product to product.) Power port Signal Cable Connecting the Monitor...
  • Page 13 Tilt/Swivel Base You can separate the base from the monitor.
  • Page 14 Connecting the Monitor Connect the power cord for your monitor to the power port on the back of the monitor. Plug the power cord for the monitor into a nearby outlet. Connecting to a computer 2-1. Connect the signal cable to the 15-pin, D-Sub connector on the back of your computer. Connecting to a new Macintosh 2-2.
  • Page 15 Base Installation Tilt/Swivel Base With the built-in pedestal, you can tilt and/or swivel the monitor for the most comfortable viewing angle. The base is detachable. Attaching and Removing the Base If your monitor was supplied with the base detached, attach the base as follows. Remove the twist-tie before attaching the base to the monitor.
  • Page 16 Follow the directions appropriate for the operating system you have. Prepare a blank disk and download the driver program file at the Internet web site shown here. Internet web site : http://www.samsung.com/ http://www.samsung.com/monitor http://www.sec.co.kr/monitor http://www.samsungmonitor.com.cn/ Windows ME 1.
  • Page 17 4. If you can see following message window, then click the "Continue Anyway" button. Then click "OK" button. This monitor driver is under certified MS logo and this installation doesn't damage your system. The certified driver will be posted on Samsung Monitor homepage. http://www.samsung.com/.

  • Page 18: Windows Xp Operating System

    Follow the directions appropriate for the operating system you have. Prepare a blank disk and download the driver program file at the Internet web site shown here. Internet web site : http://www.samsung.com/ http://www.samsung.com/monitor http://www.sec.co.kr/monitor http://www.samsungmonitor.com.cn/ ® ®...
  • Page 19 5. Click " Update Driver.. " and select " Install from a list or.. " then click " Next " button. 6. Select " Don't search ,I will.. " then click " Next " and then click " Have disk ". 7.

  • Page 20: Microsoft ® Windows ® 2000 Operating System

    This monitor driver is under certified MS logo and this installation doesn't damage your system. The certified driver will be posted on Samsung Monitor homepage. http://www.samsung.com/. 9. Click the " Close " button, then click " OK " button continually.
  • Page 21 If you can see the " Digital Signature Not Found " window then click the " Yes "button. And click the " Finish " button then the " Close " button. ® ® Microsoft Windows Millennium Operating System 1. Click " Start " , " Setting " , " Control Panel ". 2.
  • Page 22 Samsung Electronics in association with Korea Electronics & Telecommunications Research Institute (ETRI). This system is available only for Samsung monitors and makes the color of the images on the monitor the same as the printed or scanned images.
  • Page 23 Opens the OSD menu. Also use to exit the OSD menu or return to the previous menu. These buttons allow you to highlight and adjust items in the menu. Use to select the OSD menu. Brightness SyncMaster 592V/592S...
  • Page 24 Menu When OSD is not on the screen, push the button to adjust brightness. Contrast Menu When OSD is not on the screen, push the button to adjust Contrast. Select an icon that you want to know from the OSD menu to display a text or animation explanation of that icon.
  • Page 25 Menu Description Play/Stop You can use the on-screen menus to change the brightness according to personal preference. Direct Access Feature : When OSD is not on the screen, push the button to adjust brightness. You can use the on-screen menus to change the contrast according to personal preference.
  • Page 26 Menu Color temperature is a measure of the 'warmth' of the image colors. (6500K / 9300K) Use to adjust the monitor color setting.(Red) Use to adjust the monitor color setting.(Green) Use to adjust the monitor color setting.(Blue) Standard Red Green Blue (sRGB) is a defined default color space.
  • Page 27 monitor's entire display. Follow these instructions to change the horizontal size of the monitor's entire display. Follow these instructions to change the vertical size of the monitor's entire display. Adjust the pincushion setting when the sides of the display are bowed in or bowed out. Adjust the pinbalance setting when the sides of the display are bowed towards the left or right.
  • Page 28 Opens the OSD menu. Also use to exit the OSD menu or return to the previous menu. These buttons allow you to highlight and adjust items in the menu. Use to select the OSD menu. Brightness SyncMaster 794V/794S...
  • Page 29 Menu When OSD is not on the screen, push the button to adjust brightness. Contrast Menu When OSD is not on the screen, push the button to adjust Contrast. Select an icon that you want to know from the OSD menu to display a text or animation explanation of that icon.
  • Page 30 Menu Description Play/Stop You can use the on-screen menus to change the brightness according to personal preference. Direct Access Feature : When OSD is not on the screen, push the button to adjust brightness. You can use the on-screen menus to change the contrast according to personal preference.
  • Page 31 Menu Color temperature is a measure of the 'warmth' of the image colors. (6500K / 9300K) Use to adjust the monitor color setting.(Red) Use to adjust the monitor color setting.(Green) Use to adjust the monitor color setting.(Blue) Standard Red Green Blue (sRGB) is a defined default color space.
  • Page 32 monitor's entire display. Follow these instructions to change the horizontal size of the monitor's entire display. Follow these instructions to change the vertical size of the monitor's entire display. Adjust the pincushion setting when the sides of the display are bowed in or bowed out. Adjust the pinbalance setting when the sides of the display are bowed towards the left or right.
  • Page 33 Before calling for service, check the information in this section to see if you can remedy any problems yourself. If you do need assistance, please call Information section or contact your Symptom No images on the screen. I Is the power cord connected cannot turn on the monitor.
  • Page 34 voltage wire near by? Is the voltage stable? The screen image can also appear to shake or vibrate if there is a problem with the video card or the computer's main board. The screen shows strange Is the screen displaying only colors or just black and one color as if looking at the white.
  • Page 35 4. Check if the scanning ratio of the video screen is set at 50Hz ~ 120 Hz. (Do not exceed 85 Hz when using the maximum resolution.) 5. If you have problems in installing the adapter (video) driver, boot the computer in Safe Mode, remove the Display Adapter at the "...
  • Page 36 This box appears during normal operation if the video cable becomes disconnected or damaged. 4. Turn off your monitor and reconnect the video cable; then turn on both your computer and the monitor. If your monitor screen remains blank after using the previous procedure, check your video controller and computer system;...
  • Page 37 Before calling for service, check the information in this section to see if you can remedy any problems yourself. If you do need assistance, please call Information section or contact your Symptom No images on the screen. I Is the power cord connected cannot turn on the monitor.
  • Page 38 voltage wire near by? Is the voltage stable? The screen image can also appear to shake or vibrate if there is a problem with the video card or the computer's main board. The screen shows strange Is the screen displaying only colors or just black and one color as if looking at the white.
  • Page 39 4. Check if the scanning ratio of the video screen is set at 50Hz ~ 160 Hz. (Do not exceed 60 Hz when using the maximum resolution.) 5. If you have problems in installing the adapter (video) driver, boot the computer in Safe Mode, remove the Display Adapter at the "...
  • Page 40 This box appears during normal operation if the video cable becomes disconnected or damaged. 4. Turn off your monitor and reconnect the video cable; then turn on both your computer and the monitor. If your monitor screen remains blank after using the previous procedure, check your video controller and computer system;...
  • Page 41 General General Model Name SyncMaster 592V Picture Tube Type 15" (38.1 cm) FST Deflection angle 90 ° Dot Pitch 0.24 mm (Horizontal) Screen type Aluminized tri-color phosphor dot trio with black matrix. Anti-doming invar shadow mask. Glare or ESF. Resolution Optimum resolution 800 x 600 @ 85 Hz Maximum resolution...

  • Page 42: Environmental Considerations

    Power Consumption Less than 55 W Dimensions (WxDxH) 361 x 376 x 290 mm / 14.2 x 14.8 x 11.4 inch (After installation of Stand) Weight 11.5 kg Environmental considerations Operating Temperature 32°F ~ 104°F(0°C ~ 40°C) Humidity 10% ~ 80%, non-condensing Storage Temperature -4°F ~113°F (-20°C ~ 45°C) Humidity 5% ~ 95%, non-condensing...
  • Page 43 Horizontal Frequency The time to scan one line connecting the right edge to the left edge of the screen horizontally is called Horizontal Cycle and the inverse number of the Horizontal Cycle is called Horizontal Frequency. Unit: Vertical Frequency Like a fluorescent lamp, the screen has to repeat the same image many times per second to display an image to the user.
  • Page 44 General General Model Name SyncMaster 794V Picture Tube Type 17" (43 cm) FST Deflection angle 90 ° Dot Pitch 0.23 mm (Horizontal) Screen type Aluminized tri-color phosphor dot trio with black matrix. Anti-doming invar shadow mask. Multi-layer coated with anti-static. Resolution Optimum resolution 1024 x 768 @ 85 Hz...
  • Page 45 Power Consumption Less than 70 W Dimensions (WxDxH) 401 x 410 x 323 mm / 15.8 x 16.1 x 12.7 inch (After installation of Stand) Weight 15.0 kg Environmental considerations Operating Temperature 32°F ~ 104°F(0°C ~ 40°C) Humidity 10% ~ 80%, non-condensing Storage Temperature -4°F ~113°F (-20°C ~ 45°C) Humidity 5% ~ 95%, non-condensing...
  • Page 46 Horizontal Frequency The time to scan one line connecting the right edge to the left edge of the screen horizontally is called Horizontal Cycle and the inverse number of the Horizontal Cycle is called Horizontal Frequency. Unit: Vertical Frequency Like a fluorescent lamp, the screen has to repeat the same image many times per second to display an image to the user.
  • Page 47 Contact SAMSUNG WORLD-WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. CANADA 1-800-SAMSUNG (7267864) MEXICO 01-800-SAMSUNG (7267864) U.S.A 1-800-SAMSUNG (7267864) ARGENTINE 0800-333-3733 BRAZIL 0800-124-421 CHILE 800-726-7864 (SAMSUNG) COSTA RICA 0-800-507-7267...
  • Page 48 JAPAN 0120-327-527 MALAYSIA 1800-88-9999 PHILIPPINES 1800-10-SAMSUNG (7267864) SINGAPORE 1800-SAMSUNG (7267864) THAILAND 1800-29-3232, 02-689-3232 TAIWAN 0800-329-999 VIETNAM 1 800 588 889 SOUTH AFRICA 0860 7267864 (SAMSUNG) U.A.E 800SAMSUNG (7267864) http://www.samsung.com/cz http://www.samsung.com/dk http://www.samsung.com/fi http://www.samsung.com/fr http://www.samsung.de http://www.samsung.com/hu http://www.samsung.com/it http://www.samsung.lu http://www.samsung.com/nl http://www.samsung.com/no http://www.samsung.com/pl http://www.samsung.com/pt http://www.samsung.com/sk...
  • Page 49 Reproduction in any manner whatsoever without the written permission of Samsung Electronics Co., Ltd. is strictly forbidden. Samsung Electronics Co., Ltd. shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.
  • Page 50 MÉXICO IMPORTADO POR: SAMSUNG ELECTRONICS MÉXICO. S.A. de C.V. Vía Lopez Portillo No. 6, Col. San Fco. Chilpan Tultitlán, Estado de México, C.P. 54940 Tel: 01-55-5747-5100 / 01-800-726-7864 EXPORTADO POR: Samsung Electronics CO.,LTD. 416, Mae tan-3dong, Yeongtong - gu, Suwon City, Gyeonggi-do Korea...

  • Page 51: Correct Disposal Of This Product (Waste Electrical & Electronic Equipment) - Europe Only

    Correct Disposal of This Product (Waste Electrical & Electronic Equipment) - Europe only (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life.
