Delta KFB1724EHS Specification Sheet

Bearing Type
*
Ball Bearings
Material
*
Impeller : Plastic (UL 94V-0)
*
Pillow :Die-Cast Aluminum
*
Lead Wires :
UL 1430 AWG #22 OR Equivalent
Red Wire Positive (+)
Black Wire Negative (-)
Weight : 620g (21.87 oz)
*
MODEL
PART NO. FUNCTION
KFB1724SHS -R00 / -F00
KFB1748SHS -R00 / -F00
KFB1724EHS -R00 / -F00
KFB1748EHS -R00 / -F00
* Function type is optional.
* The max. air flow and the speed are measured in free air ; max. air pressure is measured at zero air flow.
* Noise is measured in anechoic chamber in free air, one meter from intake side.
* All readings are typical values at rated voltage.
* Specifications are subject to change without notice.
KFB

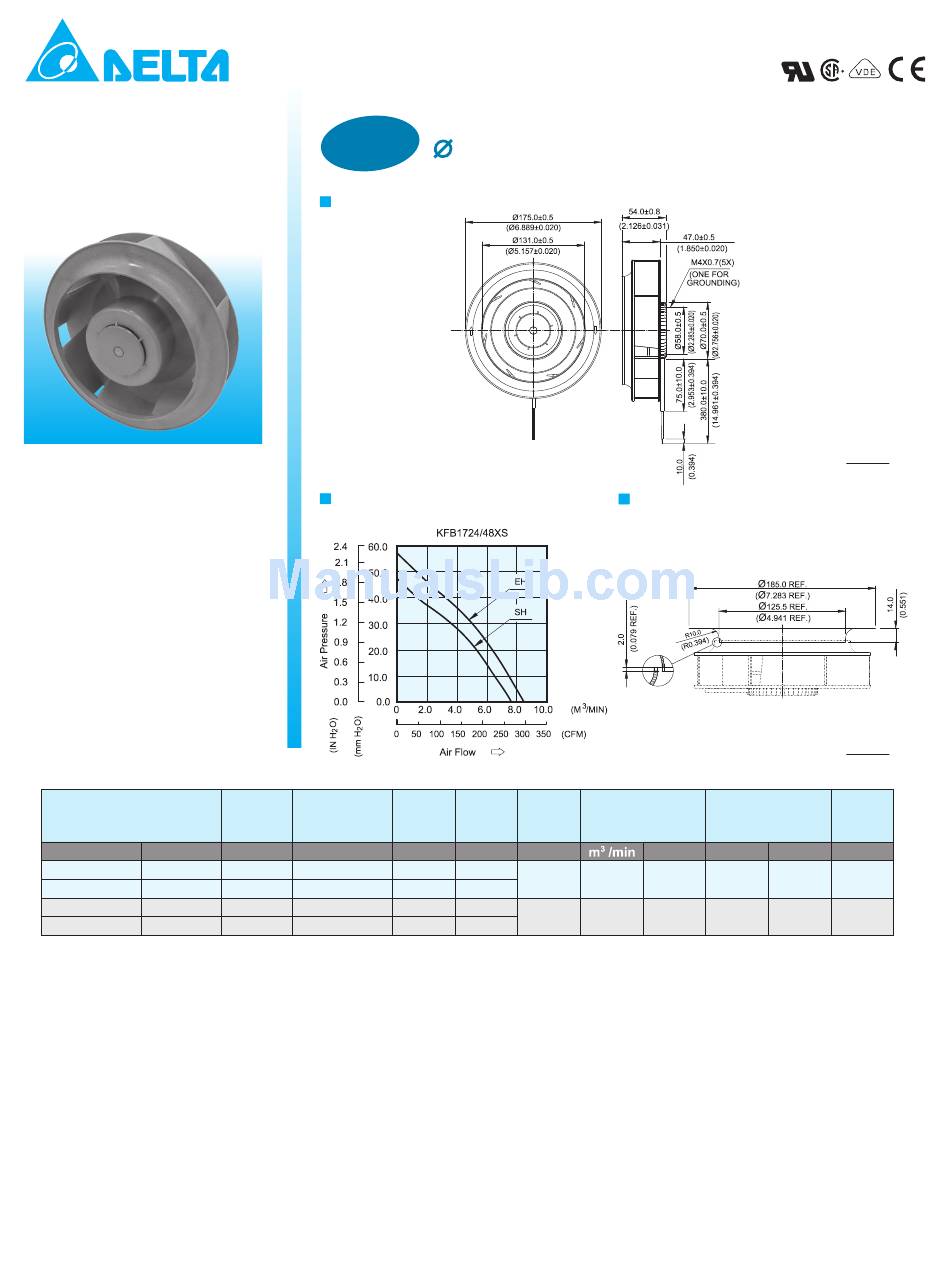

DIMENSIONS DRAWING
P & Q CURVE
Operating
Rated Input
Voltage
Voltage Current
Range
VDC VDC Amp
24 14.0 to 30.0 1.65
48 28.0 to 60.0 0.80
24 14.0 to 30.0 2.30
48 28.0 to 60.0 1.15
175 x 54 MM SERIES
(AT RATED VOLTAGE)
Input Maximum
Speed
Power Air Flow
Watt R.P.M.
39.60
3800 7.584
38.40
55.20
4200 8.421
55.20
125
UNIT:
MOUNTING PANEL CUTOUT
UNIT:
Maximum
Air Pressure
CFM mmH O IN H O
2 2
267.84 47.21 1.859
297.39 56.96 2.361
