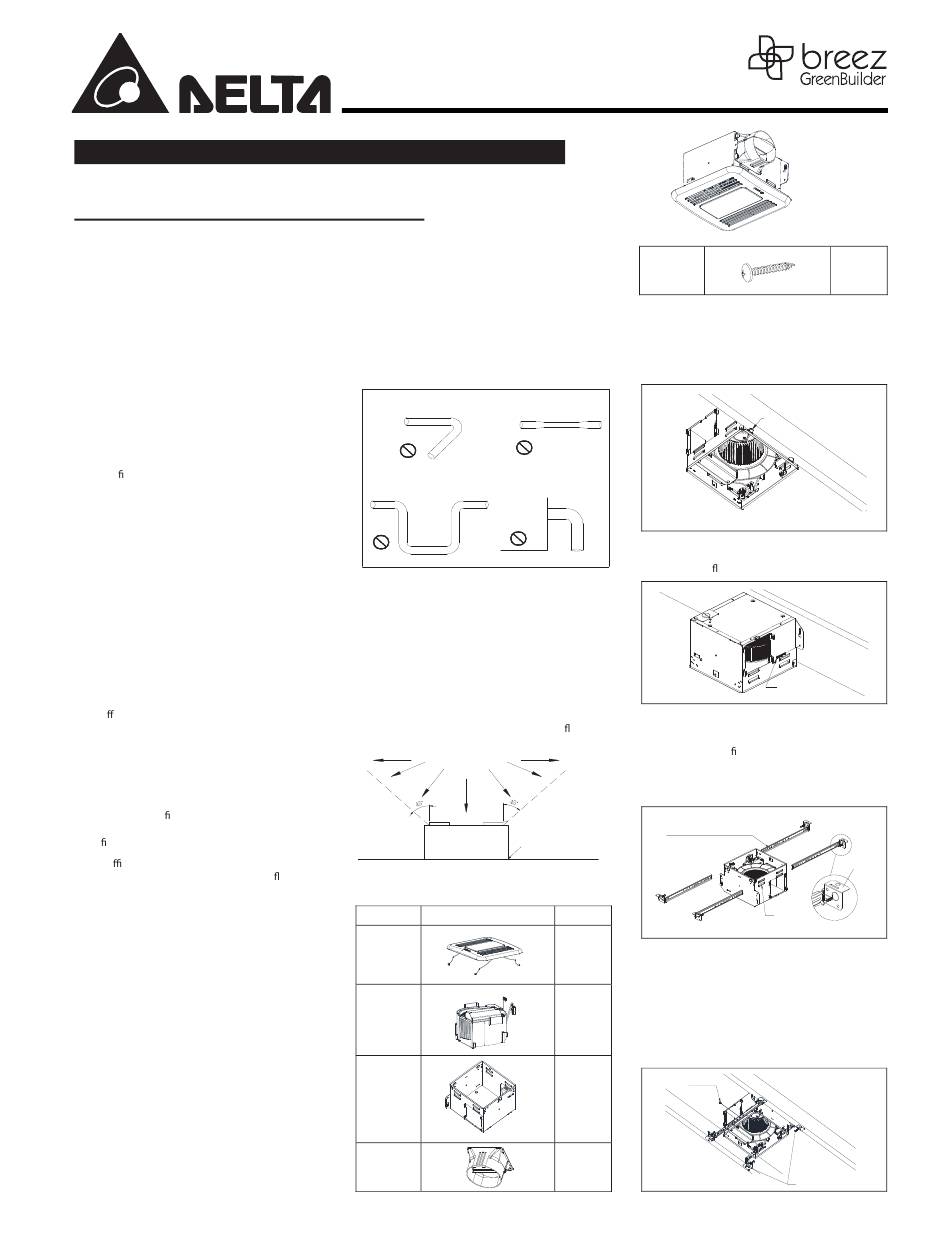

INSTALLATION AND OPERATING INSTRUCTIONS

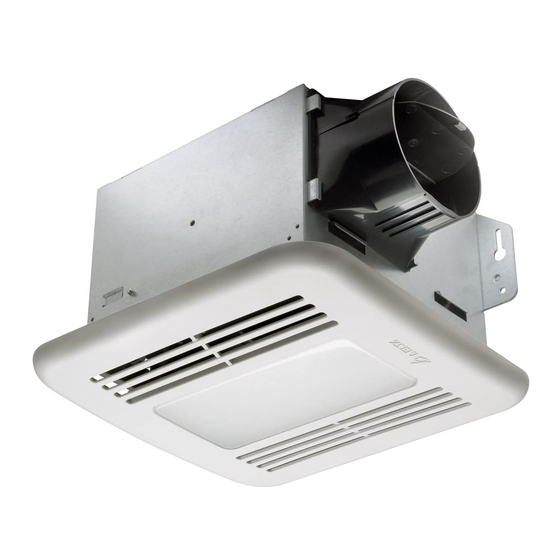

VENTILATION FAN/LED LIGHT
READ AND SAVE THESE INSTRUCTIONS

GENERAL SAFETY INFORMATION

1. Make sure that the electric service supply
voltage is AC 120V, 60Hz.
2. Follow all local electrical and safety codes, as
well as the National Electrical Code (NEC) and
the Occupational Safety and Health Act (OSH
Act).
3. Always disconnect the power source before
working on or near the ventilating fan, motor
or junction box.
4. Protect the power cord from sharp edges, oil,
grease, hot surfaces, chemicals or other
objects.
5. Do not kink the power cord.
6. Do not install the unit where ducts are
con gured as shown in Fig. A.
7. Provide suction parts with proper ventilation.
8. This unit is UL listed for use over a bathtub or
shower when installed in a GFCI protected
branch circuit.
9. These ventilating fans are intended for
residential usage only.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS, OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by
the manufacturer. If you have questions,
contact the manufacturer.
2. Before servicing or cleaning unit, switch power
o at service panel and lock the service
disconnecting means to prevent power from
being switched on accidentally. When the
service disconnecting means cannot be locked,
securely fasten a prominent warning device,
such as a tag, to the service panel.
3. Installation work and electrical wiring must be
done by quali ed person(s) in accordance with
all applicable codes and standards, including
re-rated construction.
4. Su cient air is needed for proper combustion
and exhausting of gases through the ue
(chimney) of fuel burning equipment to
prevent back drafting. Follow the heating
equipment manufacturer's guideline and
safety standards such as those published by
the National Fire Protection Association (NFPA),
and the American Society for Heating,
Refrigeration and Air Conditioning Engineers
(ASHRAE) and the local code authorities.
5. When cutting or drilling into wall or ceiling, do
not damage electrical wiring and other hidden
utilities.
6. Ducted fans must always be vented to the
outdoors.
7. If this unit is to be installed over a tub or
shower, it must be marked as appropriate for
the application and be connected to a GFCI
(Ground Fault Circuit Interrupter) – protected
branch circuit.
GlobalTowne ~ 888-726-9752
8. Do not use this unit with any other solid-state
control devices. Solid-state control devices
may cause harmonic distortion, which can
cause a motor humming noise.
9. NEVER place a switch where it can be reached
from a tub or shower.
10. Not to be installed in a ceiling thermally
insulated to a value greater than R40. (This is
required for installation in Canada only).
Turning angle too large Duct shrink
Too many elbows Elbow near the body
Body
Fig. A
CAUTION
1. For general ventilating use only. Do not use to
exhaust hazardous or explosive materials and
vapors.
2. Not for use in cooking areas. (Fig. B)
3. This product must properly connect to the
grounding conductor of the supply circuit.
4. To reduce the risk of injury to persons, install
the fan at least 7 feet (2.1m) above the oor.
C ooking area
D o not install above or
inside this area
C ooking
Equipm ent floor
Fig. B

SUPPLIED ACCESSORIES

Part name Appearance
Grille
Fan
Housing
Duct
Connector
(4")
www.globaltowne.com
MODEL GBR 80LED
Screw
( ø 4×25)
1. INSTALLATIONS
MOUNT HOUSING WITH FLANGE:
To bend the housing tabs out to 90 degrees
1-1.
and make housing tabs contact the bottom of
the joist.
1-2. The housing mounts with 4 screws (ø 4×25). Screw
housing to joist through lowest holes in each
mounting ange, then through the other holes.
USING SUSPENSION BRACKETS (SOLD SEPARATELY)
Sliding suspension brackets available to allow
1-3.
for your speci c positioning of housing
anywhere between joists and span up to 24".
Insert suspension brackets into the channels
1-4.
on housing. Make sure tabs face "up" shown.
Suspension Bracket
(Sold separately)
Quantity
Extend suspension brackets to the width of the
1-5.
1
joists. Hold fan in place with the suspension
brackets tabs wrapping around the bottom of
joist.
Fasten suspension brackets to joists with nails
1-6.
1
or screws through holes near nails.
Secure suspension brackets together with
1-7.
screws.
Screw
1
Joist
1
Page 1.
4
Tabs
Joist
Joist
ø 4×25
Screw
Tab Face
Channel
Joist
Bottom of joist
