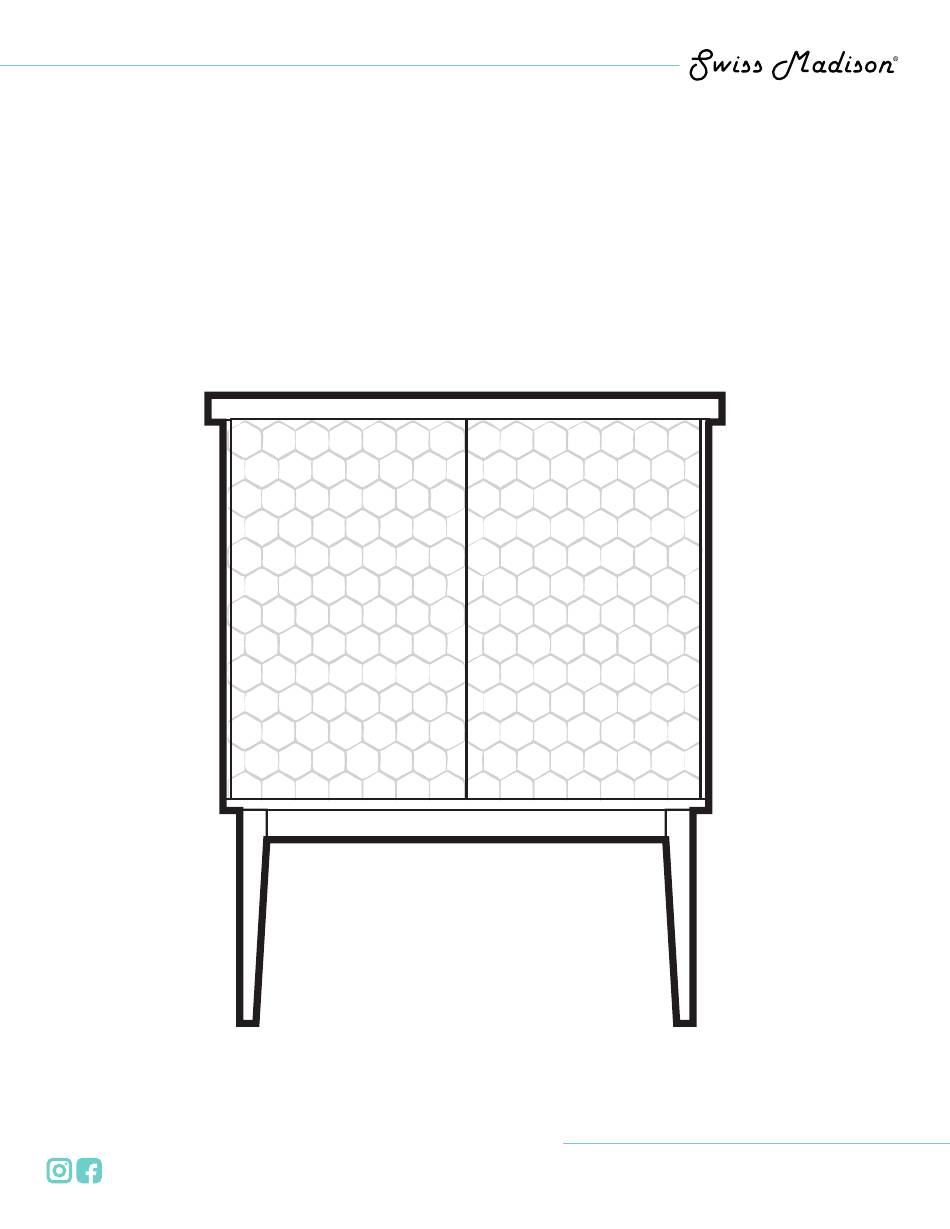

- Page 1 w e l l m a d e f o r e v e r Freestanding Vanity INSTALLATION INSTRUCTIONS www.swissmadison.com | 1-434-623-4766 | info@swissmadison.com @SwissMadison #WellMadeForever...
-
Page 2: Prior To Installation
· · The step-by-step guidelines in the installation instructions are a general reference. Should there be any discrepancies, Swiss Madison cannot be held liable. It is recommended to install all Swiss Madison products by hiring a licensed professional. · Read installation and maintenance instructions thoroughly before installing. Be sure to use proper tools and always wear proper personal safety accessories for your protection. - Page 3 INSTALLATION FREESTANDING VANITY PARTS FOR REFERENCE: 1. Left side panel 2. Right side panel 3. Bottom panel 4. Rear top bar 5. Rear bottom bar 6. Front cross bar 7. Door latch support bar 8. Inside shelf 9. Shelf wall 10.
- Page 4 INSTALLATION FREESTANDING VANITY INSTALLATION: Prepare Frame x 34...
-
Page 5: Assemble Frame
INSTALLATION FREESTANDING VANITY Assemble Front Cross Bar and Inner Shelf Assemble Frame x 22... - Page 6 INSTALLATION FREESTANDING VANITY Assemble Legs Attach Legs to Base Panel Insert Inner Shelf...
- Page 7 INSTALLATION FREESTANDING VANITY Prepare Door Hinges and Install Doors Before adjustments: After adjustments: Hinge/Door Adjustment and Realignment • If adjustment or realignment is needed, follow the instructions provided in the following chart. x 24...
- Page 8 INSTALLATION FREESTANDING VANITY Anchor to Wall Option 1: Securing to Drywall · Position cabinet against wall in desired location. · Using a pencil, make a mark on the wall through the holes in each bracket (K). 4 PCS · Move cabinet away from the wall. Create a pilot G G G hole in each mark on the wall, then insert the plastic anchor (N).
-
Page 9: One-Year Limited Warranty
® customers with beautiful, durable, long-lasting products. Should there be any defects in materials or craftsmanship under regular use that are discovered within the first year after delivery, Swiss Madison will ®...
