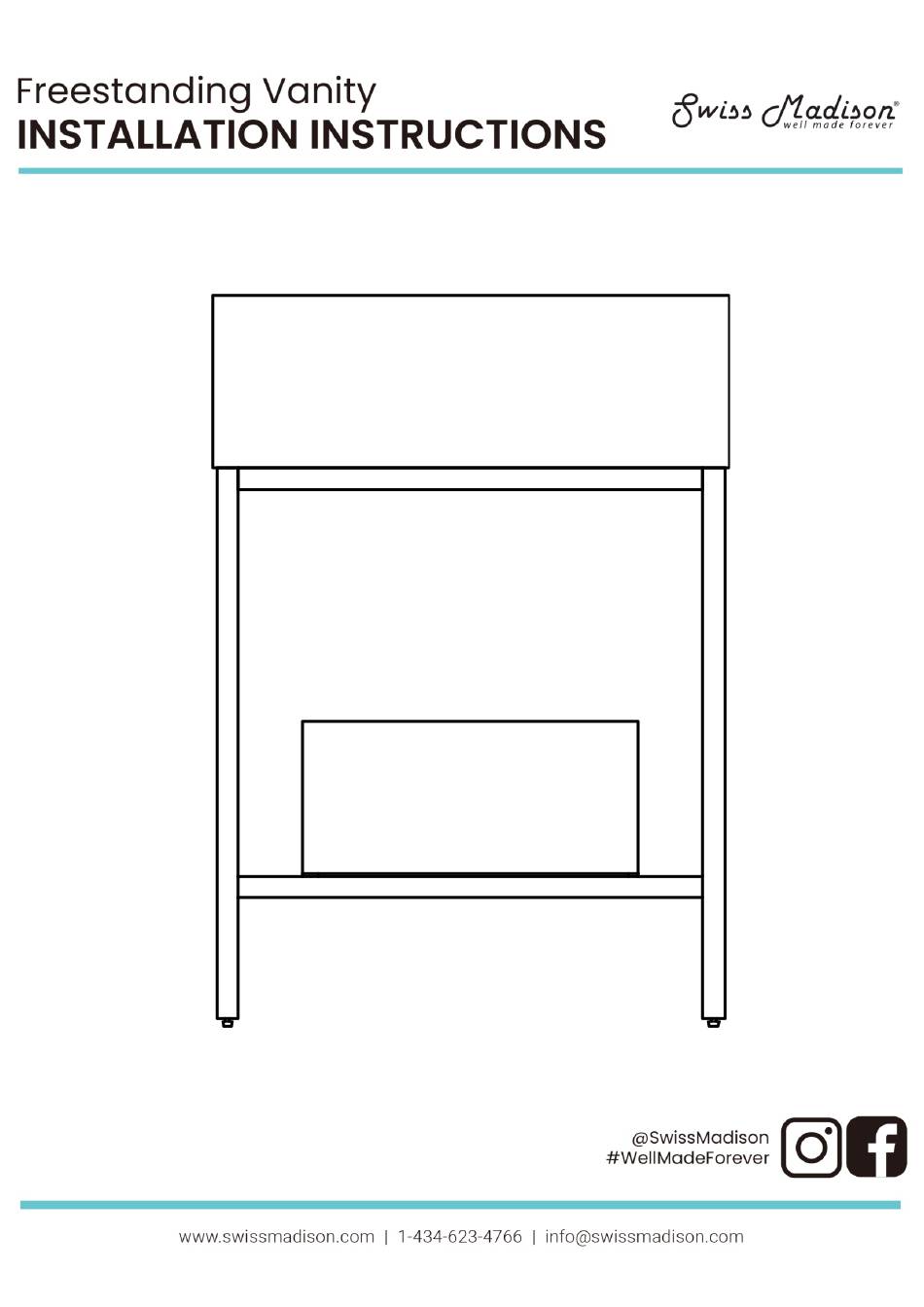

Swiss Madison Beau SM-BV720KGCA Installation Instructions Manual

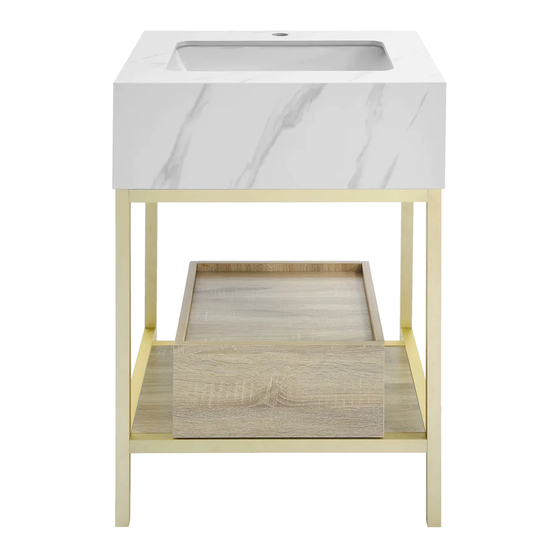

Freestanding vanity

Table of Contents

Need help?

Do you have a question about the Beau SM-BV720KGCA and is the answer not in the manual?

Page 2 Alumlnum Vanity Vanity Frame Base Sink — 1 —...
Page 3 1:Left side panel 2:Right side panel 3:Top panel 4:Back panel 5:Bottom panel 6:Drawer front panel 7:Drawn left panel 8:Drawn right panel 9:Drawn bottom panel 10:Drawn back panel A.Cam bolt B.Cam lock C.Cam patch 65mm Screw 4 cam bolts(A)into the left side panel(1) .Repeat for the right side panel(2) Screw 4 cam bolts(A)into the Bottom panel(5) Screw 2 cam bolts(A)into the Back panel(4) —...
Page 4 2.Assemble cabiaet body Connect the back panel (4)to the top panel (3) Use 2 cam locks (B) to secure in the place. Attach the top panel and back panel to the left side panel(1) and secure using 4 cam locks(B). Attach the top panel and back panel to the right side panel(2) and secure using 4 cam locks(B).
Page 5 5.Assemble drawn panel Connect the drawn back panel (6-4)to the drawn bottom panel (6-3) Use 2 cam locks (B) to secure in the place. Attach the drawn back panel (6-4)and drawn bottom panel (6-3)to the drawn left side panel and secure using 4 cam locks(B).
Page 6 7.Assemble aluminum frame Connect the 25*25*640 aluminum bar (1) to the 25*25*465 aluminum bar (2) use 4 M4*10 screw (6). Repeat the previous step. Connet the 25*25*540 aluminum bar(3/4) to the 25*25*640 aluminum bar (1).Note that the aluminum bar with hole (4) is installed at the bottom. Attach the cabinet body to the aluminum frame and secure using 4 M4*20 screw (8) —...
