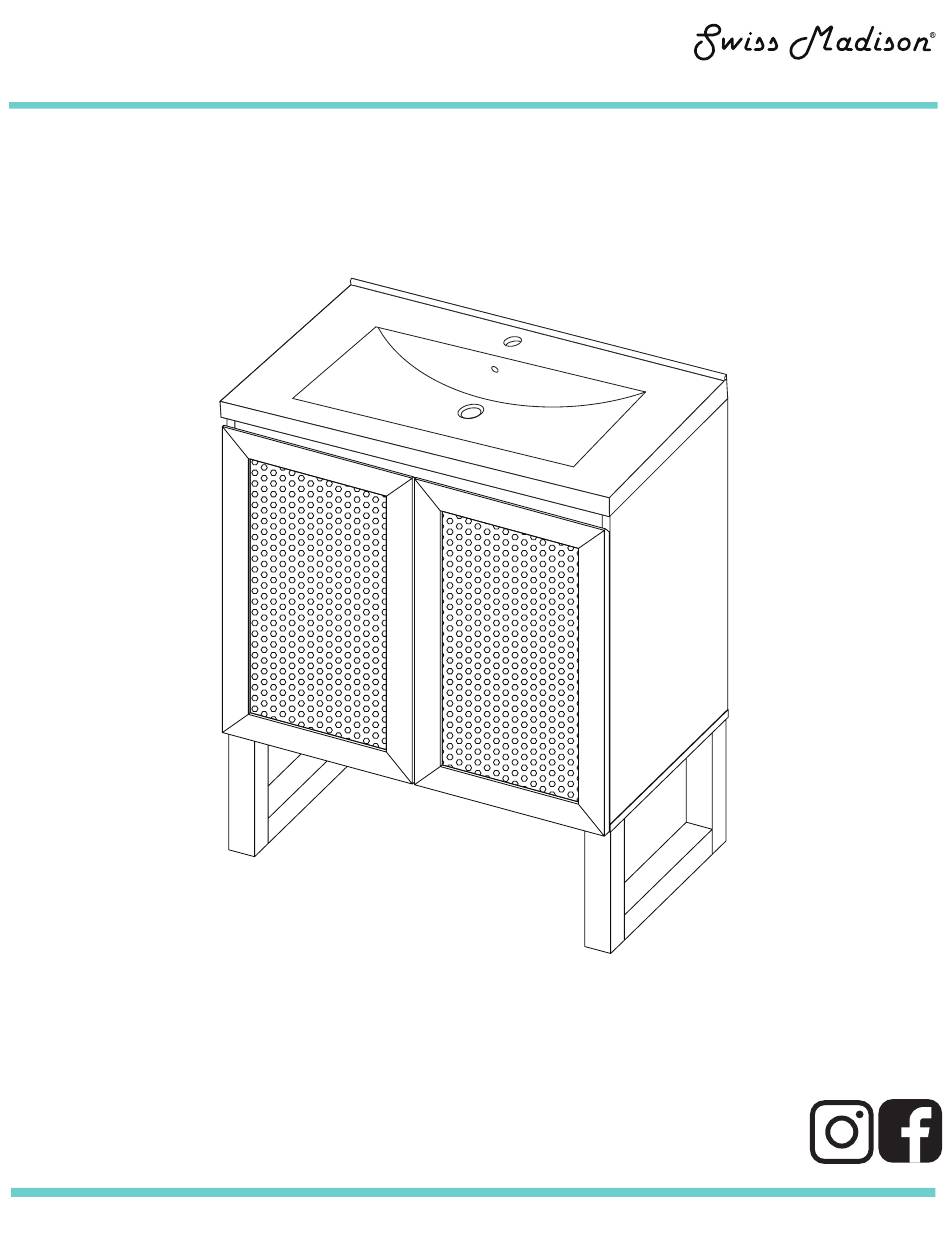

- Page 1 Freestanding Vanity INSTALLATION INSTRUCTIONS w e l l m a d e f o r e v e r @SwissMadison #WellMadeForever www.swissmadison.com | 1-434-623-4766 | info@swissmadison.com...
-
Page 2: Installation Instructions
· · The step-by-step guidelines in the installation instructions are a general reference. Should there be any discrepancies, Swiss Madison cannot be held liable. It is recommended to install all Swiss Madison products by hiring a licensed professional. · Read installation and maintenance instructions thoroughly before installing. Be sure to use proper tools and always wear proper personal safety accessories for your protection. - Page 3 FREESTANDING VANITY INSTALLATION INSTRUCTIONS Parts for Reference: 1. Top bars (2) 2. Rear bottom bar 3. Right side panel 4. Left side panel 5. Base panel 6. Legs (2) 7. Right side door 8. Left side door A. Cam bolt B.
- Page 4 FREESTANDING VANITY INSTALLATION INSTRUCTIONS 1. Prepare Frame · Insert 1 wooden dowel (C) into each side of the top bar (1) as shown. Repeat to second top bar (1). · Insert 4 wooden dowels (C) into dowel holes on the rear bottom bar (2) as shown. ·...
- Page 5 FREESTANDING VANITY INSTALLATION INSTRUCTIONS 3. Construct Base · Align base panel (5) with bottom of cabinet frame as shown. · Screw 6 screws (D) through the base panel (5) and into the frame as shown. 4. Attach Legs · Insert 2 wooden dowels (C) into each leg set (6) as shown. ·...
- Page 6 FREESTANDING VANITY INSTALLATION INSTRUCTIONS 5. Attach Hinges · Remove threaded caps from bottom of screws in a hinge (E). · Align caps in designated holes of the right side door (7). Using a mallet, hammer caps into the holes, making sure that each cap is open at the top.
- Page 7 FREESTANDING VANITY INSTALLATION INSTRUCTIONS 7. Optional: Secure Vanity to Wall *Hardware not included* 8. Vanity Top Installation · Install faucet and drain according to manufacturer’s installation instructions. Do not overtighten, this may cause the sink to crack. · Set the vanity top on top of the vanity base, checking the location of the p-trap and drain. ·...
- Page 8 (including, without limitation, costs associated with ‘professionals’ or ‘experts’, investigations, audits, analyses, attorneys and any other professional/hired services). The Swiss Madison® warranty is a comprehensive and explicit limit of liability. All items not disclosed within the warranty are not addressable within the responsibility of Swiss Madison®. Certain states have variances regarding implied warranties;...
