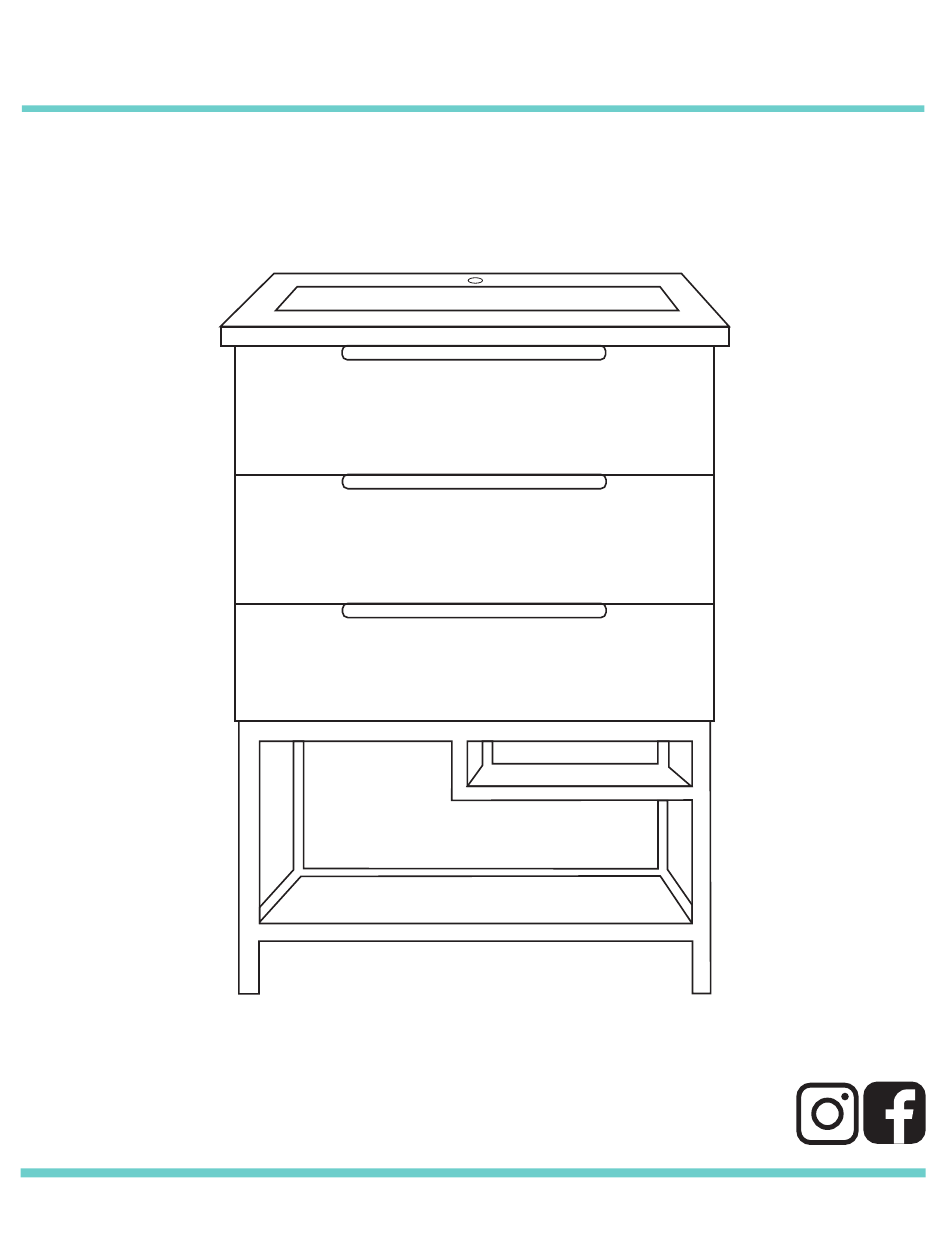

- Page 1 Freestanding Vanity INSTALLATION INSTRUCTIONS @SwissMadison #WellMadeForever www.swissmadison.com | 1-434-623-4766 | info@swissmadison.com...
-
Page 2: Installation Instructions
· · The step-by-step guidelines in the installation instructions are a general reference. Should there be any discrepancies, Swiss Madison cannot be held liable. It is recommended to install all Swiss Madison products by hiring a licensed professional. · Read installation and maintenance instructions thoroughly before installing. Be sure to use proper tools and always wear proper personal safety accessories for your protection. - Page 3 FREESTANDING VANITY INSTALLATION INSTRUCTIONS Parts for Reference: 1. Left side panel 2. Right side panel 3. Base panel 4. Rear top bar 5. Rear bottom bar 6. Front top bar 7. Faux drawer panel 8. Drawer A - front panel 9.
- Page 4 FREESTANDING VANITY INSTALLATION INSTRUCTIONS 2. Assemble Base · Connect the rear bottom bar (5) to the base panel (3) as shown. · Use 2 cam locks (B) to secure into place as shown. 3. Assemble Cabinet Body · Attach the rear top bar (4) and the front top bar (6) to the right side panel (2) as shown. Secure in place usng 2 cam locks (B) each.
- Page 5 FREESTANDING VANITY INSTALLATION INSTRUCTIONS 4. Assemble Cabinet Frame · Align a frame side panel (21) with 4 frame connectors (22) as shown in the drawing below. Attach the remaining frame side panel (21) as well. · Insert and tighten 8 screws (M) into place as shown in the drawing to secure the frame ·...
- Page 6 FREESTANDING VANITY INSTALLATION INSTRUCTIONS 5. Assemble Cabinet Frame · Attach the small shelf (19) to the metal frame as shown. Secure into place with 4 screws (G). · Attach the large shelf (20) to the metal frame as shown. Secure into place with 4 screws (G). 6.
- Page 7 FREESTANDING VANITY INSTALLATION INSTRUCTIONS 6a. Assemble Drawer A · Screw 7 cam bolts (A) into Drawer A - Front panel (8) as shown. · Screw 4 cam bolts (A) into both Drawer A - left panel (10) and Drawer A - right panel (11) as shown. Screw 1 cam bolt (A) into both the left back panel (12) and the right back panel (13) as shown.
- Page 8 FREESTANDING VANITY INSTALLATION INSTRUCTIONS 6b. Assemble Drawer B · Screw 7 cam bolts (A) into Drawer B - Front panel (8) as shown. · Screw 4 cam bolts (A) into both Drawer B - left panel (15) and Drawer B - right panel (16) as shown. Screw 3 cam bolts (A) into Drawer B - back panel (17) as shown.
- Page 9 FREESTANDING VANITY INSTALLATION INSTRUCTIONS 7. Attach Drawers · Attach a drawer handle (I) to the faux drawer panel (7) using 3 screws (H). · Align the faux drawer panel (7) to the front top bar (6) and attach 6 screws (J) as shown. ·...
- Page 10 FREESTANDING VANITY INSTALLATION INSTRUCTIONS 8. Secure Vanity to Wall Option 1: Securing to Drywall · Attach 2 metal brackets (D) to the rear top bar (4) · Position cabinet against wall in desired location. · Using a pencil, make a mark on the wall through using 16 screws (G).
- Page 11 Should there be any defects in materials or crafts- manship under regular use that are discovered within the first year of installation, Swiss Madison will provide replacement parts at no charge, or at its discretion, replace any product or part of the product that is deemed defective, under normal installation, use, service or maintenance.
