Westin BRUTE Pro Series Instructions

Step 1: There are a variety of uses for these boxes but they are primarily sold as a top side stake bed mount tool
box. These boxes are made with flip up doors for the upper compartment and a drop down door or drawers for
the bottom compartment. There are a few ways to install these boxes but most commonly they simply bolt down
to the flat bed through the lower compartment.
Step 2: If your box has a door on the lower compartment : Measure and locate the position of the box on the bed,
from under the bed locate where you would like your bolts and drill from under the bed into the lower compart-
ment of the box. When bolting choose 4 to 6 locations for bolts and be sure to use large, fender style washers in-
side the box which will keep the aluminum from tearing from stress over time. It is always a good idea to use a
rubber washer between the box and the bed to absorb some of the twisting from the chassis.
Step 3: If your box has the drawers in the lower compartment you will use the same method as in step 2 but spe-
cial attention needs to be taken to remove the drawer before drilling and carefully reinstall the drawer when com-
plete. Please see instructions below.

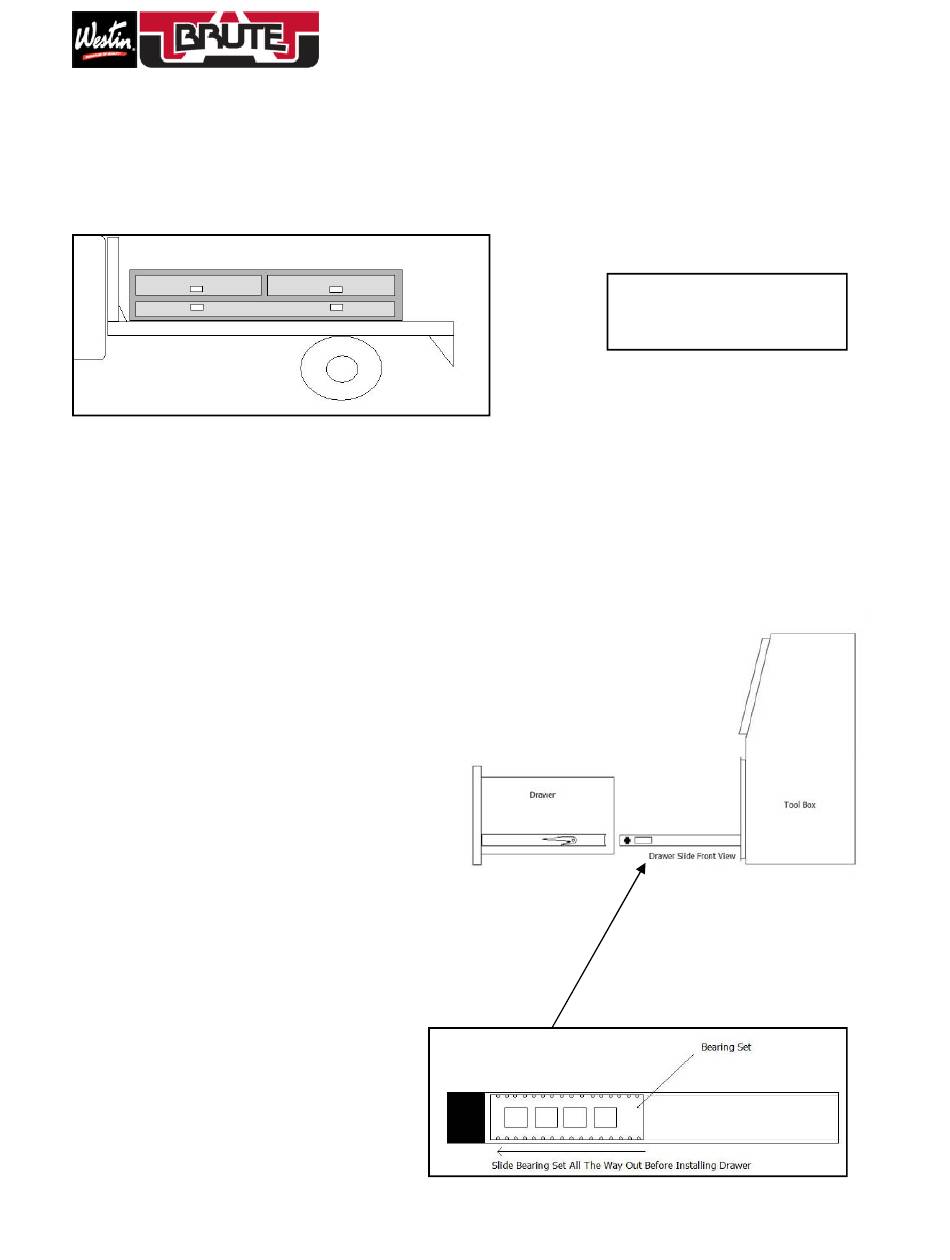

Step 4: When installing the drawer first be sure the
drawer slide is in full extended position to accept
the drawer. See DWG 2. IMPORTANT: be sure
the bearing set on the drawer slide is also in the full
outward position while sliding the drawer into
place. Failure to do so will not allow drawer to lock
into position.
Once you hear a click sound on both sides of the
drawer, you will know the drawer is locked into the
slide. Close and latch drawer and your installation
is complete.
P/N Date 1/10/13
Installation Support
Monday - Friday
7am - 4pm PST
800-345-8476
DWG 2A
Instruction / Parts Guide
"80-TB-400" Models
Please note: Due to the variety
of mounting styles, no hardware
is provided.
DWG 2
