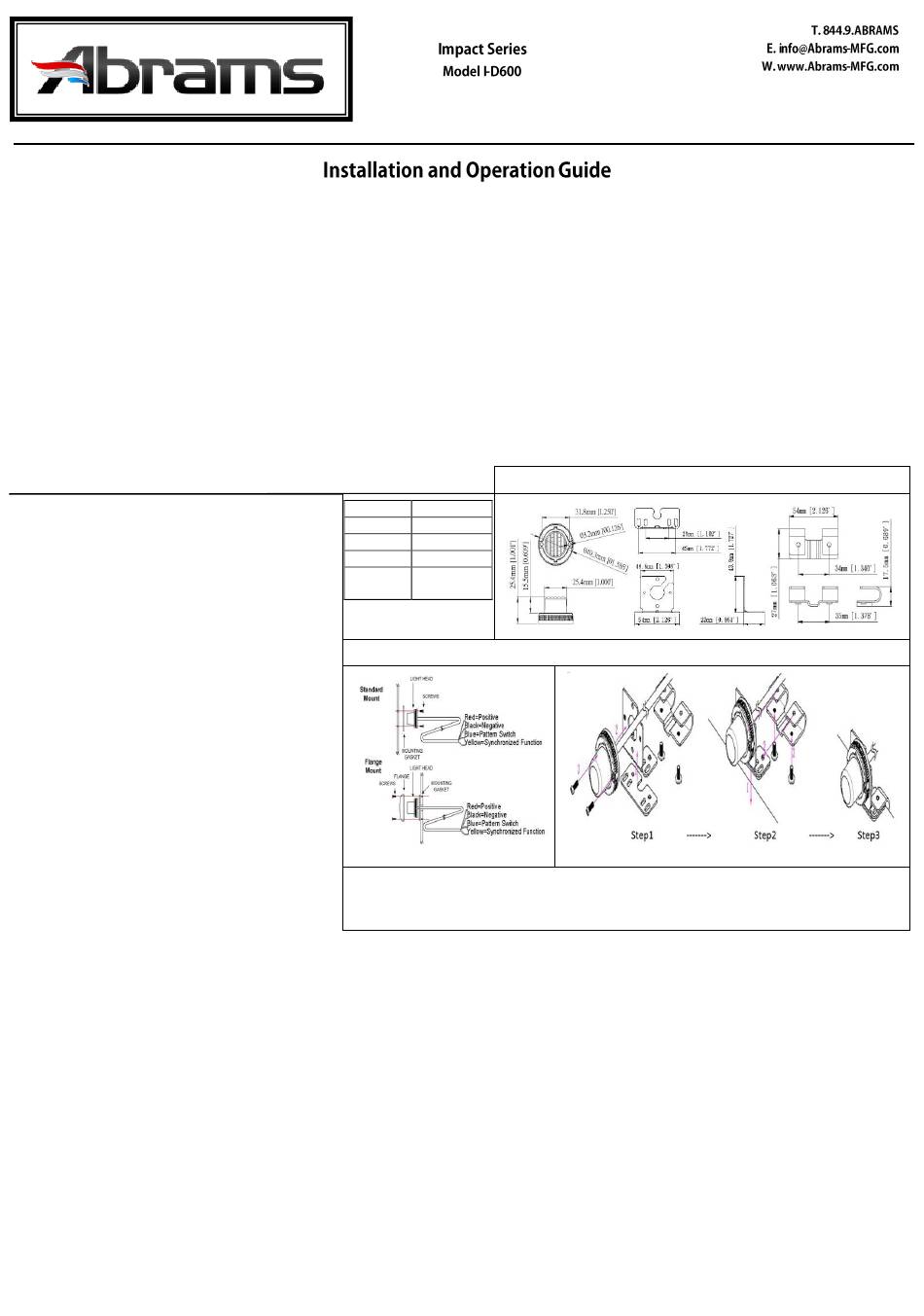

Abrams Impact Series Installation And Operation Manual

Sae class-1 impact 6 (amber/amber) 18w

Advertisement

Quick Links

IMPORTANT:
Please read all of the following instructions before installing your new Impact series Hide-A-Way LED.
Failure to install or use this product according to manufacturer's recommendations may result in property damage, serious injury, and/or
WARNING!!!!
death to those you seek to protect!
*Proper installation of this product requires the installer to have a good understanding of automotive electronics, systems and procedures.
*This product contains high-intensity LEDs. Do not stare directly into these lights. Momentary blindness and/or eye damage could result.
*Use only soap and water to clean the outer lens.
*Do not install this product or route any wires in the deployment area of your air bag. Equipment mounted or located in the air bag deployment area will damage or reduce the
effectiveness of the air bag, or become a projectile that could cause serious personal injury or death. Refer to your vehicle owner manual for the air bag deployment area. The
User/Installer assumes full responsibility to determine proper mounting location, based on providing ultimate safety to all passengers inside the vehicle.
*If mounting this product requires drilling holes, the installer must be sure that no vehicle components or other vital parts could be damaged by the drilling process. Check both sides
of the mounting surface before drilling begins. Also de-burr any holes and remove any metal shards or remnants. Install grommets into all wire passage holes.
*Inspect and operate this product regularly to confirm its proper operation and mounting condition. Do not use a pressure washer to clean this product.
*For this product to operate at optimum efficiency, a good electrical connection to chassis ground must be made. The recommended procedure requires the product ground wire to be
connected directly to the NEGATIVE (-) battery post.
*It is recommended that these instructions be stored in a safe place and referred to when performing maintenance and/or reinstallation of this product.
*FAILURE TO FOLLOW THESE SAFETY PRECAUTIONS AND INSTRUCTIONS COULD RESULT IN DAMAGE TO THE PRODUCT OR VEHICLE AND/OR SERIOUS
INJURY TO YOU AND YOUR PASSENGERS!
If this product uses a remote device to activate or control this product, make sure that this control is located in an area that allows both the vehicle and the control to be operated safely
in any driving condition.
Do not attempt to activate or control this device in a hazardous driving situation.
The Impact Series Flash Pattern
P1: Single 120 FPM Ph1-Color 1&2
P22: Quad 75 FPM Ph1-Color 1
P2: Single 120 FPM Ph2-Color 1&2
P23: Quad 75 FPM Ph2-Color 2
P3: Single 120 FPM Ph1-Color 1
P24: Quad 75 FPM Alt. Color 1<-->2
P4: Single 120 FPM Ph2-Color 2
P25: Quad 120 FPM Ph1-Color 1&2
P5: Single 120 FPM Alt. Color 1<-->2
P26: Quad 120 FPM Ph2-Color 1&2
P6: Single 300 FPM Ph1-Color 1&2
P27: Quad 120 FPM Ph1-Color 1
P7: Single 300 FPM Ph2-Color 1&2
P28: Quad 120 FPM Ph2-Color 2
P8: Single 300 FPM Ph1-Color 1
P29: Quad 120 FPM Alt. Color 1<-->2
P9: Single 300 FPM Ph2-Color 2
P30: Quint 120 FPM Ph1-Color 1&2
P10: Single 300 FPM Alt. Color 1<-->2
P31: Quint 120 FPM Ph2-Color 1&2
P11: Single 75 FPM Ph1-Color 1&2
P32: Quint 120 FPM Alt. Color 1<-->2
P12: Single 75 FPM Ph2-Color 1&2
P33: 2 Double 75 FPM,4 Quad 120 FPM
P13: Single 75 FPM Alt. Color 1<-->2
P34: Module. Flash Color 1<-->2
P14: Double 75 FPM Ph1-Color 1&2
P35: AutoRun
P15: Double 75 FPM Ph2-Color 1&2
P36: STEADY BURN
P16: Double 75 FPM Alt. Color 1<-->2
P37: OFF
P17: Double 120 FPM Ph1-Color 1&2
P18: Double 120 FPM Ph2-Color 1&2
P19: Double 120 FPM Alt. Color 1<-->2
P20: Quad 75 FPM Ph1-Color 1&2
P21: Quad 75 FPM Ph2-Color 1&2
P1: SINGLE 150 Flash P1 (Sync) is Factory Default.
Phase Operation: Ph1= Phase 1 / Ph2=Phase 2
Phase 1 (Ph1) flashes simultaneously with Ph1
Phase 2 (Ph2) flashes simultaneously with Ph2
Ph1 alternates with Ph2
Option Function
Stop/Turn/Brake/Tail
Light are designed with one pattern
P1: Steady Burn
WIRE:
RED: Positive (need to add 3A Fuse)
BLACK: Negative
BLUE: Pattern Switch
YELLOW: Synchronized Function
WHITE: Stop/Turn/Brake/Tail Light Switch (Option)
*Maximum of 8 Impact series be synchronized
OPERATION
Apply BLUE TO BLACK wire:
-Less than1 sec. for next pattern
-Between 1-3 sec. for previous pattern
-Between 3-5 sec. for Factory Default (P1)
-more than 5 sec. for turn off and reset to P1
Apply WHITE TO RED (+) wire: (Option)
-
Stop/Turn/Brake/Tail
Light Steady Burn pattern
Specification
Impact SERIES
Input Voltage
10-30VDC
Input Current
2.0 Amps max
Output Power
18 Watts
Waterproof
IP67
and dustproof
*Standard Mount & Flange Mount
Inspect the contents to be certain that the following items are included:
Standard Mount: A. Screw pack
Recommend Operation Environment
Ambient Temperature: -30 to 50℃
Trouble Shooting
The Impact series has been factory tested and approved. If the functions of device fail, please check the following:
1. After connecting with the power supply, be sure that the power source end is joined in correct way. And then, make sure that there is
no short-circuited power occurring.
2. Ensure Power switch is turned to "ON" position.
3. Press the Pattern Switch to be sure the "OFF" pattern is not selected. If the blue wire touches black wire over 5 seconds, it would
switch to OFF pattern. It would be lighted up again when using blue wire touches black wire over 1 second.
Warranty (5 Year Warranty)
This product was tested and found to be operational at the time of manufacture. Provided this product is installed and operated in
accordance with the manufacturer's recommendations, Abrams guarantees the Impact Series Light for a period of 5 years from the day
of purchase or delivery, whichever is later. Units demonstrated to be defective within the warranty period will be replaced. Improper
installation or use of inappropriate or inadequate wiring or circuit protection causes the warranty to be void. Failure or destruction of
the product resulting from abuse or unusual use and/or accidents is not covered by this warranty. Abrams shall in no way be liable for
other damages including consequential, indirect or special damages whether loss is due to negligence or breach of warranty.
ABRAMS MAKES NO OTHER EXPRESS OR IMPLIED WARRANTY INCLUDING, WITHOUT LIMITATION,
WARRANTIES OF FITNESS OR MERCHANTABILITY, WITH RESPECT THIS PRODUCT.
Dimensions
*L Bracket、Hood and Truck Mount
B. Manual
C. Mounting gasket
Relative Humidity: 10 to 85%, non-condensing
2013 ISSUE B
