Abrams UG-600 Installation And Configuration Manual

INST ALLA TION AND CONFIGURA TION MANUAL

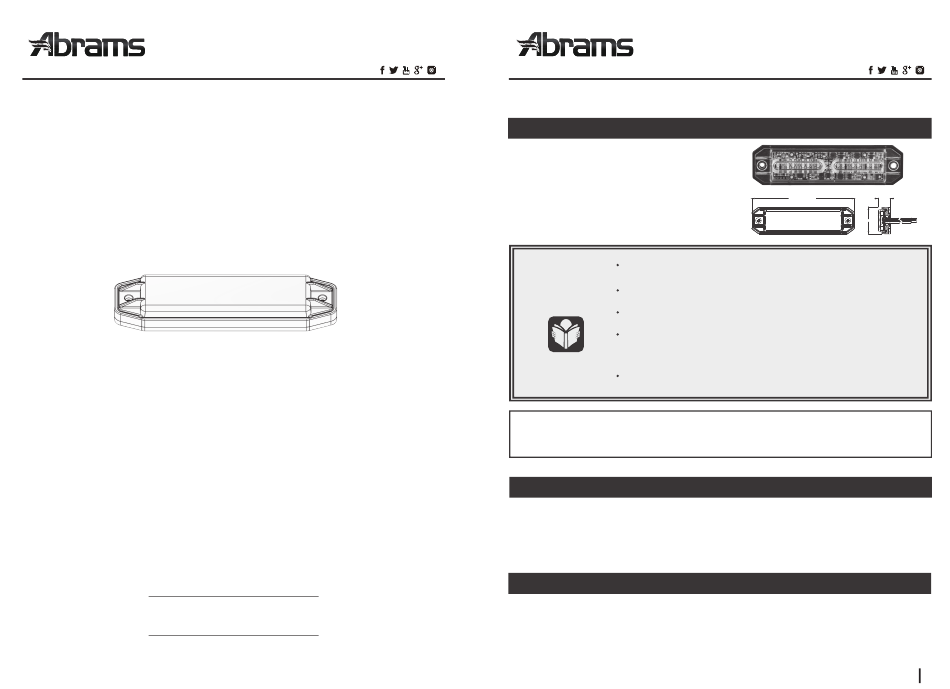

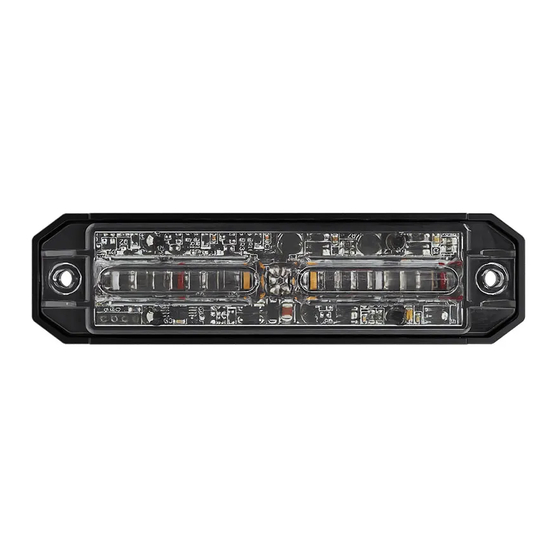

Abrams Ultra Grill Lights
MODEL#: UG-600
IMPORTANT! PLEASE READ THROUGH ALL
PROVIDED INSTRUCTIONS AND ANY LISTED
WARNINGS IN REGARDS TO PRODUCT USE.
844.9.ABRAMS
info@AbramsMFG.com
www.AbramsMFG.com
INST ALLA TION AND CONFIGURA TION MANUAL
Abrams Ultra Grill Lights
Specifications
LED: 3W*6 Single Color
●
LEDs per head : 6
●
Voltage : 10-30VDC
●
Flash patterns : 29
●
Color : Amber, Blue, Red , White and Green
●
Proper installation of this product requires the installer to have a good
understanding of automotive electronics, systems and procedures.
Failure to use specified installation parts or hardware will void the
product warranty.
For this product to operate at optimum efficiency, a good electrical
connection to chassis ground must be made.
It is recommend that these instructions be stored in a safe place and
referred to when performing maintenance or reinstallation of this
products.
Do not install and/or operate this safety product unless you have read
and understand the safety information contained in this manual.
This document provides all the necessary information to allow your product to be properly and
safely installed. Before beginning the installation and operation of your new product, the
installation technician and operator must read this manual completely.
Default
P13 Quad 75FPM PH1 is Factory Default.
Phase Operation: Ph1= Phase 1 / Ph2=Phase 2
Phase 1 (Ph1) flashes simultaneously with Ph1
Phase 2 (Ph2) flashes simultaneously with Ph2
Operation
Apply BLUE to BLACK wire:
-Less than1 sec. for next pattern
-Between 1-3 sec. for previous pattern
-Between 3-5 sec. for Factory Default
-More than 5 sec. for Last Pattern
844.9.ABRAMS
info@AbramsMFG.com
www.AbramsMFG.com
120.6mm 14.3
32.2mm
ABRAMS INSTALLATION AND CONFIGURATION MANUAL V.1.1
WWW.ABRAMSMFG.COM | INFO@ABRAMSMFG.COM 01
