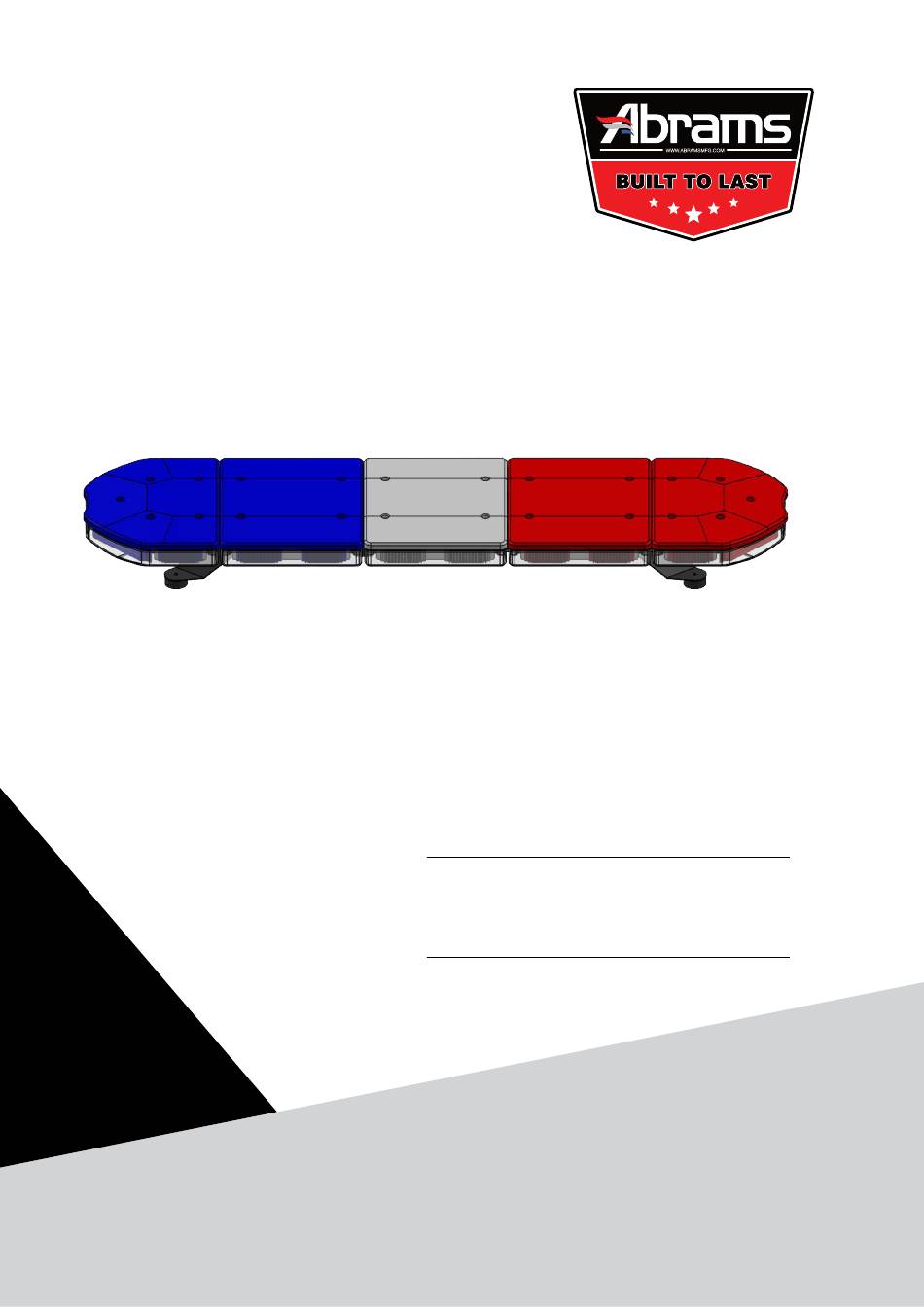

- Page 1 RUGEYE-X SERIES LED Lightbar Installation and Operation Manual Model# RE-47X www.abramsmfg.com...
-
Page 2: Table Of Contents
844.9.ABRAMS www.abramsmfg.com info@abramsmfg.com Table of Contents Important & Warning ..............3 RugEye-X Series/ Control Box ............5 Equipment and Dimensions ............5 Wiring and Functions ..............6 Installing Brackets ................7 Flash Pattern Operation ..............8 Specifications ..................9 Troubleshooting ................10 Warranty ..................11 Abrams Installation and Operation Manual www.abramsmfg.com | info@abramsmfg.com... -
Page 3: Important & Warning
SIDES OF THE MOUNTING SURFACE BEFORE CONTROL THIS DEVICE IN A HAZARDOUS DRILLING BEGINS. ALSO DE-BURR ANY DRIVING SITUATION. HOLES AND REMOVE ANY METAL SHARDS OR REMNANTS. INSTALL GROMMETS INTO ALL WIRE PASSAGE HOLES. Abrams Installation and Operation Manual www.abramsmfg.com | info@abramsmfg.com... -
Page 4: Equipment And Dimensions
RugEye-X Series Lightbar Abrams Control Box Universal Mounting Bracket Kit IMPORTANT! PLEASE READ THROUGH ALL 12 FT Power Cable Harness PROVIDED INSTRUCTIONS AND ANY LISTED WARNINGS IN REGARDS TO PRODUCT USE. Product Installation Manual Abrams Installation and Operation Manual www.abramsmfg.com | info@abramsmfg.com... -
Page 5: Rugeye-X Series/ Control Box
Warning Pattern Aelly Light ON Yellow Take Down Flash Green Traffic ON/OFF Black Warning ON/OFF Blue Right Orange Left Switch Wires - 7C White Down Control Box Power Supply Yellow Traffic Pattern Abrams Installation and Operation Manual www.abramsmfg.com | info@abramsmfg.com... -
Page 6: Wiring And Functions
Brown Wire to Positive - Warning Mode 1 Blue Wire to Positive - Flash Pattern Switch Blue Wire to Negative - Flash Speed Switch 10 A Fuse Connect Black Wire to Negative Power (-) 10~30V Abrams Installation and Operation Manual www.abramsmfg.com | info@abramsmfg.com... -
Page 7: Installing Brackets
Route the full length of the cable down towards your switch panel through the base of the B-Piller taking a 90 degree turn to enter the B-Pillar. ** If you require additional information and / or video and user guides, please visit www.abramsmfg.com/support or call Abrams Customer Support 844.9 Abrams Abrams Installation and Operation Manual www.abramsmfg.com | info@abramsmfg.com... -
Page 8: Flash Pattern Operation
Traffic -- Left – Traffic -- Right – Dim -- 15% Cruise Mode – -- 15% – Alley -- ON – Alley -- Flash Take Down – -- ON Take Down -- – Flash Abrams Installation and Operation Manual www.abramsmfg.com | info@abramsmfg.com... -
Page 9: Specifications
300FPM half P25- IN OUT 150FPM P26- IN OUT 75FPM P27- steady QUAD 150FPM checker P28- steady QUAD 75FPM checker P29- Module Checker P30- Single 75/150/300FPM checker & all on P31- Auto Abrams Installation and Operation Manual www.abramsmfg.com | info@abramsmfg.com... -
Page 10: Troubleshooting
Trouble Shooting All Manufacture Defects are covered under the Abrams Warranty accordingly. Warranty is void with disassembly or rewiring of any Abrams Products or Improper Wiring or Installation. If you are unsure how to trouble shoot your light bar for any reason or if the trouble shooting does not fix your... -
Page 11: Warranty
Failure or Destruction of the product resulting from abuse or unusual use and/or accidents is not covered by this warranty. Abrams shall in no way be liable for other damages including consequntial, indirect or or special damages whether loss is due to negligence or breach of warranty. - Page 12 844.9.ABRAMS www.abramsmfg.com info@abramsmfg.com 844.9.ABRAMS | info@abramsmfg.com | www.abramsmfg.com...
