INST ALLA TION AND CONFIGURA TION MANUAL

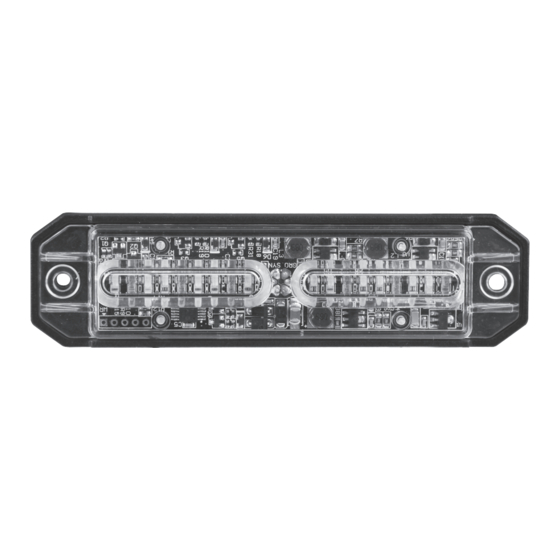

Abrams Ultra Grill Lights
MODEL#: UG-1800
IMPORTANT! PLEASE READ THROUGH ALL
PROVIDED INSTRUCTIONS AND ANY LISTED
WARNINGS IN REGARDS TO PRODUCT USE.
844.9.ABRAMS
info@AbramsMFG.com
www.AbramsMFG.com
INST ALLA TION AND CONFIGURA TION MANUAL
Abrams Ultra Grill Lights
Specifications
LED: 4W*18 triple color
LEDS per head : 18
Voltage : 10-30VDC
Flash patterns : 24
Color : Color 1* Color 2*Color 3
Proper installation of this product requires the installer to have a good
understanding of automotive electronics, systems and procedures.
Failure to use specified installation parts or hardware will void the
product warranty.
For this product to operate at optimum efficiency, a good electrical
connection to chassis ground must be made.
It is recommend that these instructions be stored in a safe place and
referred to when performing maintenance or reinstallation of this
products.
Do not install and/or operate this safety product unless you have read
and understand the safety information contained in this manual.
This document provides all the necessary information to allow your product to be properly and
safely installed. Before beginning the installation and operation of your new product, the
installation technician and operator must read this manual completely.
Apply GREEN to Black wire: -Less than 1 sec. for Color Switch
Color Switch :
P1
color1
P2
color2
P3
color3
P4
color1& color2
P5
color1& color3
P6
color2& color3
P7
color1& color2& color3
E x :
R B C
color1 : R(Red) color2 : B(Blue) color3 : C(White)
844.9.ABRAMS
info@AbramsMFG.com
www.AbramsMFG.com
120.6mm
14.3
32.2mm
ABRAMS INSTALLATION AND CONFIGURATION MANUAL V.1.1
