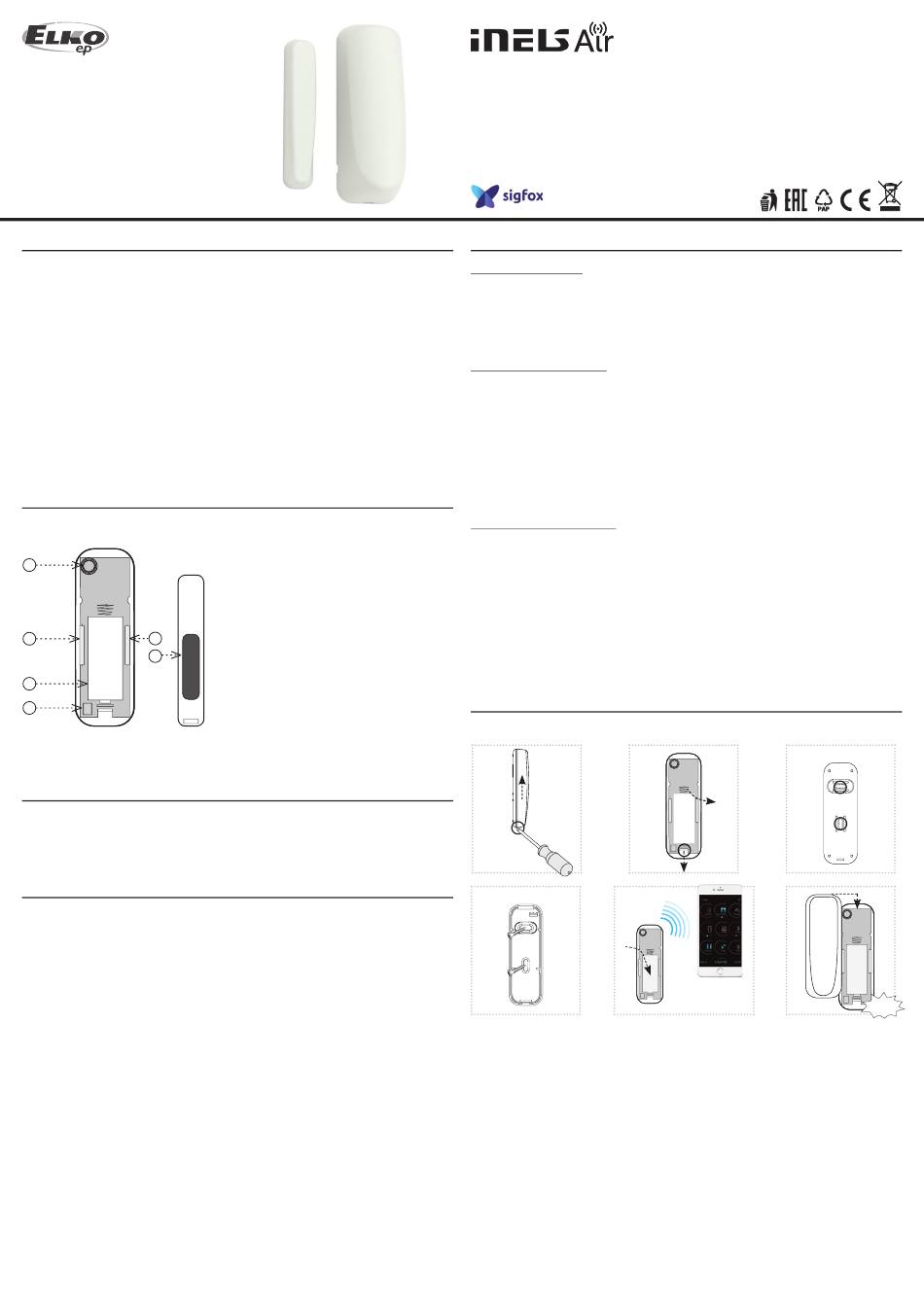

Elko AirWD-100S Quick Start Manual

ELKO EP, s.r.o.
Palackého 493
769 01 Holešov, Všetuly
Czech Republic
Tel.: +420 573 514 211
e-mail: elko@elkoep.com
www.elkoep.com
Made in Czech Republic
02-35/2019 Rev.: 2
Characteristics
• The magnetic detector is used to detect motion – it is activated by attaching /
removing the magnet from the sensor.
• The Sigfox network can be used for message transmission.
• Anti-sabotage function (tamper): When unauthorized interference with the detec-
tor occurs (disassembly) it sends an information message to the server.
• Data is sent to the server from which it can be subsequently displayed as a smart-
phone, application, or Cloud notifi cation.
• Battery status information is sent as a message to the server.
• Power supply: 1x CR123A battery.
Description
Detector D/WD
1
-
2 3
5
3
+
4
Cloud app assignment
It is done in your Smartphone application. Enter the relevant information on the product
cover into the application.
Function
• When the battery is inserted, the detector sends an initial message, the LED blinks.
• Activation occurs when the magnet is attaching / removed from the sensor.
• The detector sends a data message every 12 hours. In case of a state change, it
sends the data message immediately.
• In case of an open box, every movement of the magnet in/out is indicated by the blink-
ing of the LED. In the case of a weak battery when moving in / out of the magnet is
indicated by the LED flash twice.
• Alarm - when the magnet is moved to the detector, an audible alarm will sound for 2
seconds.
1. Antenna
2. Magnetic contact
3. Battery
4. Tamper
5. Magnet
AirWD-100S
Magnetic detector (indoor)
General instrucions
Internet of Things (IoT)
• The IOT wireless communications category describes the Low Power Wide Area
(LPWA). This technology is designed to provide full-range coverage both inside and
outside buildings, energy-saving and low-cost operation of individual devices. The
Sigfox network is available to use this standard.
Sigfox network information
• The network supports bidirectional communication but with a limited number of feed-
backs. It uses the free frequency band divided by Radio Frequency Zones (RCZ).
• RCZ1 (868 MHz) Europe, Oman, South Africa
• RCZ2 (902 MHz) North America
• RCZ3 (923 MHz) Japan
• RCZ4 (920 MHz) South America, Australia, New Zealand, Singapore, Taiwan
• Sigfox has more coverage across countries, so it is better suited for long distance mo-
nitoring.
• For more information on this technology, please visit www.sigfox.com.
Caution for proper operation:
• Products are installed according to the wiring diagram given for each product.
• For proper device functionality, it is necessary to have suffi cient coverage of the selec-
ted network at the installation site.
• At the same time, the device must be registered in the network. Successful device re-
gistration on a given network requires a charge for traffi c.
• Each network off ers diff erent tariff options - it always depends on the number of me-
ssages you want to send from your device. Information on these tariff s can be found in
the current version of the ELKO EP pricelist.
Assembly
Detector
1
3c 4
1. Push the screwdriver into the hole at the bottom of the detector, slide the upper cover
by pulling it up and open the detector.
The product can be attached in two ways:
2. Directly on a fl at surface by gluing * - Apply a suitable adhesive to the outside of the base.
Place the base at the desired location (moving window or door leaf ) and allow to dry.
3. Using a suitable fastener ** by screwing
a) Lower the molding at the bottom of the machine and pull it out of the base.
b) Break and remove the screw plugs (e.g. with a Screwdriver).
c) Drill the two holes of the appropriate diameter corresponding to the position of the
holes in the bottom of the box in the required position (moving wing of the window or
door). Place the base at the desired location and attach it with suitable bonding mate-
rial according to the substrate. Click the unit into the base.
4. Remove the insulation foil, check the correct placement of the battery (the detector
functionality message will be sent to the application).
5. Insert the top cover of the cover into the hole in the lower cover and snap it into place.
1 / 3
3a
3b
5
-
+
EN
-
+
Click!
