HARDWARE DESCRIPTION
Kit# HWKT-00032X
M8 – 1.25 HX FLANGED NUT
3/8" x ¾" carriage bolts
3/8" Flanged nuts
Step 1: Starting with the driver side, remove any steps and old hardware from the vehicle.
12302 Shiloh Church Rd. Houston TX 77066 Phone (281) 880-6322 - Fax (281) 880-6325
EXD19CC-TX
PART NUMBER
:
PRODUCT: EPYX HOOP STEP
2019- C RAM 1500
APPLICATION:
2017-18 F-250, f-350
QTY.
PARTS INCLUDED
Step Rail
18
Rocker Panel mounting Brackets
12
RECOMMENDED TOOLS
12
RATCHET
13mm deep socket
9/16 socket
QTY
2
6
Advertisement
Related Manuals for Truck Hero n-FAB EPYX HWKT-00032X
Summary of Contents for Truck Hero n-FAB EPYX HWKT-00032X

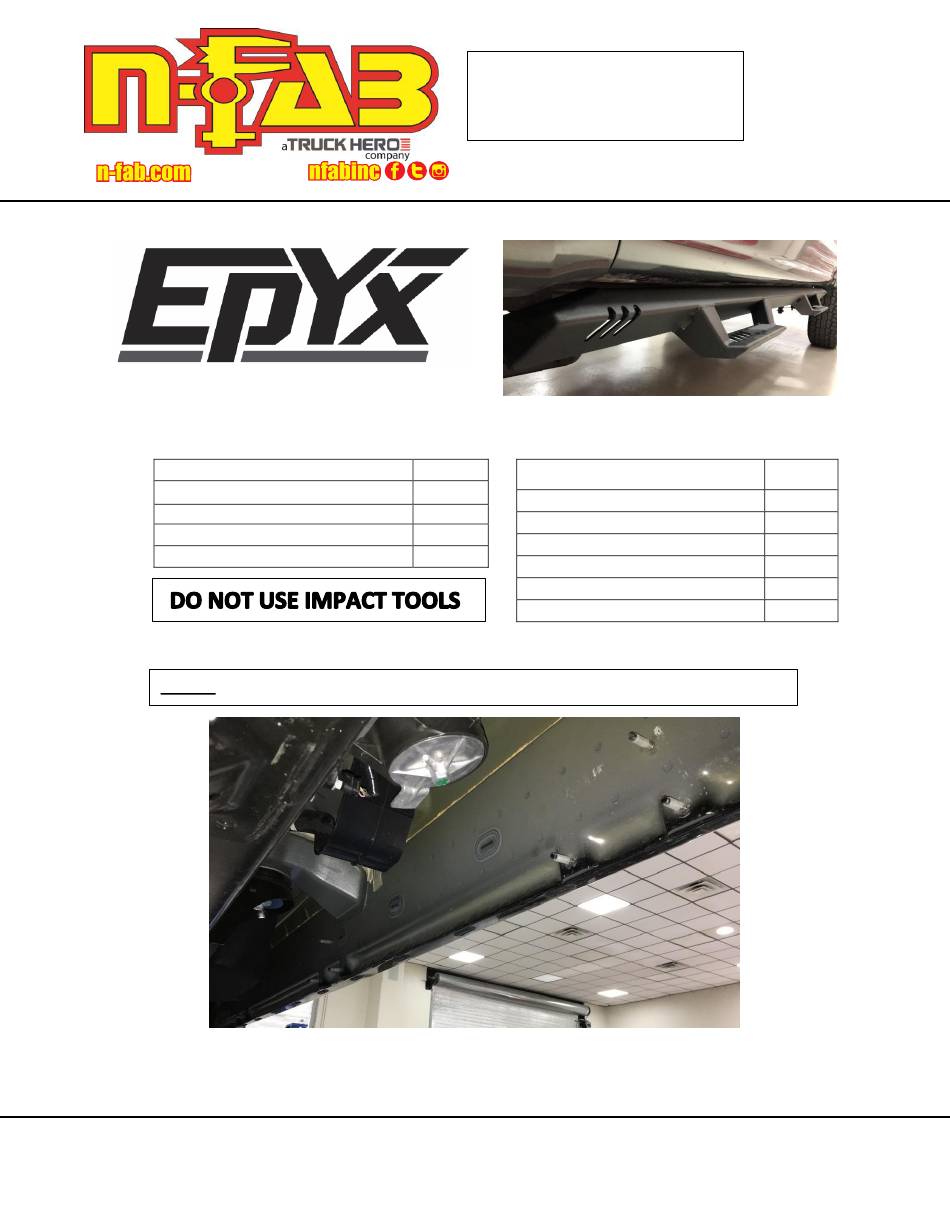

- Page 1 EXD19CC-TX PART NUMBER PRODUCT: EPYX HOOP STEP 2019- C RAM 1500 APPLICATION: 2017-18 F-250, f-350 HARDWARE DESCRIPTION QTY. PARTS INCLUDED Kit# HWKT-00032X Step Rail M8 – 1.25 HX FLANGED NUT Rocker Panel mounting Brackets 3/8” x ¾” carriage bolts RECOMMENDED TOOLS 3/8”...
- Page 2 Step 2: Locate the driver side step rail. Front Passenger Side Driver side Step 3: Install three rocker panel brackets to the attachments points located on the backside of the channel using the supplied 3/8” x ¾” carriage bolts and 3/8” flanged nuts. Leave finger tight for now.
- Page 3 EXD19CC-TX PART NUMBER PRODUCT: EPYX HOOP STEP 2019- C RAM 1500 APPLICATION: 2017-18 F-250, f-350 Step 4: On the inside rocker panel there will be three-attachment point consisting of three 8mm studs coming out from the panel. These studs may be covered in paint and will need to be cleaned before the installation.
- Page 4 Step 6: Next, adjust the step assembly up/down and front/back to level out the step rail with body panel and then tighten step to brackets at 30 ft. /lbs. Step 7: Adjust the step rail to where you have approximately ¼” gap between the body of the vehicle and the top of the rail.
