INSTALLATION INSTRUCTIONS
2017 Honda Ridgeline Mounting Rails
Tools Required:
T50 Torx driver
7/16" Wrench
Remove the 4 upper tie-down hooks. Keep the 8 Torx bolts, but do not reuse the tie-down hooks.

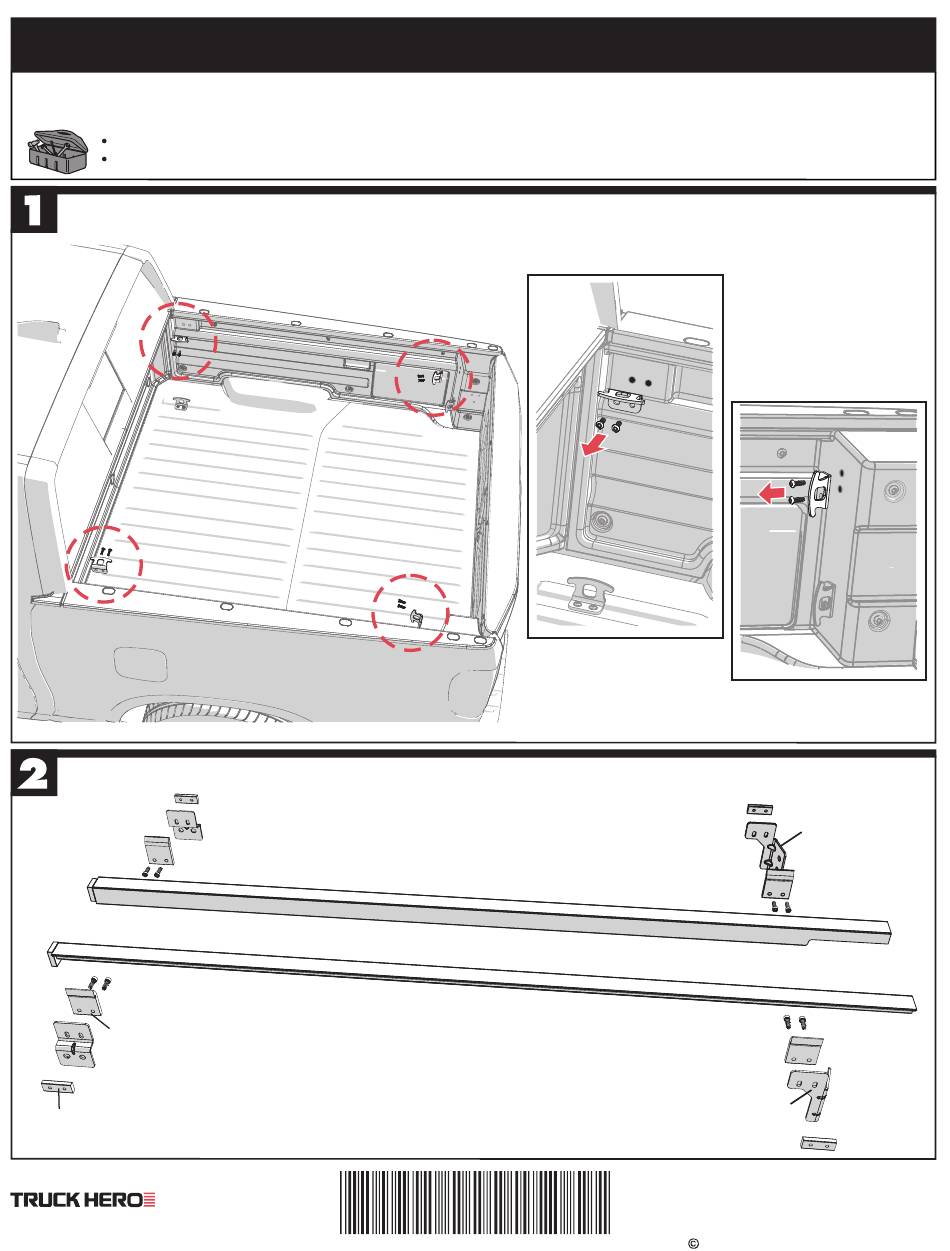

Universal Kit # S21001010. Align the parts for assembly as shown.
Screws, 1/4-20 x 3/4LG S.H.C.S
Rail Bracket
Front (cab) Bracket
(notice the slotted holes are on the top)
Tap Plate
5400 S. State Road
Ann Arbor, MI 48108
IMPORTANT- INSTALL THESE RAILS FIRST
Front, upper tie-down hooks.
Both sides.
Mounting Rail Right (passenger)
Mounting Rail Left (driver)
3 1 8 3 0 0 0 4 - 3 0
Rear, upper tie-down hooks.
Both sides.
Rear (tailgate) Bracket Left
truck-hero.com
I t e m N o . 3 1 8 3 0 0 0 4 - 3 0 - 1 6 1 0 DD
Truck Hero, Inc., 2016 Printed in U.S.A.
Rear (tailgate)
Bracket Right,
(Notch is at the
tailgate end)
