HARDWARE DESCRIPTION
KIT# HWKT-10010X
M8x30mm flanged hex bolt with washer
M8x25mm Flanged hex head bolt ( Black zinc)
M8 flanged nuts
10MM Carriage bolt
10MM Flanged nut
PARTS INCLUDED
DRIVER SIDE
PASSENGER SIDE
Mounting bracket
DRIVER
12302 Shiloh Church Rd. Houston TX 77066
REVISION - -
QTY.
6
12
12
12
12
QTY
1
1
6

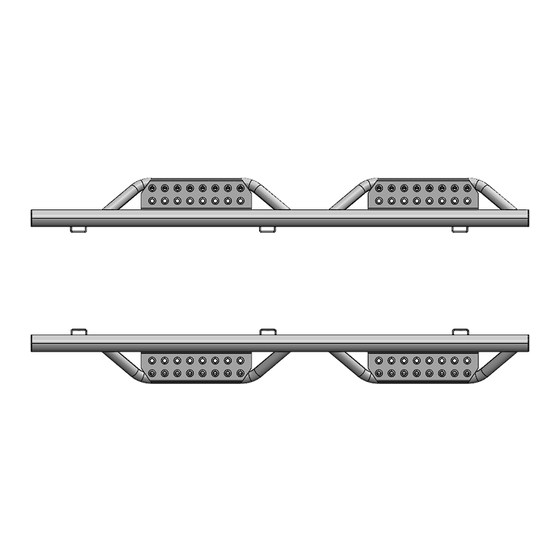

Step 1. Identify the driver side step.
Phone (281) 880-6322 - Fax (281) 880-6325
© 2018 N-FAB, INC.
I-SHEET PART NUMBER: INST-00256
PART NUMBER: 518416612
PRODUCT: HOOP STEEP
APPLICATION: JEEP JL 4 DOOR
REVISION DATE 04/26/19
Advertisement
Related Manuals for Truck Hero n-FAB INST-00256
Summary of Contents for Truck Hero n-FAB INST-00256
- Page 1 I-SHEET PART NUMBER: INST-00256 PART NUMBER: 518416612 PRODUCT: HOOP STEEP APPLICATION: JEEP JL 4 DOOR HARDWARE DESCRIPTION QTY. KIT# HWKT-10010X M8x30mm flanged hex bolt with washer M8x25mm Flanged hex head bolt ( Black zinc) M8 flanged nuts 10MM Carriage bolt 10MM Flanged nut PARTS INCLUDED DRIVER SIDE...
- Page 2 Install the (x6) mounting brackets to each attachment point on the main tube and Step 2. leave loose for now. 12302 Shiloh Church Rd. Houston TX 77066 Phone (281) 880-6322 - Fax (281) 880-6325 REVISION - - © 2018 N-FAB, INC. REVISION DATE 04/26/19...
- Page 3 I-SHEET PART NUMBER: INST-00256 PART NUMBER: 518416612 PRODUCT: HOOP STEEP APPLICATION: JEEP JL 4 DOOR Step 3. Remove the factory running board and discard. Step 4. Carefully raise step up into position and align the brackets with the factory mounting points with the horizontal part of the bracket on the outside of the pinch weld.
- Page 4 Step 9. First, tighten all the hardware that attaches the bracket to the pinch weld of the vehicle. Step 10. Next, tighten the remaining hardware that attaches the bracket to the upper body mount. Step 11: After finial adjustment, tighten all three brackets at the main tube.
