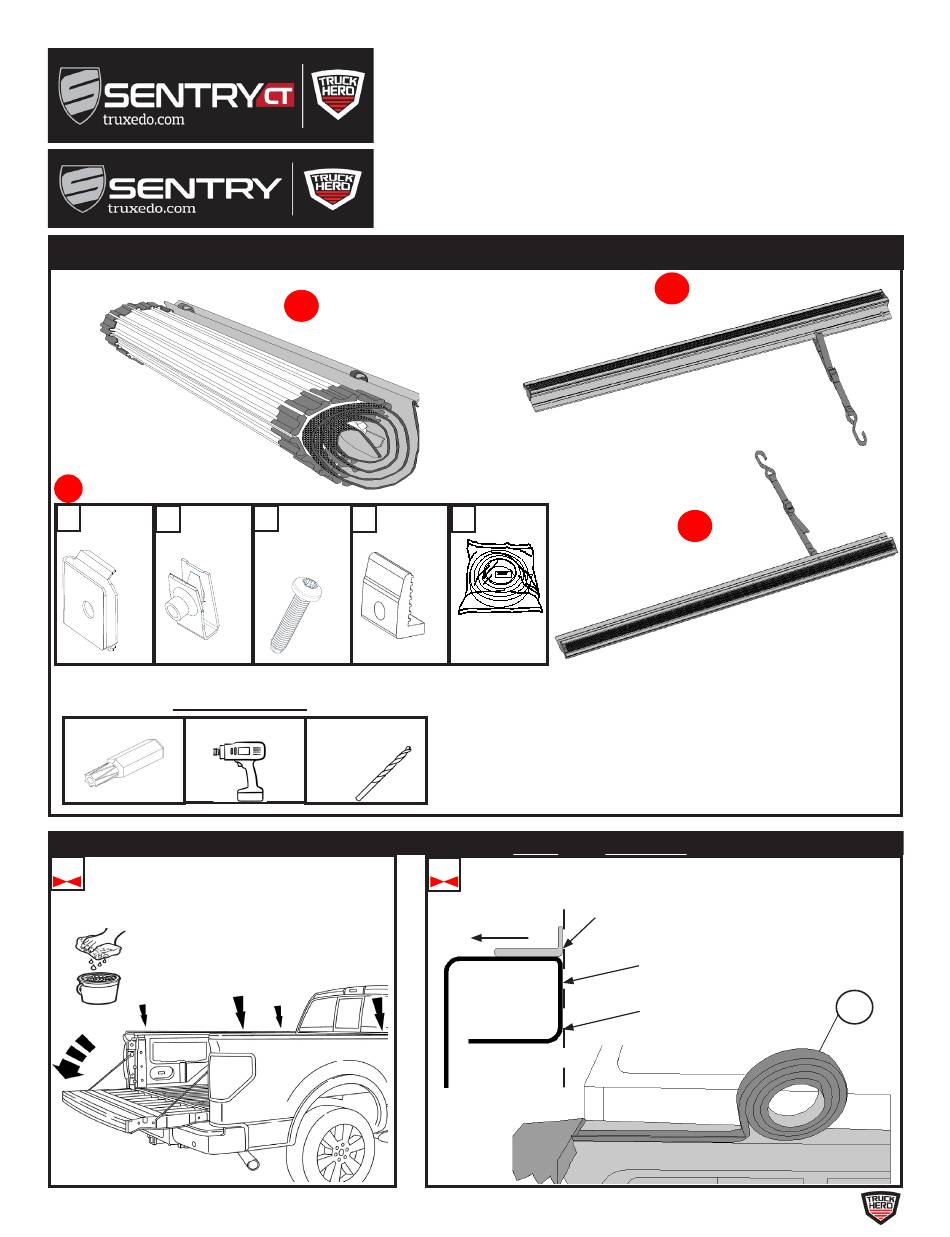

Installation Parts Include:
D1
D2
J-Nut
Drill Guide
2X
10X
Tools Required:
T30 Torx drive
Drill
WEATHER SEAL INSTALLATION FOR TRUCKS WITH AND WITHOUT TRAIL RAILS:
1
1
It is important that all areas where
the bed cover mounts are clean and
free of debris prior to installing.
TruXedo Inc. • 2209 Kellen Gross Drive, Yankton, SD 57078 • 877-878-9336 • truxedo.com ©TruXedo Inc. 2020
-
Please read manual throughly before installing this kit.
Failure to install cover properly will void wrarranty.
- Use picture keys below to verify componets found in shipping
box and hardware bags.
- Damaged or missing parts? Call 1-877-878-9336 Mon - Fri 8 am-5
pm CT. Parts will be shipped to you factory direct. Do not return kit
to place of purchase.
COMPONENTS
C
Cover
D4
D3
Clamps
Button head
M6 x 30MM
12X
12X
7.00 mm(9/32")
drill bit
FRONT (Cab)
Page 1
OWNER'S MANUAL
D5
Weather
Seal
1
2
Install the bulkhead seal supplied in the shipping box.
Bulkhead Seal
A
Driver Rail
B
Passenger Rail
Position bulkhead seal
flush with the inside
edge of bulkhead.
bulkhead on inside of
truck bed.
Cab
Part# 1118565, Rev. A
D5
