Table of Contents

A

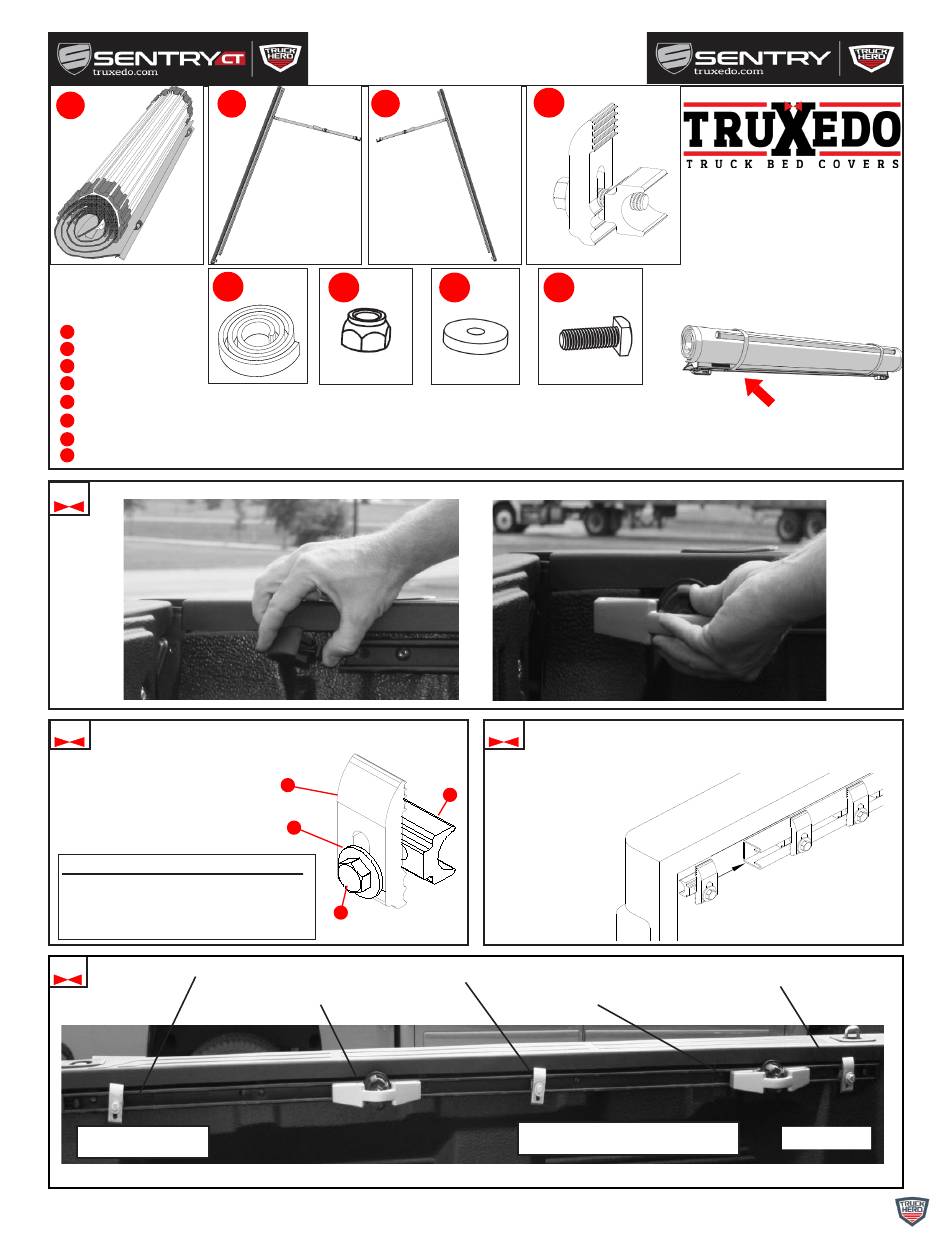

PARTS INCLUDED
IN YOUR KIT:
Driver side rail
A
Passenger side rail
B
Cover assembly
C
6x clamps
D
Bulkhead seal (on select make/models)
E
2x Hex Nuts
F
2x Plastic washers
G
2x Square Head Screws
H
1
Remove the rear cargo rail end plugs and remove the cargo tie down if installed.
2
Assemble clamps as shown below.
Item Part #
Description
1. 1706408 MALE CLAMP
2. 1703889 FEMALE CLAMP
3. 1701208 CAP SCREW 5/16" X 1 1/4"
4. 1700428 FLAT WASHER 5/16"
4
Position clamp here
Tailgate end
TruXedo Inc. • 2209 Kellen Gross Drive Yankton, SD 57078 • 877-878-9336 • truxedo.com ©TruXedo Inc., 2021

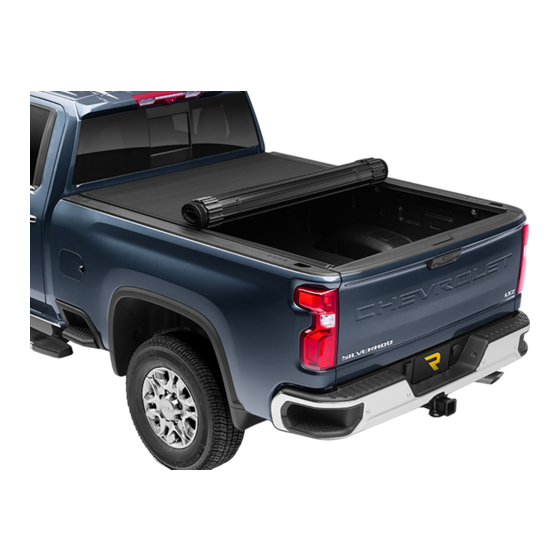

OWNER'S MANUAL
B
C
Rail, Passenger
Rail, Driver Side
Side
E
F
1
4
3
Position clamp here
Position Rear tie down here
D
G
H
The serial number for the cover is located here.
For future reference, write it here:
___________________________________.
3
Slide clamps into cargo rail as shown below. Evenly space
the clamps (see step 4). Tie down cleats can be reinstalled
at this time, if desired. Leave clamps loose at this time.
Reinstall cargo rail end plugs.
2
Repeat steps 1-4 for
passenger side clamp
installation.
Position Front tie down here
Three clamps per side needed.
1
Damaged or missing parts?
877-878-9336 Mon - Fri 8 a.m. - 5
p.m. CT. Parts will be shipped to
you factory direct. Do not return
6x
kit to place of purchase. To view
install video visit truxedo.com/
lopro
Position clamp here
Front of box
Part# 1118738 Rev. A 01.14.2022
Call

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TruXedo Sentry CT and is the answer not in the manual?

Questions and answers

Related Manuals for Truck Hero TruXedo Sentry CT

Summary of Contents for Truck Hero TruXedo Sentry CT

  • Page 1 OWNER'S MANUAL Damaged or missing parts? Call 877-878-9336 Mon - Fri 8 a.m. - 5 Rail, Passenger Rail, Driver Side Side p.m. CT. Parts will be shipped to you factory direct. Do not return kit to place of purchase. To view install video visit truxedo.com/ lopro PARTS INCLUDED...
  • Page 2 SIDE RAIL INSTALLATION Clean area before install. Position rail “B” on driver side of truck box centered between tailgate and cab. FRONT (Cab) FRONT (Cab) REAR (Tailgate) REAR (Tailgate) Align rail so foam is compressed equally on both sides. Compress foam spacer approximately 50% Compress foam spacer approximately 50% 3/8”...
  • Page 3 For optimal latching performance and cover fit, the side rails (A & B) should be level with LEVEL the truck bed caps and not tilted up or down. Tighten all clamps with a 1/2” wrench or socket. WARNING Side Rail Tighten clamps securely Level With Bed...

  • Page 4: Closing The Cover

    The front header seal is designed to sit on top of the front bulkhead and help shed water. Attach and tighten washer (G) and nut (F) to the square head screws as shown. Front Side View Header Seal 9/16” deep well socket and ratchet will be needed Bulkhead...

  • Page 5: Opening The Cover

    To secure the hook and loop grab the fabric and pull Once the side of the hook and loop are engaged, use the evenly over the hook track to engage the hook and loop. palm of your hand to firmly push the loop strip into the hook trackthe entire length of the cover.

  • Page 6: Cover Maintenance

    To drive with the cover in the open position, secure the cover by placing both retainer hooks into the retainer loops. You are ready to drive with the cover in the open position. CAUTION ROLL COVER TIGHT. SECURE THE COVER APPROPRIATELY USING BOTH RETAINER DO NOT DO NOT STRAPS.
  • Page 7 TOYOTA TUNDRA SENTRY / SENTRY CT REPLACEMENT PARTS 1 ___*___ Sentry/Sentry CT Replacement Cover 13 ___*___ Side Rail, Passenger’s Side 24 1705826 Rear Header End Plug (Passenger) 2 ___*___ Header Seal, Front 14 ___*___ Side Rail, Driver’s Side 25 1705825 Rear Header End Plug (Driver) 3 ___*___ Header Seal, Rear 15 1705851 SIDE RAIL END PLUG ASSY_RH 26 1701580 Hex Nut 3/8 Locking...

  • Page 8: Important Operating Tips

    OWNER/USER RESPONSIBILITIES: OWNER/USER RESPONSIBILITIES: It is the responsibility of the owner/user to read this manual and comply with the operating procedures. The owner/user is also It is the responsibility of the owner/user to read this manual and comply with the operating procedures. The owner/user is also responsible for inspecting the Sentry/ Sentry CT cover and for having parts repaired or replaced when worn or damaged.
  • Page 9 IMPORTANT OPERATING TIPS CONTINUED: - After the initial installation leave cover closed and latched for a 24 hour period. This will insure that the fabric has After the initial installation leave cover closed and latched for a 24 hour period. This will insure that the fabric has taken a complete set to the metal substrate.
  • Page 10 IMPORTANT OPERATING TIPS CONTINUED: Setting The Hook and Loop Before Operating Vehicle. Engaging Hook and Loop, Step Two: With the cover closed Engaging Hook and Loop, Step One: After rolling the cover and both hook and loop engaged, use the palms closed, grab the fabric loop flap and evenly pull of your hand to firmly push the loop strip into the loop over the hook track engaging the loop to the...
