Omix-Ada Rugged Ridge Alloy 13579.08 Manual

460 HORIZON DR. SUITE 400 | SUWANEE, GA 30024 | PHONE: 770-614-6101 | FAX: 770-614-6069 | info@omix-ada.com
JEEP WRANGLER
Contents:
• Eclipse Sun Shade
• Mesh Storage Bag
NOTE: The Eclipse Sun Shade has been
designed to remain in place with soft top
closed and latched.

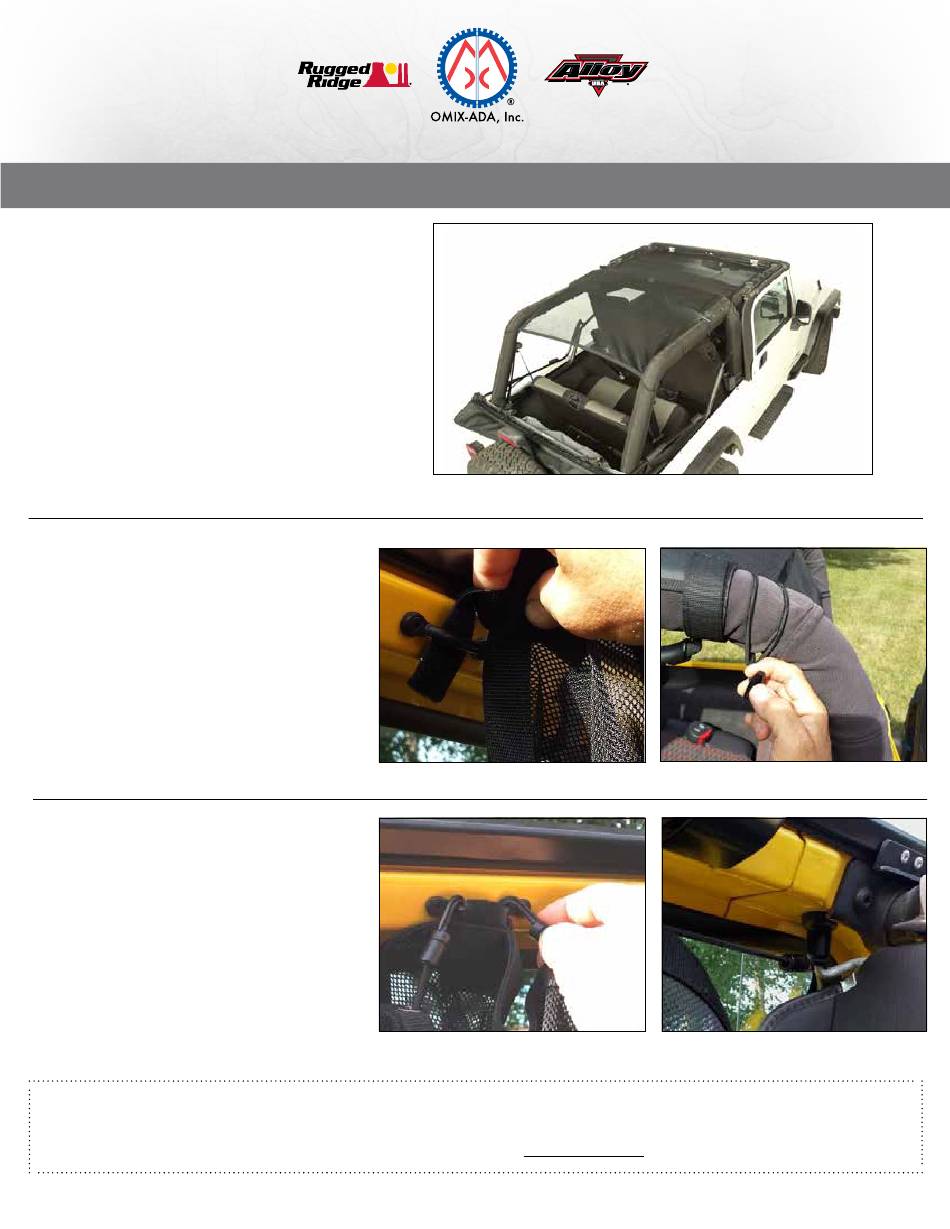

1. Before installing flip soft top to
Sunrider feature or lower top to full
down position. Slide center Velcro strap
through windshield footman loop and
secure (fig.1). Loop rear most Bungee
straps over factory sports bar and back
over strap button (fig.2).
2. Attach bungee hooks to windshield
footman loop (fig.3). Flip down sun vi-
sors and attach bungee hooks to visor
arms as shown (fig.4). Lock visor back in
place and flip up.
NOTE: Later model TJs and LJs have
center footman loop placed higher on
windshield frame. Installation will be
the same for these years (2003 -2006).
ECLIPSE SUN SHADE (1997-2006 TJ-LJ )
®
OMIX-ADA
PHONE: M-F 8am - 5pm EST 1-800-449-6649 | EMAIL: techsupport@omix-ada.com
FOR WARRANTY INFORMATION VISIT: www.Omix-Ada.com
Copyright © 2013 Omix-Ada
Figure 1
Figure 3
TECHNICAL SUPPORT
®
® , Inc.
Page 1/2
13579.08, 13579.09
Figure 2
Figure 4
