460 HORIZON DR. SUITE 400 | SUWANEE, GA 30024 | PHONE: 770-614-6101 | FAX: 770-614-6069 | www.omix-ada.com

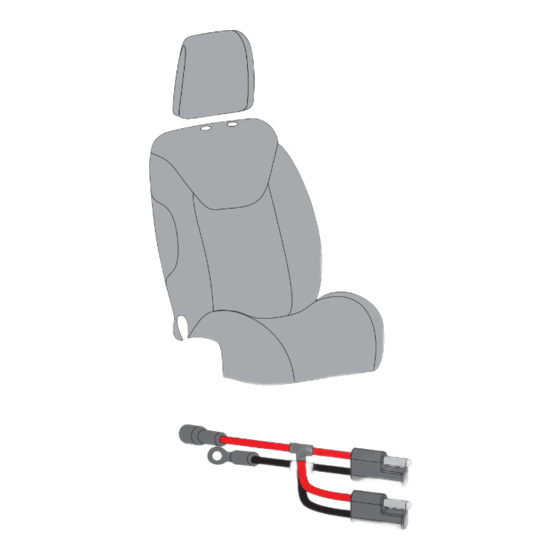

1. Head Rest Cover

2. Heated Seat Cover, Left

3. Heated Seat Cover, Right

To reduce risk of accident injury: Follow all vehicle manufacturer's instructions regarding

WARNING

side air bag safety messages along with application and installation instructions for your

Rugged Ridge Elite Heated Seat Cover.

- Fit and maintain sides of seat cover as tight to seat as possible, always matching front to side seam of seat

with similar panels and seams of seat cover.

- Do not use and replace if seat cover becomes damages or wear no longer allows tight fit to seat sides.

Heated Elite Ballistic Seat Cover

OMIX-ADA

PHONE: M-F 8am - 5pm EST 1-800-449-6649 | TICKET: www.omixsupport.com

FOR WARRANTY INFORMATION VISIT: www.Omix-Ada.com

Components

(2)

4. Wiring Harness

(1)

5. Fuse Tap

(1)

TECHNICAL SUPPORT

, Inc.

Page 1/5

Part # 13216.03

13216.04

(1)

Need help?

Do you have a question about the Rugged Ridge Alloy 13216.03 and is the answer not in the manual?

Page 1 Page 1/5 Part # 13216.03 13216.04 460 HORIZON DR. SUITE 400 | SUWANEE, GA 30024 | PHONE: 770-614-6101 | FAX: 770-614-6069 | www.omix-ada.com Heated Elite Ballistic Seat Cover Components 1. Head Rest Cover 4. Wiring Harness 2. Heated Seat Cover, Left 5.
Page 2 Page 2/5 460 HORIZON DR. SUITE 400 | SUWANEE, GA 30024 | PHONE: 770-614-6101 | FAX: 770-614-6069 | www.omix-ada.com Heated Elite Ballistic Seat Cover 1. Remove headrest from seat. 2. Slide cover over top of front seat. 3. Push rear buckles, wiring, and fabric through crease in bottom of seat.
Page 3 Page 3/5 460 HORIZON DR. SUITE 400 | SUWANEE, GA 30024 | PHONE: 770-614-6101 | FAX: 770-614-6069 | www.omix-ada.com Heated Elite Ballistic Seat Cover 6. Fit rear side fabric around seat adjustment knob and fasten hook and loop strips. 7. For 2007-2010 models, slide Head Rest Covers over head rests.
Page 4 Page 4/5 460 HORIZON DR. SUITE 400 | SUWANEE, GA 30024 | PHONE: 770-614-6101 | FAX: 770-614-6069 | www.omix-ada.com Heated Elite Ballistic Seat Cover 10. Remove driver side dashboard panel. 11. Using long screwdriver, poke hole through body filler foam and route red power wire through new hole.
Page 5 Page 5/5 460 HORIZON DR. SUITE 400 | SUWANEE, GA 30024 | PHONE: 770-614-6101 | FAX: 770-614-6069 | www.omix-ada.com Heated Elite Ballistic Seat Cover 14. Open fusebox and replace M9 fuse (RR Heated Seat - 20A) with supplied Fuse Tap. Drill 1/4” hole in side of fuse box nearest engine and route Fuse Tap through.
