Homelegance 2601-24 Assembly Instruction

1
PART LIST FOR 1 CHAIR:
l:Chair Frame L&R 2:Chair Back
2 PCS 1 PC

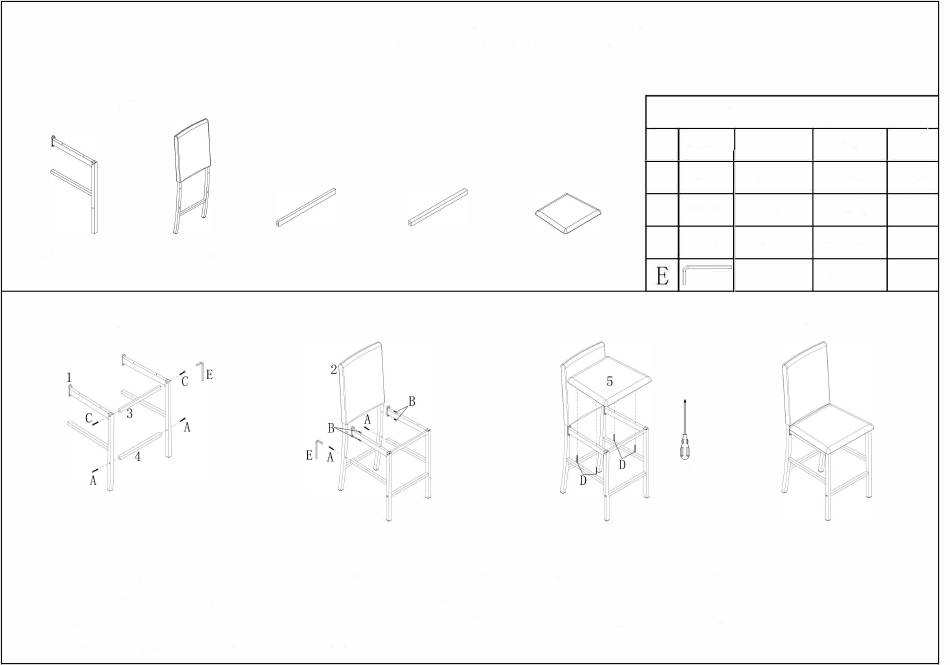

STEP 1
(1) Attach L&R chair frame to the front top rail and stretcher, insert bolt (A&C) then tighten with Allen key (E).
(2) Attach chair back to the chair frame, insert bolt (A&B) then tighten with Allen key (E).
(3) Attach seat cushion onto the chair frame, insert screw (D) and tighten with screwdriver (Not provided).
(4) Check and tighten all the bolts completely.
1
ASSEMBLY INSTRUCTION
COUNTER HEIGHT CHAIR
3:Front Top Rail 4:Front Stretcher
1 PC 1 PC
STEP 2
1
1
5:Seat Cushion
1 PC
STEP 3
1
HARDWARE LIST FOR 1 CHAIR
[}-
A Long Bolt 1/ 4"*38mm
B
0-
Long Bolt l/4"*19mm
C
[)w-@taa Long Bolt l/4"*43mm
D
5mm*56mm
Screw
i}numnmnnmnmnnmnmnw
L-Allen Key 4mm
COMPLETED
Not Provided
4 PCS
4 PCS
2 PCS
4 PCS
1 PC
1/2
