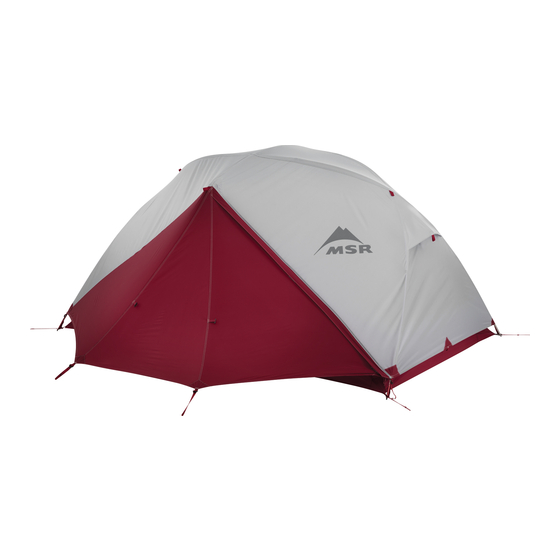

MSR ELIXIR 2 Assembly Instructions

81-242-1
PACKAGE INCLUDES:
Frame assembly, tent body, rainfly, stakes, MSR
P R EPA R E F O R S ET UP
1. Spread tent out and stake out four corners tightly.
2. Assemble poles.
AT TA C H R I D GE PO L E
1. Insert red ridge pole into red grommets above doors, making
sure ridge pole rests on top of both red and gray main poles.
USE TIPS: All tents require staking; unsecured tents are susceptible
to wind damage. In some conditions, additional stakes and cord
may be required. Re-adjustment of stakes and rainfly may be
necessary to keep tent tight and weatherproof. For complete care
and use instructions, refer to the Owner's Manual (available at
www.msrgear.com/Elixir2).
EL IXIR
Assembly Instructions
Footprint
®
1. Insert each red pole tip of main poles into grommets on the stake
2. Insert each gray pole tip of main poles into grommets on the
3. Attach color-coded clips to like-color pole along entire length of
1. Lay rainfly over tent. Attach rainfly's midpoint grommets to
2. Stretch out vestibules until taut and stake down, making sure
M
O U N T A I N
2
™
ASSEMBLE T ENT
loops with red webbing.
stake loops with gray webbing.
frame assembly.
ATTACH RAI NFLY
ridge pole.
seams align with frame.
