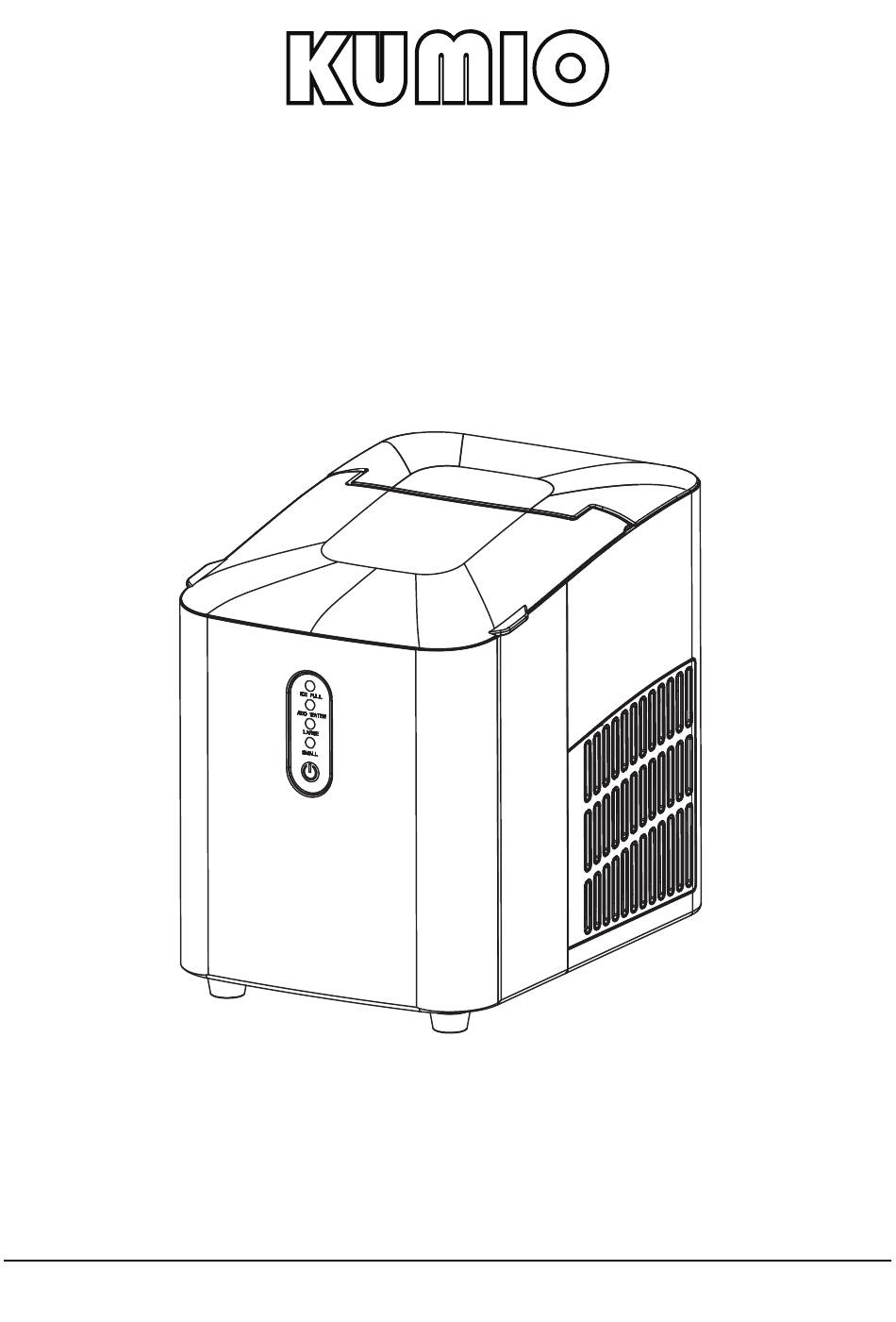

- Page 1 ICE MAKER INSTRUCTION MANUAL Model: ICM1260 THANK YOU FOR CHOOSING OUR ICE MAKER PLEASE READ THE MANUAL CAREFULLY BEFORE OPERATING...
-
Page 3: Important Notices
IMPORTANT NOTICES When using an electrical appliance, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury, including the following: 1. Read all instructions before using. 2. Remove all packing material and carefully check your ice maker to ensure it is in good condition and that there is no damage to the ice maker or power cord and plug. - Page 4 environments; –farm houses and by clients in hotels, motels and other residential type environments; –bed and breakfast type environments. 6. –Warning: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. –WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
- Page 5 heat releasing. 14. Do not use the accessories which are not recommended by Manufacturer. 15. Do not use the appliance close by flames, hot plates or stoves. 16. Do not switch on the power button frequently (ensure 5min. interval at least) to avoid the damage of compressor. 17.
-
Page 6: Specifications
SPECIFICATIONS Model Number: ICM1260 Voltage: 110-120V/60Hz Power Consumption: 120 W Daily Ice Output: 12kg/24 hours Ice Storage Capacity: 1.0L/600g Water Reservoir Capacity: 1.0L N.W: 14.37lbs/6.52kg G.W: 15.54lbs/7.05kg Compression-Type Refrigeration: 110-120V/60Hz Cooling Agent: R600a environmental friendly refrigerant Max Overall Dimensions (WXDXH): 206X268X282mm... - Page 7 DESCRIPTION 1. Transparent lid 7. Top Lid 2. Micro switch support 8. Evaporator 3. Ice collecting tray 9. Ice shovel board 4. Water tank 10. Rear housing 5. Control panel 11. Air vent 6. Front Housing 12. Ice scoop...
- Page 8 FEATURE Quick ice making Prompt when the ice is full and water is insufficient Bullet transparent ice 8 pcs ice can be made in nine minutes 1. During transportation, do not tilt the machine more than 45 degrees, do not reverse the machine.
-
Page 9: Control Panel Operation
CONTROL PANEL OPERATION START/PAUSE button ICE FULL: Ice full alarm indicator light ADD WATER: Water shortage alarm indicator light CLEAN: Large ice indicator light ICE MAKING: Small ice indicator light 1. Plug in power, the machine is in standby mode, and the small ice indicator light flashes green. - Page 10 START/PAUSE button to start the machine, and then press the START/PAUSE button for 2 seconds. The machine enters the cleaning function, and the four lights flash alternately. Do not disconnect the power supply during cleaning. After cleaning, the machine will automatically enter the standby mode. 3.
- Page 11 CLEANING & USE GUIDANCE 1. Clean the inner liner, ice collecting tray, water tank and ice shovel frequently. When cleaning, unplug the unit and remove the ice cubes. Use a diluted solution of water and vinegar to clean the inside and the outside surface of the Ice maker. Rinse thoroughly before use.
-
Page 12: Troubleshooting
TROUBLESHOOTING Please note, if a power failure occurs due to disconnection of the power cord, or the power button has been pushed off during an ice making cycle, small ice chips may formed and lodge in the automatic shovel causing it to jam. If this occurs, the ice chips may be removed by disconnecting the power cord and gently pushing the shovel to the rear of the cabinet and removing the ice chips, then restarting. - Page 13 making 1. The compressor has no process refrigerant Call the service hotline correct, but no ice 2. Compressor damaged came out? 3. Fan motor damaged 1. The water box is blocked 1. Take out the ice under the ice by ice. shovel, plug in power again, and All indicator lights 2.
- Page 14 children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. 6. Children should be supervised to ensure that they do not play with the appliance.
- Page 15 We warrant warrant that that your your kumio kumio ice ice m ma a ker ker will will be be free free of of defec defect t s s in in...
