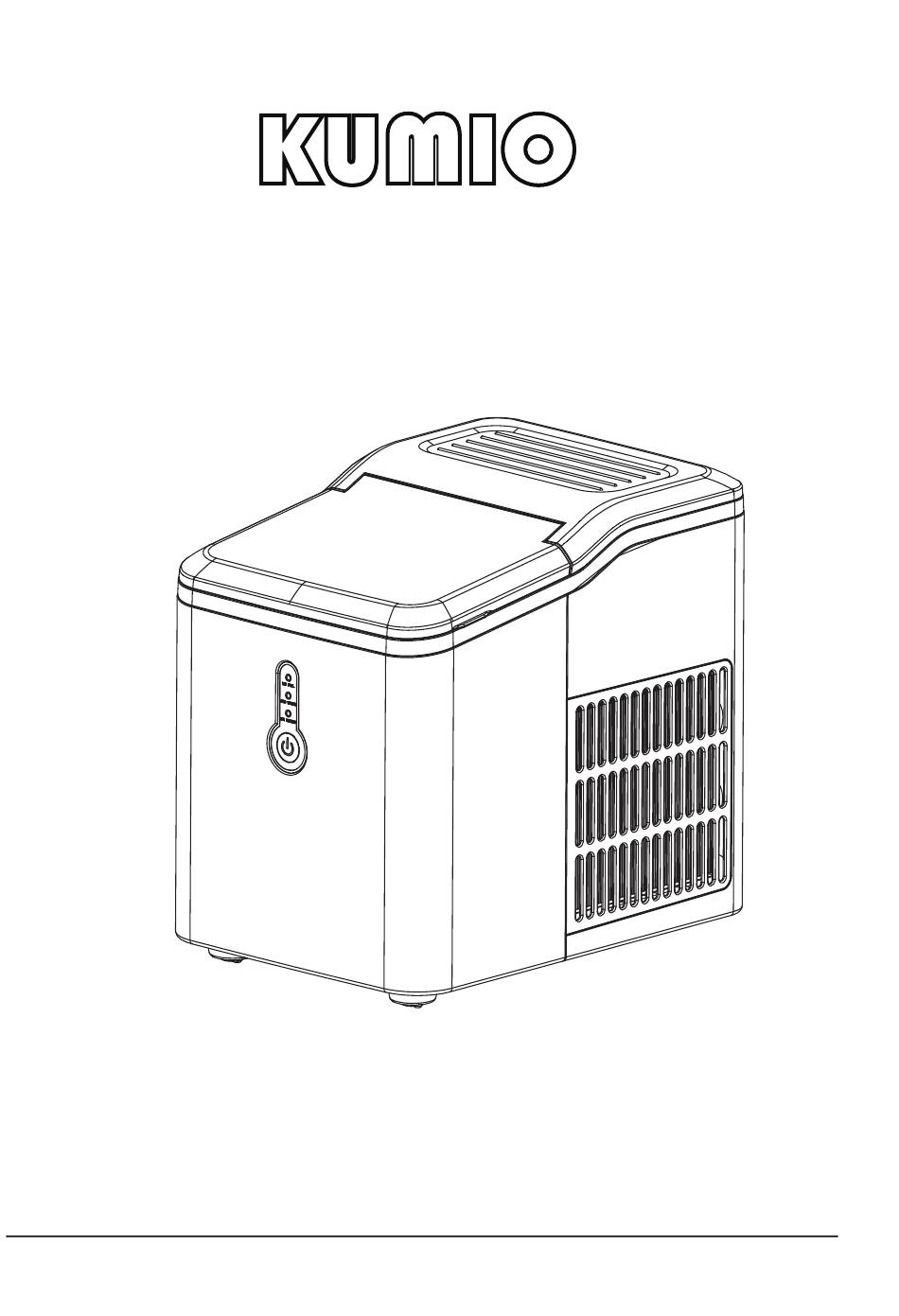

- Page 1 ICE MAKER INSTRUCTION MANUAL Model: ICM1221 THANK YOU FOR CHOOSING OUR ICE MAKER PLEASE READ THE MANUAL CAREFULLY BEFORE OPERATING...
-
Page 3: Important Notices
IMPORTANT NOTICES When using an electrical appliance, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury, including the following: 1. Read all instructions before using. 2. Remove all packing material and carefully check your ice maker to ensure it is in good condition and that there is no damage to the ice maker or power cord and plug. - Page 4 12. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Page 5 23. The refrigerant and insulation blowing gas is flammable, when disposing of the appliance, do so only at an authorized waste disposal centre. Do not expose to flame. This symbol indicates the refrigerant R600a and the non-metallic materials of the appliance are flammable. It’s a warning symbol.
-
Page 6: Specifications
SPECIFICATIONS Model number: ICM1221 Daily ice output: 26 lbs.(12kg) / 24 hours Ice storage capacity: 1.5L/600g Refrigerant: R600a environmental friendly refrigerant Compression-type refrigeration: 110-120V/60Hz Water tank capacity: 1.5 L Voltage: 110-120V~ Frequency: 60 Hz Power consumption: 120 W Max overall dimensions(W×D×H): 228X320X297mm Packing dimensions(L×W×H): 392(L)×304(W)×366(H)mm... - Page 7 DESCRIPTION 1. Micro switch support 9. Front housing 2. Evaporator 10. Ice shovel 3. Water Tray 11. Top cover 4. Ice shovel board 12. Transparent lid 5. Ice collecting tray 13. Motor Mount 6. Water box 14. Back housing 7. Control panel 15.
- Page 8 FEATURE Quick ice making Prompt when the ice is full and water is insufficient Bullet ice 9 pcs ice can be made in nine minutes 1. During transportation, do not tilt the machine more than 45 degrees, do not reverse the machine.
-
Page 9: Control Panel Operation
CONTROL PANEL OPERATION Power button ICE FULL: Ice full alarm ADD WATER: Water shortage alarm ICE MAKING: Ice making 1) Plug in the power, the ICE MAKING indicator light flashes, and the machine will start the deicing function. Press the POWER button, the ICE MAKING indicator light is always on and then the ice block will be made automatically. - Page 10 ICE FULL: Ice full alarm When the ice reaches the maximum capacity of the ice storage container, the ICE FULL light flashes, and the machine stops. At this time, the ice needs to be poured out. When the ice position is lower than the full sensor position, the machine will restart automatically.
- Page 11 CLEANING & USE GUIDANCE 1. Clean the inner liner, ice collecting tray, water box, ice shovel and evaporator frequently. When cleaning, unplug the unit and remove the ice cubes. Use a diluted solution of water and vinegar to clean the inside and the outside surface of the ice maker.
-
Page 12: Troubleshooting
ice basket filter cover TROUBLESHOOTING Please note, if a power failure occurs due to disconnection of the power cord, or the power button has been pushed off during an ice making cycle, small ice chips may formed and lodge in the automatic shovel causing it to jam. - Page 13 PROBLEM POSSIBLE CAUSE SUGGESTED SOLUTIONS The compressor works The voltage is lower than Stop the ice maker and do not restart abnormally with a recommended until the voltage is normal. buzzing noise 1.Add to some water until it reaches Water shortage indicator 1.There is no water MAX position light is on...
- Page 14 1. If the power cord is damaged; it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard. 2. Fill with potable water only. 3. It is normal for the compressor and condenser surface to reach temperatures between 70°C and 90°C during operation and surrounding areas may be very hot.
- Page 15 We warrant warrant that that your your kumio kumio ice ice m ma a ker ker will will be be free free of of defec defect t s s in in...
Need help?
Do you have a question about the ICM1221 and is the answer not in the manual?
Questions and answers
Won't make ice. Water doesn't stay in trough,just runs back into the water reservoir. Add water light then flashes add water when it is full of water
The likely issue with the Kumio ICM1221 ice maker not making ice and water running back into the reservoir is that the water reservoir is not level. When the reservoir is not flat, the ice shovel may not be able to move ice into the ice basket, and water may not be properly used for ice making. Ensure the reservoir is placed on a flat surface. If needed, gently push the ice shovel with your finger and press the POWER button to restart the machine.
This answer is automatically generated
how to change the filter when dirty
To change or clean the filter on the Kumio ICM1221 when it is dirty:
1. Remove the ice collection tray and the filter screen from the water tank as shown in the illustration.
2. Clean the filter screen with clean water to remove any debris or buildup.
3. Reinsert the cleaned filter screen and the ice collection tray back into the machine.
This answer is automatically generated
Is there a reset button on the Kumio Ice Maker Model ICM1221 and if so where? It was bought in December and recently quit working.
The provided context does not mention a reset button for the Kumio Ice Maker Model ICM1221 or its location.
This answer is automatically generated
