Summary of Contents for Kumio ICM1232

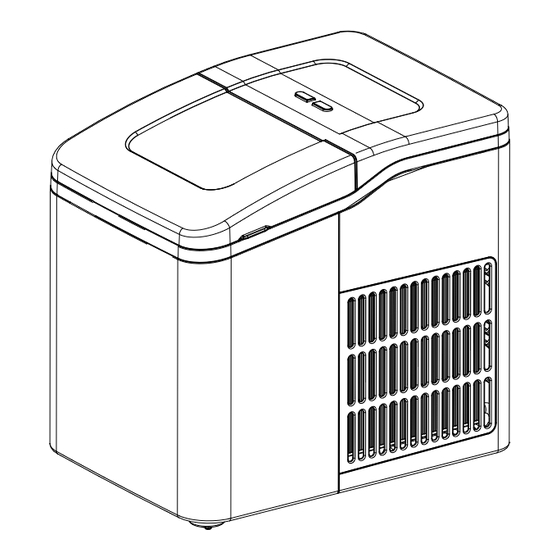

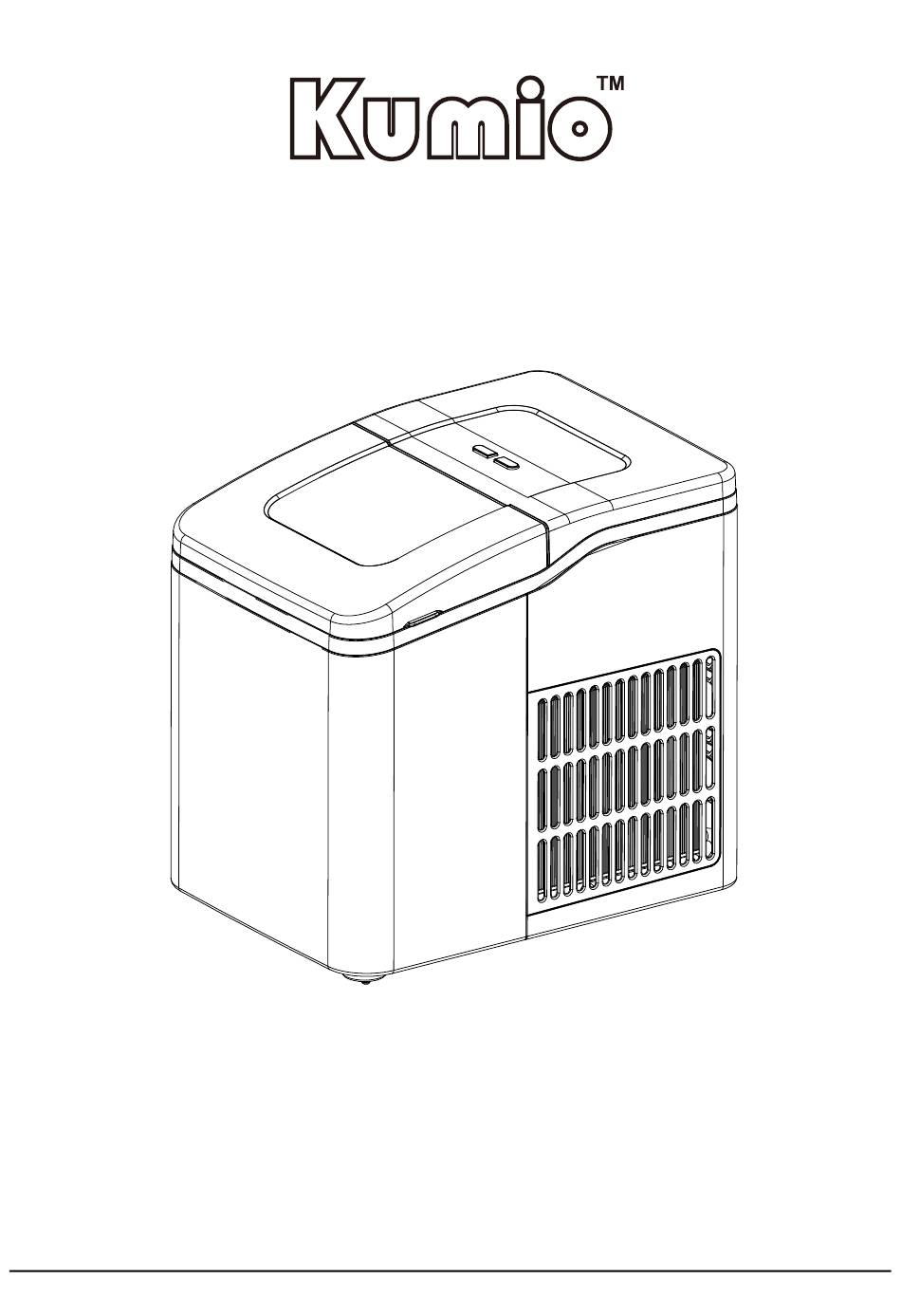

- Page 1 ICE MAKER INSTRUCTION MANUAL Model: ICM1232 THANK YOU FOR CHOOSING OUR ICE MAKER PLEASE READ THE MANUAL CAREFULLY BEFORE OPERATING...
-
Page 2: Important Notices
IMPORTANT NOTICES When using an electrical appliance, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury, including the following: 1. Read all instructions before using. 2. Remove all packing material and carefully check your ice maker to ensure it is in good condition and that there is no damage to the ice maker or power cord and plug. -
Page 3: Specifications
Regarding the information pertaining to the use of the appliance, thanks to refer to the below paragraph of the manual. SPECIFICATIONS Model number：ICM1232 Daily ice output：26 lbs.（12kg） / 24 hours Ice storage capacity：1.6L/850g Refrigerant：R600a Compression-type refrigeration:120V/60Hz Water tank capacity：1.5 L... - Page 4 DESCRIPTION Buttons Upper cover Transperent upper cover Bullet evaporator Water Tray Ice shovel board Ice basket Rear housing Front housing Ice shovel...
-
Page 5: Control Panel Operation
FEATURE Quick ice making Prompt when the ice is full and water is insufficient Bullet ice 9 pcs ice can be made in eight minutes Cleaning function 1. During transportation, do not tilt the machine more than 45 degrees, do not reverse the machine. This may damage the compressor and the sealing system. - Page 6 2). ADD WATER: water shortage alarm When the “ADD WATER” light turns red, it means that there is water shortage in the water tank. You need to add water and press the ON/OFF button to restart the machine. ICE FULL: Ice full alarm When the ice reaches the maximum capacity of the ice storage container, the "ICE FULL"...
-
Page 7: Troubleshooting
or diluted agents such as acids, gasoline or oil. Rinse thoroughly before starting. 2. Keep ventilation openings in the appliance enclosure, or in the built-in structure, clear of obstruction. Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. - Page 8 Water tray is blocked by ice cube Unplug the power to take out the ice The motor is stuck, or which blocking the tray, then plug the All indicators twinkle the motor falls off, or power and press the ON/OFF button, simultaneously the motor is damaged the machine will restart 3mins later.
Need help?
Do you have a question about the ICM1232 and is the answer not in the manual?
Questions and answers
Water tray does not level out. Its **** tilted.
If the water tray on the Kumio ICM1232 is tilted or not positioning correctly, it may be blocked by ice cubes. To fix this:
1. Unplug the machine.
2. Remove any ice blocking the water tray.
3. Plug the machine back in.
4. Press the ON/OFF button.
5. Wait 3 minutes for the machine to restart.
If the issue continues, the motor may be stuck, detached, or damaged, or the micro switch may be faulty. In that case, service may be required.
This answer is automatically generated
Starts the ice making process then shuts down and then ice full light starts flashing but makes no ice
The Kumio ICM1232 may start the ice-making process, shut down, and then flash the "ICE FULL" light without making ice due to a damaged ice full sensor or sunlight interference. The sensor may incorrectly detect that the ice storage is full, causing the machine to stop. To fix this, replace the ice full sensor or move the machine indoors away from direct sunlight.
This answer is automatically generated
How do I drain my icemaker?
To drain the Kumio ICM1232 icemaker, open the bottom drain plug to release excess water, then cover it with the transparent cover.
This answer is automatically generated
Add water light keeps coming on but it’s full
The "ADD WATER" light on the Kumio ICM1232 may keep coming on even when the water tank is full due to a sensor issue, improper placement of the water tank, or an obstruction in the water flow. Ensure that the water sensor is clean and functioning properly, the water tank is correctly positioned, and there are no blockages preventing water from reaching the system. If the issue persists, try restarting the machine by pressing the ON/OFF button after adding water.
This answer is automatically generated
The ice maker won’t **** in water
The Kumio ICM1232 ice maker may not fill with water due to the following reasons:

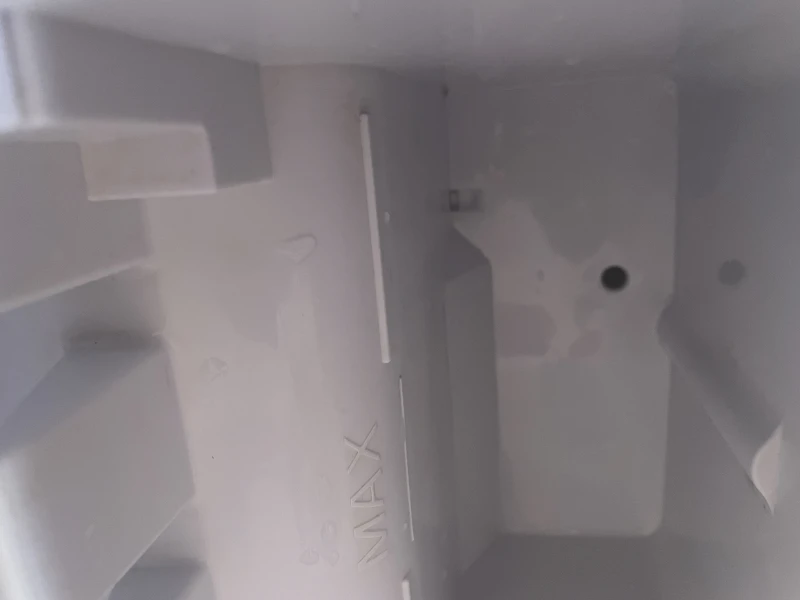

1. Water Level Exceeds MAX Position – If the water exceeds the MAX scale, the excess must be drained using the bottom drain plug.
2. Blocked Water Tray – Ice cubes may be blocking the water tray, preventing water from filling. Unplug the machine and remove the ice.
3. Motor Issues – The motor may be stuck, blocked, or damaged. Try restarting the machine by unplugging and then pressing the ON/OFF button after plugging it back in.
4. Micro Switch Malfunction – A faulty micro switch may prevent water from filling.
5. Solenoid Valve Failure – If the solenoid valve is broken, it will need to be replaced.
If the issue persists, checking and addressing these potential causes should help resolve the problem.
This answer is automatically generated
Will not **** up water saying to adf wayto add water
