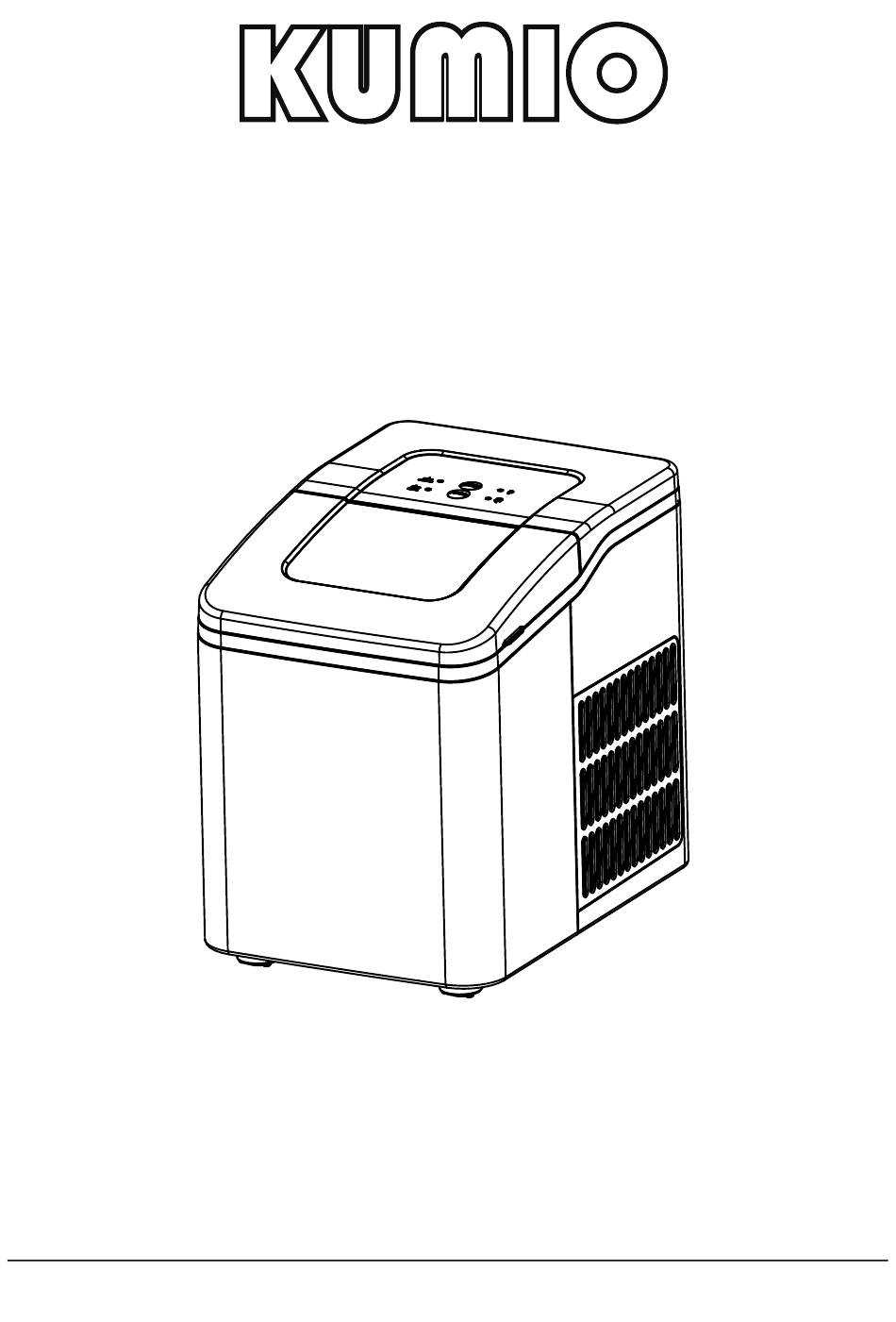

- Page 1 IC E MAKER INSTRUCTION MANUAL Model: ICM1234 THANK YOU FOR CHOOSING OUR ICE MAKER PLEASE READ THE MANUAL CAREFULLY BEFORE OPERATING...
-
Page 3: Important Notices
IMPORTANT NOTICES When using an electrical appliance, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury, including the following: 1. Read all instructions before using. 2. Remove all packing material and carefully check your ice maker to ensure it is in good condition and that there is no damage to the ice maker or power cord and plug. - Page 4 –bed and breakfast type environments; 6. –Warning: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. –WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged. –WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
- Page 5 18. Never clean with scouring powders or hard implements. 19. Please keep the instruction manual. 20. To avoid contamination of food, please respect the following instructions: – Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
-
Page 6: Specifications
SPECIFICATIONS Model number：ICM1234 Daily ice output：26 lbs.（12kg） / 24 hours Ice storage capacity：1.6L/850g Refrigerant：R600a Compression-type refrigeration: 110-120V/60Hz Water tank capacity：1.5 L Voltage：AC 110-120V Frequency：60 Hz Power consumption：120 W Max overall dimensions(W×D×H)：228x320x297 mm Packing dimensions(L×W×H)：392×304×361 mm N.W.：15.87lbs/7.2kg G.W.：18.08lbs/8.2kg... - Page 7 DESCRIPTION Upper cover Buttons Transparent lid Control panel Micro switch support Water box Ice shovel board Bullet evaporator Ice collecting tray Motor support Water tank Rear housing Vents Front housing Silica gel stopple at water outlet Ice shovel...
- Page 8 FEATURE Quick ice making Prompt when the ice is full and water is insufficient Bullet ice 9 pcs ice can be made in nine minutes Large and small ice can be made Self -cleaning function 1.
-
Page 9: Control Panel Operation
CONTROL PANEL OPERATION POWER: ON-OFF switch button SELECT: Mode selection button ICE FULL: Ice full alarm indicator light ADD WATER: Water shortage alarm indicator light L: Large ice indicator light S: Small ice indicator light 1). Plug in the power, the "L" indicator light flashes, and the machine will start the deicing function. - Page 10 modes, press the POWER button once to enter the selected mode. When the indoor temperature is lower than 15 degrees, please choose small ice. When the indoor temperature is higher than 30 degrees, it is recommended to choose large ice. 2).
- Page 11 OPERATING INSTRUCTIONS Step 1 Open the lid and take out the ice collecting tray and add water to the reservoir. Note: There is a maximum scale MAX in the reservoir. The water should not exceed the MAX position. If the water exceeds the maximum scale MAX, you need to open the bottom drain plug, release the excess water, and cover with a transparent cover.
-
Page 12: Troubleshooting
other than those recommended by the manufacturer. 3. Reuse the machine after being idled for a period of time, it may not have enough water to pump for air blockage, in this case, the water shortage indicator “ADD WATER” will light up, just repress POWER button to restart the ice maker. - Page 13 1.Add to some water until it reaches Water shortage indicator 1.There is no water MAX position light is on 2.The pump is full of air 2.Press POWER button to restart the machine Indicator lights on display Blown fuse/ No power Replace fuse / Turn power on are not on The ice made is too large...
- Page 14 1. If the power cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard. 2. Fill with potable water only. 3. It is normal for the compressor and condenser surface to reach temperatures between 70°C and 90°C during operation and surrounding areas may be very hot.
-
Page 15: Warranty
We warrant that your kumio ice maker will be free of defects in materials and workmanship under normal home use for 2 years from the date of original purchase.
