Wall Mount Garden Hose Reel
Model 1041
Assembly & Installation Instructions

Advertisement

loading
Need help?

Need help?

Do you have a question about the 1041 and is the answer not in the manual?

Questions and answers

Summary of Contents for ELEY 1041

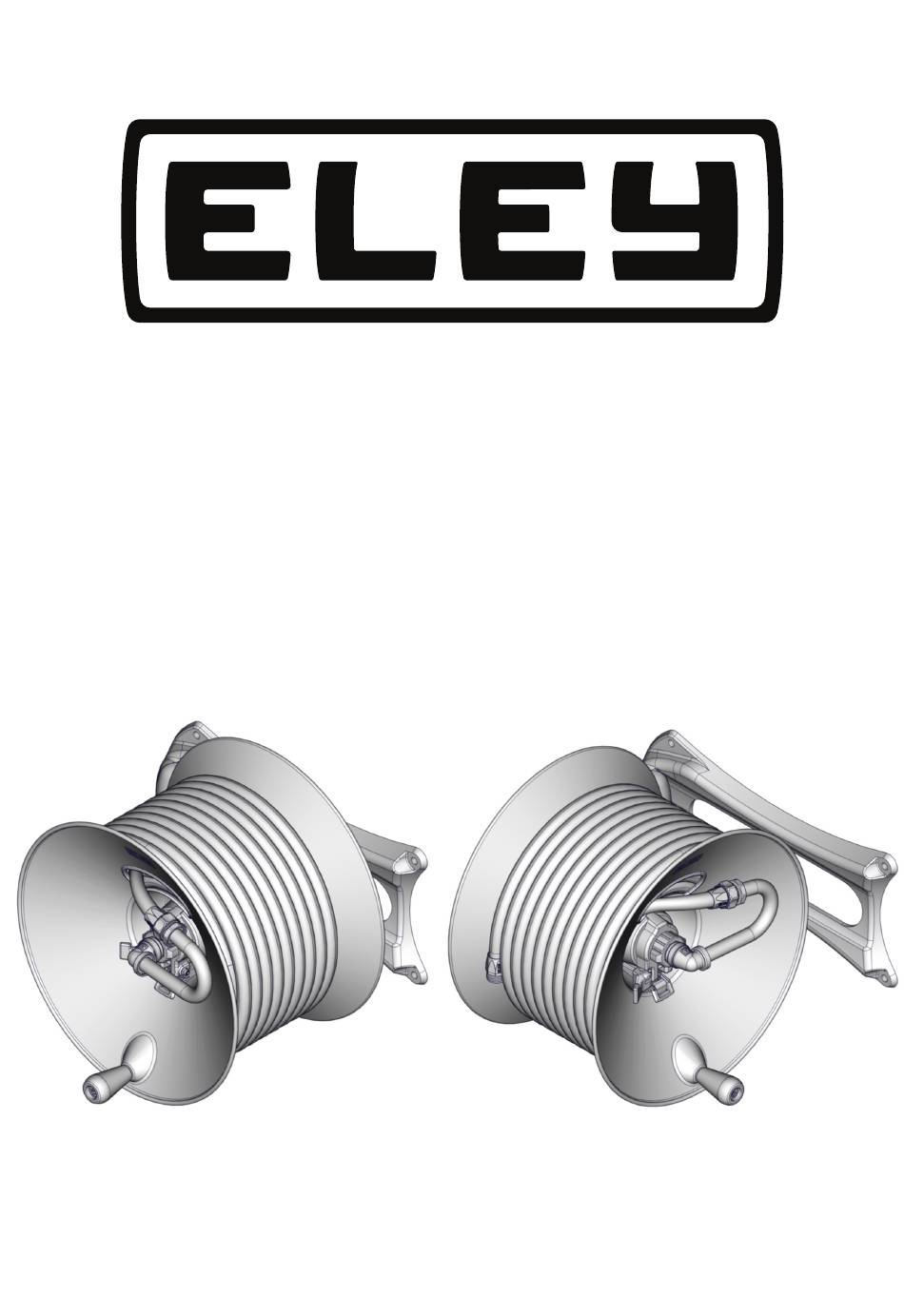

  • Page 1 Wall Mount Garden Hose Reel Model 1041 Assembly & Installation Instructions...
  • Page 2 CONTENTS Reel Specifications For Customer Support Max. Temperature..140° F (60° C) visit EleyHoseReels.com Max. Pressure.....150 PSI (10 Bar) Page 2...
  • Page 3 Standard Reel IMPORTANT! If you purchased an Extra-Capacity Kit (Item# 1044) with your reel, please refer to the assembly instructions included with the Extra-Capacity Kit now. When Upgraded with you have completed those instructions, Extra-Capacity Kit then proceed to Step 2 of this manual. STEP 1 Fasten flanges together using the three M6 x 20 Hex Socket Head Cap Screws...
  • Page 4 STEP 2 Remove the screw from the Handle Assembly (2654). STEP 3 Install Handle Assembly into Front Flange. STEP 4 Remove the two M10 x 25 Hex Socket Head Cap Screws (4013) and 3/8” Flat Washers (2520) from the Garden Hose Reel Arm (3071).
  • Page 5 STEP 5 Determine which direction you want the reel to operate. Parallel Perpendicular STEP 6 Attach the Garden Hose Reel Arm (3071) securely to the Wall Mount Base (2558) using the two previously removed M10 x 25 Hex Socket Head Cap Screws (4013) and 3/8” Flat Washers (2520).
  • Page 6 Step 7 If using the standard inlet hose that came with the reel, locate the reel base within 5 feet of your faucet. Note: Be certain there are no other objects that may interfere with the proper operation of your reel. Parallel Perpendicular Installation Option A - Masonry Walls...
  • Page 7 Step A9 Wear Eye Protection Use a 5/16” masonry bit (not included) and drill Wear Dust Mask 1-1/2” deep holes at the four marked locations. Helpful hints: Measure and then mark the masonry bit with masking tape to ensure you drill at the proper depth.
  • Page 8 Installation Option B - Stud Walls Step B8 Use a marker or pencil to mark the location of the four mounting holes on your wall. Note: Locate studs prior to drilling. The reel must be fastened to two studs. Parallel Perpendicular Step B9 Use a 1/8”...
  • Page 9 Step B10 If you are fastening to lap siding, use the four Standoffs (2510) between the Wall Mount Base (2550) and the siding. Fasten the base to the wall with the four 1/4” x 2-1/2” Hex Head Lag Screws (2319) and 1/4” Flat Washers (2331). Parallel Perpendicular Step B11...
  • Page 10 Step 12 - Insert the externally threaded (male) end of the Inlet Hose (1160) into the axle tube until it is accessible from the other side. Parallel Perpendicular Step 13 - Install the Flange Assembly onto the axle with the crank handle to the outside. Parallel Perpendicular Step 14 -...
  • Page 11 Step 15 - Install the Cam-Lever Brake (2587) onto the axle. Note: Align the tab on the brake with the notch in the flange. Parallel Perpendicular Step 16 Attach the Swivel (4112) to the inlet hose. Parallel Perpendicular Step 17 - Attach the swivel to the axle.
  • Page 12 Step 18 - Position the crank handle in the 12 o’ clock position and lock the cam-lever brake. Step 19 - Feed the internally threaded (female) end of your garden hose through the flexible strap. Page 12...
  • Page 13 Step 20 - Feed your garden hose through the large opening in the flange, thread it onto the swivel. Tighten firmly. Step 21 - Use a Phillips head screwdriver to tighten the screw on the hose strap assembly until the flexible strap is snug on the hose. Be careful not to overtighten. Page 13...
  • Page 14 How to use the Cam-Lever Brake As you pull the hose from the reel, our innovative cam-lever brake will prevent the reel from “free-spinning”, unrolling more hose than you want. The brake can be turned ON and OFF with the flick of the lever. BRAKE ON Pulling the hose out.
  • Page 15 How to adjust the Cam-Lever Brake 1. Place the cam-lever in the “ON” position. 2. Pull enough hose off the reel to test the amount of drag created by the Cam-Lever Brake. a. Too little drag, and the reel will continue to unspool hose after you stop pulling. i.
  • Page 16: Year Warranty

    10 Year Warranty Reels & Watering Tools Eley Corporation, (here after referred to as the “warrantor”), guarantees their proprietary hose reels and watering tools, and their related components and parts, unless otherwise specified, to be free from defect, malfunction or failure in material, or workmanship, under normal use and service, for 10 years for each garden hose reel and watering tool.
