Questions? Problems? Missing Parts?
DO NOT contact or return
this item to the retailer.
Seek factory assistance using the information below.
Customer Hotline: 1-866-523-2363
(toll free) MON- FRI, 8am to 5pm (Central)
E-mail: customerservice@rapidreel.com
MON- FRI, 8am to 5pm (Central)
Online: www.rapidreel.com

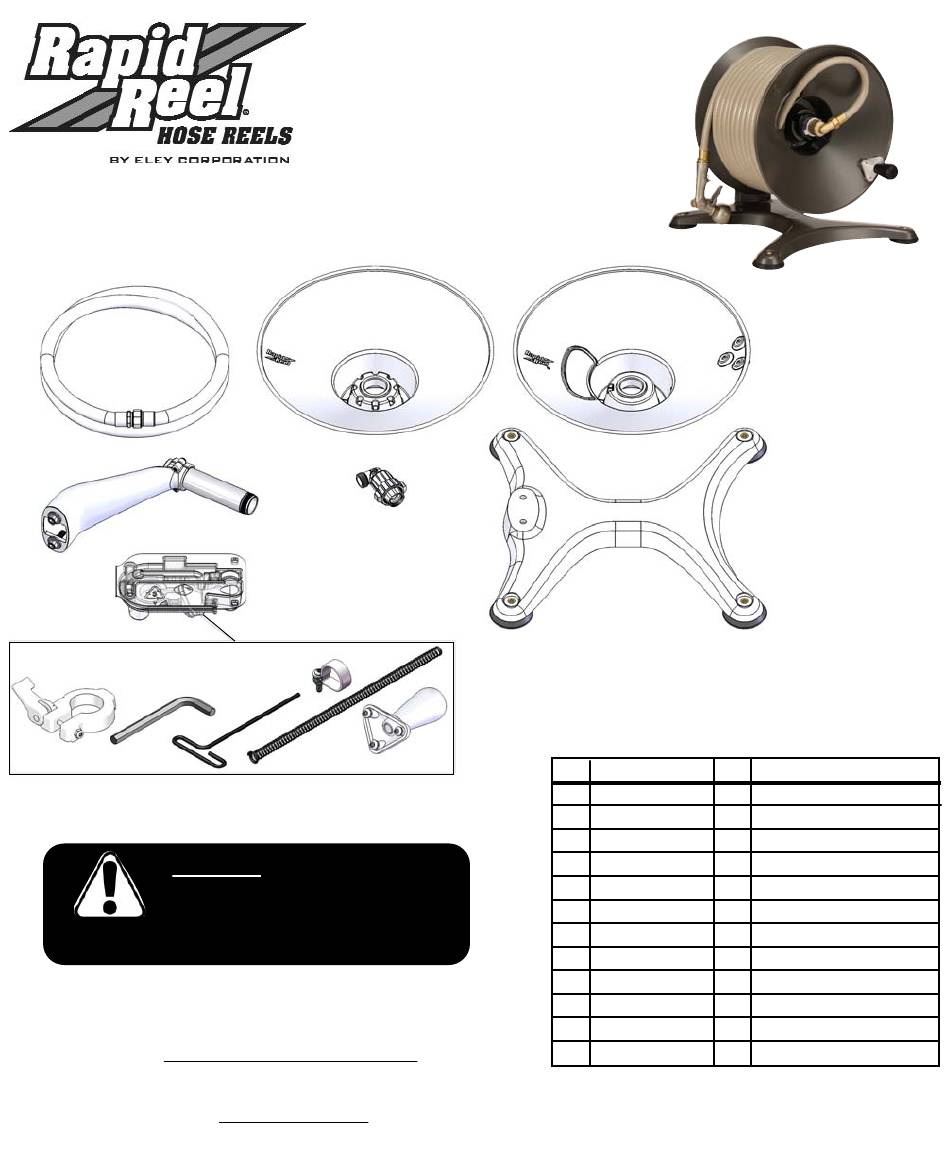

Free-Standing Garden
Hose Reel
Assembly & Installation
Instructions
Version 0409
B
E
Parts
Package
J
I
K
L
24/7/365
Model 1042-GH
Serial # ______________________
(Please locate the serial # on your hose reel
and write it in the space above)
Ref.
Part #
A
B
C
D
See Step 6
E
F
See Step 5
G
H
I
J
See Step 13
K
L
* NOTE: Both back and front flanges, have a pre-
installed bushing in the center hole. In case one is
needed, the replacement part number for that
Patent Pending
bushing is # 2509.
Model 1042-GH
C
F
Qty.
Description
2375
1
Inlet Hose
2099
1
Back Flange*
2100
1
Front Flange*
1
Arm & Axle Assembly
2594
1
Brass Swivel
1
Base Assembly
2587
1
Cam-Lever Brake
2538
1
Short Hex Key Wrench
2537
1
Long Hex Key Wrench
1
Hose Clamp Assembly
2367
1
Kink-Free Spring
2589
1
Crank Handle
Advertisement
Related Manuals for ELEY Rapid Reel 1042-GH
Summary of Contents for ELEY Rapid Reel 1042-GH
- Page 1 Free-Standing Garden Hose Reel Assembly & Installation Instructions Version 0409 Contents Model 1042-GH Parts Package Model 1042-GH Serial # ______________________ (Please locate the serial # on your hose reel and write it in the space above) Ref. Part # Qty. Description 2375 Inlet Hose...
-
Page 2: Reel Assembly
Reel Assembly Step 1 Step 2 1/4” Serrated Flange Using the long hex key wrench Using the enclosed Long Hex Lock Nut (Part # 2330) Key Wrench, remove the and the three screws & nuts Back Flange (B) you just removed, attach the three pre-installed screws &... - Page 3 Step 6 Step 7 Step 5 Using the Short Hex Key Wrench (H), Attach the Arm Assembly to the Base as Get the Base Assembly from the packaging. remove the two 1-1/4” socket screws and shown, using the same wrench and washers from the Arm &...
-
Page 4: Hose Attachment
Right-Hand Hose Attachment Left-Hand Rewind Rewind Your garden hose can be attached to this reel for either left or right hand rewinding. Left hand operation will rewind the hose in a counter- clockwise direction, while right-hand operation will rewind in a clockwise motion. Step 14 Left-Hand Right-Hand... - Page 5 Right-Hand Rewind Left-Hand Rewind Long Hex Key Wrench Step 16 With the hose clamp firmly pinched together on the hose, attach it to the reel (using the screw, washer and nut removed from the clamp earlier), by aligning the hole in the clamp with the hole on the reel’s center drum.
- Page 6 Left-Hand Right-Hand Rewind Rewind Slot in flange Slot in flange Step 17 Feed the female end of Wide end the garden hose through the slot in the flange, (as Wide end shown) and insert the Kink-Free Kink-Free Spring into the Spring (K) Kink-Free hose, with narrow end...
- Page 7 How to Use the Cam-Lever Brake When you stop pulling out the hose, our innovative Cam-Lever Brake is designed to prevent the reel from free- spinning and unspooling more hose than what you wanted. The brake can be turned ON and OFF with the simple flick of a finger.
-
Page 8: Year Warranty
® and Eley Corporation, (collectively here after referred to as the "warrantor"), guarantees this hose reel, components and parts, unless otherwise specified, to be free from defect, malfunction or failure in material, or workmanship, under normal use and service, for a period of 10 years (120 months).
