Summary of Contents for ELEY 1044

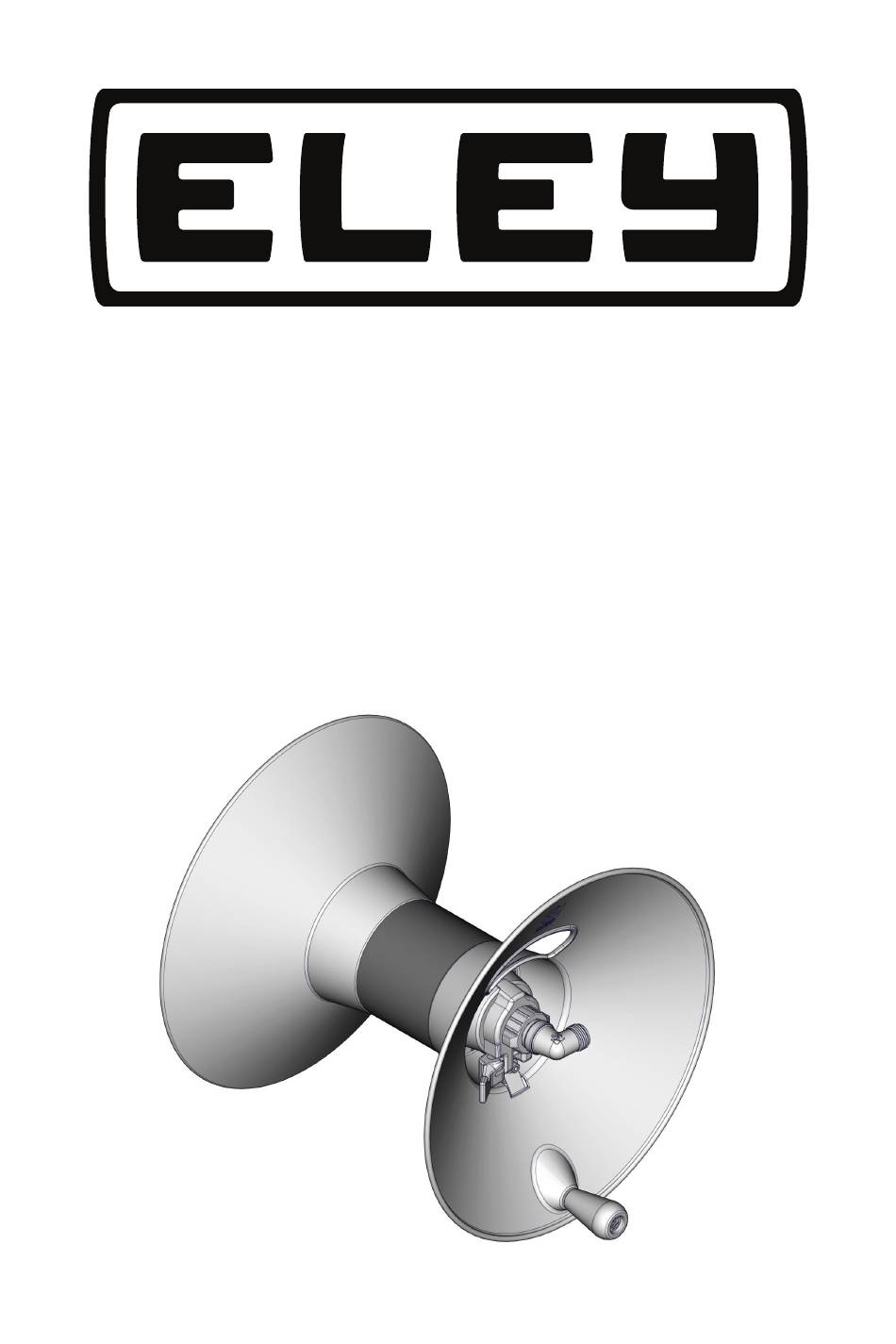

- Page 1 Extra-Capacity Kit Item #1044 Assembly & Installation Instructions...
-
Page 2: Questions? Problems
QUESTIONS? CONTENTS PROBLEMS? Please DO NOT contact or return this item to the retailer. Seek assistance directly from ELEY Corporation using the information below. PHONE: 1-866-523-2363 (toll free) MON- FRI, 8am to 5pm (CST) E-MAIL: support@eleyhosereels.com MON- FRI, 8am to 5pm (CST) - Page 3 Insert Cage Nut (4030) into Front Flange STEP 1 (4027) as shown. Locate the 3 screw tube guides inside the Hub Extension (2564) directly over 3 cage nuts in the Rear Flange (4028). STEP 2 Page 3...
- Page 4 STEP 3 Page 4...
- Page 5 For Models: 1041 Wall Mount Reel 1042 Free Standing Reel 1043 Two Wheel Cart (see page 9-11) STEP 1 STEP 2 IMPORTANT! Loosen the bottom screw ONLY three rotations. DO NOT completely remove. Page 5...
- Page 6 STEP 3 STEP 4 Page 6...
- Page 7 Align the holes on the STEP 5 axle with the tabs on the frame. STEP 6 Page 7...
- Page 8 STEP 7 STEP 8 Once completed, return to hose reel assembly manual and proceed with the next step. Page 8...
- Page 9 For Model: 1043 Portable Cart Reel STEP 1 STEP 2 Page 9...
- Page 10 STEP 3 STEP 4 Align the holes on the axle with the tabs on the frame wye. Page 10...
- Page 11 STEP 5 IMPORTANT! Reinsert and tighten the TOP screw FIRST. STEP 6 Once completed, return to hose reel assembly manual and proceed with the next step. Page 11...
-
Page 12: Year Warranty
10 years(120 months). Warranty period starts from original invoice date. In the event of a defect or component failure, Eley Corporation will replace the specific component(s) free of charge.
