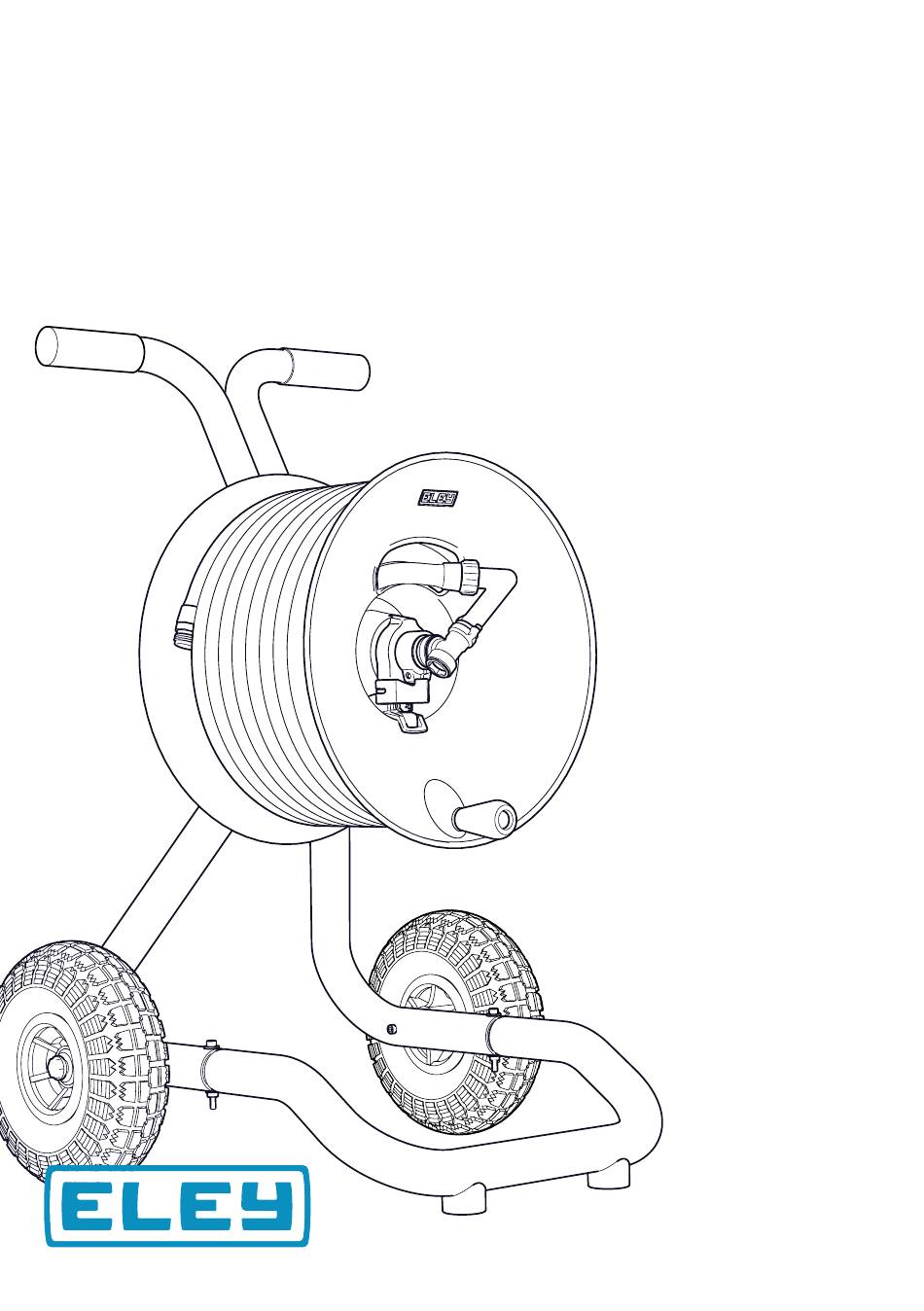

PORTABLE
PORTABLE
GARDEN HOSE
REEL
Watering Done Right
ITEM 1043

Advertisement

loading
Need help?

Need help?

Do you have a question about the 1043 and is the answer not in the manual?

Questions and answers

Summary of Contents for ELEY 1043

  • Page 1 PORTABLE PORTABLE GARDEN HOSE REEL Watering Done Right ITEM 1043...
  • Page 2 We take a great deal of pride in what we do— we wouldn’t put our name on it if we didn’t. Founding brothers: Mark, Warren, and Craig Eley ...AND WE HAVE A FEELING THAT YOU ARE TOO.
  • Page 3: Specifications

    PORTABLE GARDEN HOSE REEL ITEM 1043 Purchase date Serial number SPECIFICATIONS 125 ft. 5⁄8 in. hose capacity 100 ft. 3⁄4 in. hose capacity Max. working pressure Drinking water safe Capacities may vary depending on hose brand and style.
  • Page 4 1043 NEEDED TOOL...
  • Page 5 1043 IN THE BOX...
  • Page 6 1044 1043X 1044 MANUAL 1043 Keep loose If you have an Extra-Capacity Kit, refer to that manual before this step. Connect flanges by inserting the three screws through the holes in the front flange and into the nuts in the rear flange—do not tighten screws.
  • Page 7 Assembly Videos & Support Scan with your camera for access to helpful videos, tips, and FAQs. eleyhosereels.com/assembly Tighten With all three screws inserted, tighten. Avoid using power tools here— high speed can damage the threads. 1043 ASSEMBLY...
  • Page 8 Remove screw from the handle post and insert post into the raised hole at the outer edge of flange. Insert screw from other side—tighten. 1043 ASSEMBLY...
  • Page 9 Insert spindle through concave side of wheel and then into the hole in the side of the leg. Look in the tube to ensure tapered edge of spindle tip is nested against the tube wall. Insert screw—tighten. Repeat for second leg. 1043 ASSEMBLY...
  • Page 10 If you have a Quad-Wheel Kit, refer to that manual before this step. Remove screw, washer, and nut from leg. With the wheel facing outward, slide short end of leg onto front frame. Re-install screw, washer, and nut but do not tighten. Repeat for second leg. 1043 ASSEMBLY...
  • Page 11 Tilt cart to rest on its back. Remove the pair of screws, washers, clamps, and nuts from the wide end of the frame wye. Slide frame wye onto legs and re-install the hardware one leg at a time. Install the screw and washer first, then the clamp and nut. Tighten. 1043 ASSEMBLY...
  • Page 12 Tighten Tilt cart upright. Tighten both screws that fasten front frame to legs. 1043 ASSEMBLY...
  • Page 13 Remove screw, handle clamps, and nut from the top of frame wye. Insert screw through one of the clamps, then through one of the handles. Insert the remainder of the screw through the frame wye. Slide the second handle and clamp onto the screw. Install nut—tighten. 1043 ASSEMBLY...
  • Page 14 Insert the flexible loop of the hose strap through the small rectangle hole in the flange while nesting the hose strap into the flange center. Place brake onto axle—align the tab on the brake to the notch in the flange. 1043 ASSEMBLY...
  • Page 15 Insert the male end of the inlet hose through the back of the axle tube until accessible from front. Screw the swivel onto the inlet hose—hand tighten firmly. Push the swivel fully onto the axle—tighten screw. 1043 ASSEMBLY...
  • Page 16 Feed the female end of your hose through the flexible strap and out the opening in the flange. Screw hose onto the swivel—hand tighten firmly. Use a Phillips head screwdriver to tighten the screw on the hose strap until strap is snug on the hose. 1043 INSTALLING HOSE...
  • Page 17 ON so it’s ready for next use. If the hose is difficult to pull off or continues unspooling after you stop pulling, use a 3⁄8" wrench to loosen or tighten the nut on the brake 1⁄4 turn until corrected. 1043 USING YOUR REEL...
  • Page 18 Eley products are backed by an industry-leading 10-Year No-Leak, No-Rust, No Break Guarantee. For complete warranty coverage details visit eleyhosereels.com/warranty Warranty Registration eleyhosereels.com/register Customer Support eleyhosereels.com/support Copyright © 2023 ELEY Corporation. All rights reserved. PO Box 22640, Lincoln, NE 68542 Patents and patents pending. 4173_REV_220927...
