Stereo Operation

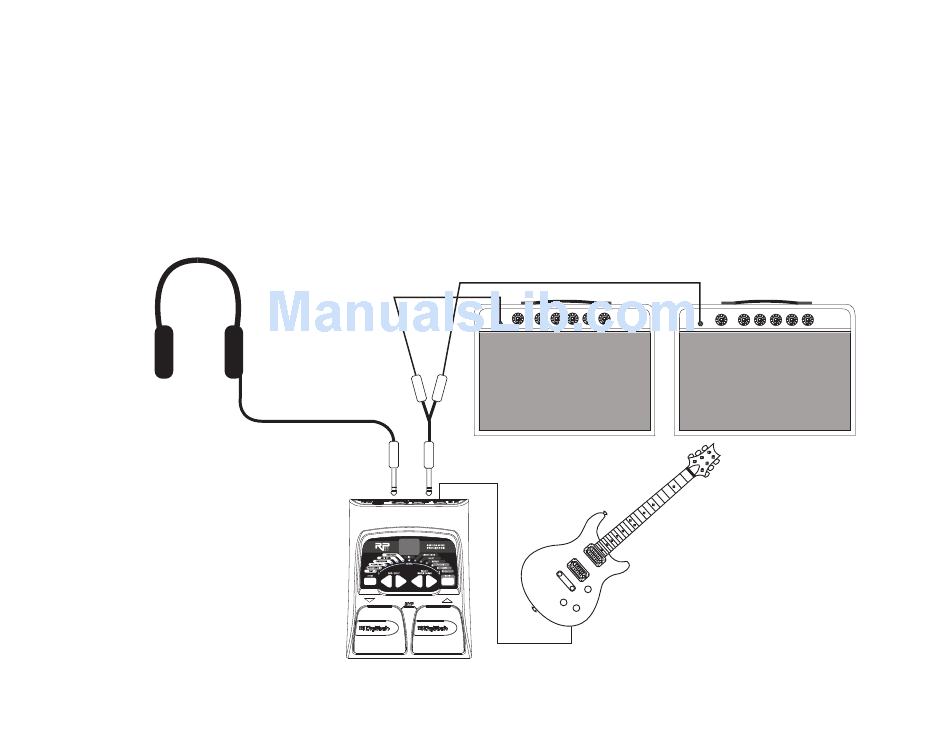

For stereo operation connect the guitar to the Input of the RP55. Connect a TRS stereo
"Y" cord or a pair of stereo headphones to the RP55's Output. When using a "Y" cord,
connect one end of the "Y" cord to the input of one amplifier or channel of a mixer.
Connect the second end of the "Y" cord to a second amplifier, or second channel of a
mixer. If connecting to a mixing console, set the pan controls of the mixer hard left and
right to retain stereo separation. To emulate a guitar cabinet sound when using the RP55
with a mixer or headphones, you can enable Global Cabinet Modeling (see page 20).
Guitar Amp Input / Effect Return
Headphones or
Stereo TRS "Y" Cable
Connected to Output
Input
6
