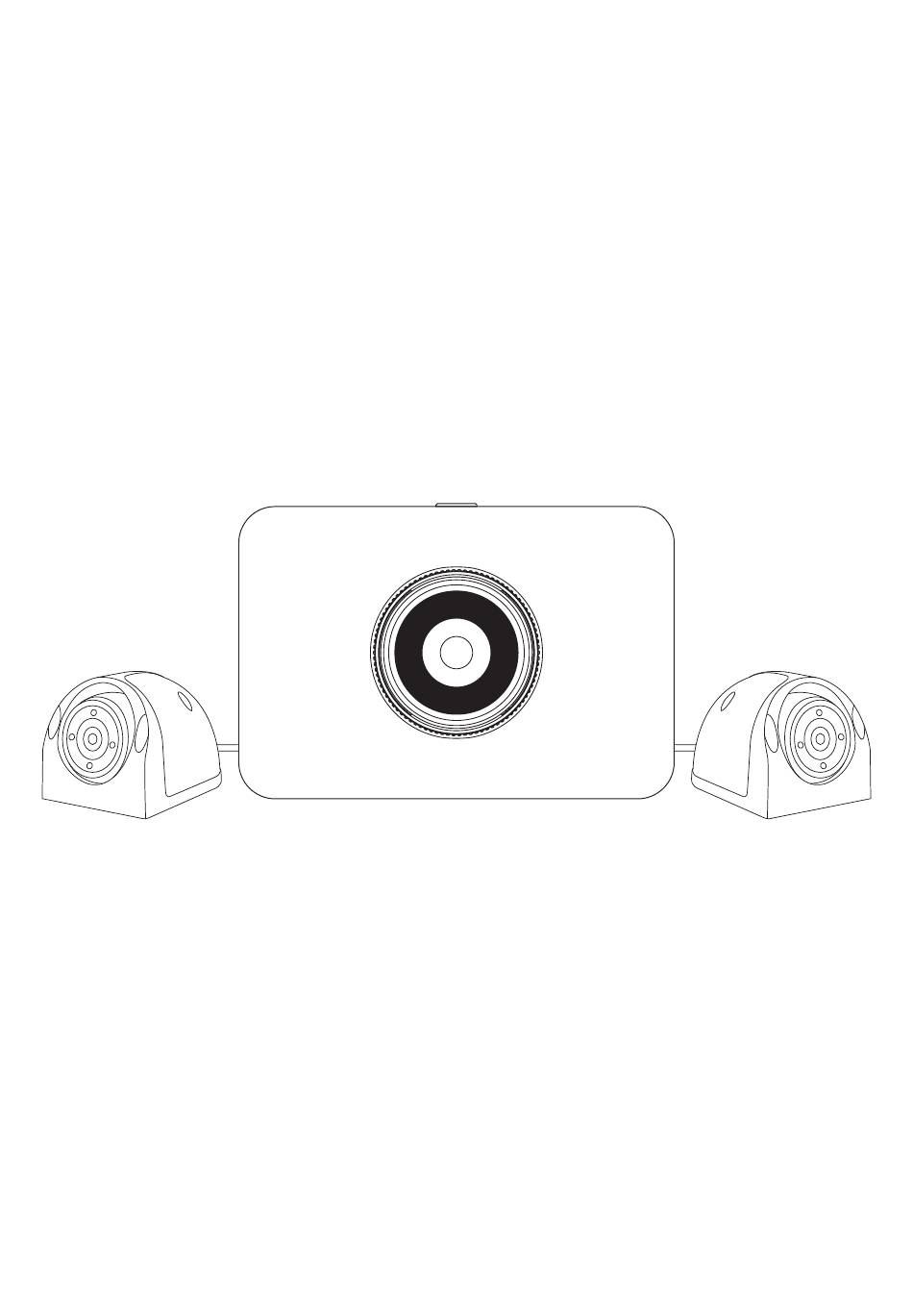

- Page 1 T4 5 . DashCam UserManual Please keep this manual properly. Any question please contact our customer service. Hope our products make your driving safer. - 1 -...
- Page 2 Accessories MENU Bracket Main Unit 2.4GRemoteController Camera X2 Extension Cable Crowbar Power Cable ※If there is any change of specification and appearance due to improvement, we are not able to inform you in advance. Please understand. ※Please note that there are differences between the schematic diagram and the real object in the manual.
-
Page 3: FrontCamera
Diagram of Product Connection FrontCamera Menu Down Camera1 Camera 2 Power Interface ▶ With the advancement of technology,the product structure and parameters will continue to be improved. The pictures and texts in this book are for reference only. If there are pictures or descriptions that do not match the actual product, please refer tothe actual display of the product. - Page 4 2.4G Remote Controller This is designed for aided driving.You can control the DVR to separately display the right/left/front camera with full screen. 1.When you want to turn left ( or monitor the left side of your truck),short press “ ” button and the DVR will full screen display the left camera;...
- Page 5 Images Information and Menu Description 1. After selecting, press 1. Character description on the display in video mode to enter Recording Mode. Microphone Parking Monitoring Recording 2. Icon becomes larger: the function is selected. Altitude Atmospheric 1007HPA Pressure 22°40′42″ GPS Latitude 113°46′43″...
- Page 6 1. After selecting,press to enter Menu Setting 2. Icon becomes larger: the function is selected Note:"Flameout Detection ", "Parking Monitoring" and ''Timed Recording after Flameout " functions are optional and require the purchase of an additional power cable to have them. If you need these three functions, please contact us through the Amazon message system or customer service email.
- Page 7 TF Card Please use C10 or above genuine TF card; T4.5 supports Max 256G TF Card; If TF card can not save files correctly, please format the TF card on the dash cam; ※Formatting will delete all data. Please backup the card data before formatting.
-
Page 8: Display Mode Switch
Display Mode Switch 1.The software defaults front/ left/ right three camera split screen. And following mode can be set: (1)Press down button once to display left and right camera split screen. (2)Press down button again to switch to the full screen of front camera. (3)Press down button again to switch to the full screen of left camera. - Page 9 Assembling and Fixing Cameras 1. Find the position you want to 2.Install the camera in the install on the truck, and then bracket, then install it on the fix the base with screws. base. 3.Fix the camera and base 4. Turn on the recorder, check with screws.
- Page 10 Mobile Phone APP Installation and Operation WiFi APP is a mobile phone control software used with VSYSTO DVR device.This software is connected to the DVR device via Wi-Fi, it can directly preview and playback the video on the mobile phone,easily realize that viewing the camera documents on the screen of mobile phone,setting or other operations.
- Page 11 Click to full screen display(as shown in the figure below). 2022/09/09 15:12:01 OKB/S 2022/09/09 15:12:01 VSYSTO T4.5 OKPH ◆Browse Recorder Files Online Click browse the video files on recorder memory card(as shown in the figure below).
- Page 12 ◆Download or Delete Recorder Files In the "Online" browsing recorder file interface, click to select the file you want to EDIT download or delete, and then click "Save" or "Delete" below as needed (as shown in the figure below). Video File Name REC-XXXX—...
- Page 13 ※ When you play a video on the mobile APP to view the driving track, you can only view the video of a single camera (front/left/right), and cannot play multiple cameras at the same time. 2022/09/09 15:12:01 T4.5 22Kmh - 13 -...
- Page 14 Installation Guide 1.Turn off vehicle engine. 2.Insert the memory card into the card slot of the recorder. ※Please use a high-speed memory card (Class 10 or above) with a capacity of not less than 8G, and the memory card supports a maximum of 256GB. 3.Attach the recorder to the window with a suction cup bracket or fix it on the center console.
-
Page 15: Wireless Remote Control
Remote Control Wireless Remote Control 1. Short press the red button once to switch to the full screen of the left camera. 1. Short press the blue button once to switch the full screen of the right camera. 2. Double-click the blue button to switch to the full screen of the front camera. Battery Replacement Guide Model: CR2032... - Page 16 Interface Picture Example Initial Interface When the mouse moves to the corresponding icon,there will be an operation prompt, please follow the prompt to operate (as shown in the figure below) Interface during Playback During playback, double-click the front camera or right camera image, the full screen of the camera will be displayed.
