AmeriLite B08CH278XY Instructions

Application: 1988-1998 Chevy Full-size - GMC Pick-up/ 1992-1994 GMC
Jimmy - Chevy Blazer FS / 1992-1999 Chevy Suburban - Tahoe- GMC Yukon-
___________________________________________________________________________________________
Tools Needed: Phillips
Screwdriver
Step 2: Pull the tail light off
from the vehicle.
Step 4: Take ou the new tail
light from the box.
Description: Tail light
Yukon XL / 1999-2000 Cadillac Escalade
Step 3: Unplug the tail light wire
harness.
Step 5: Plug in the tail light wire
harness into the new tail light.
Read complete instructions
before installation!
Improper installation may
void warranty

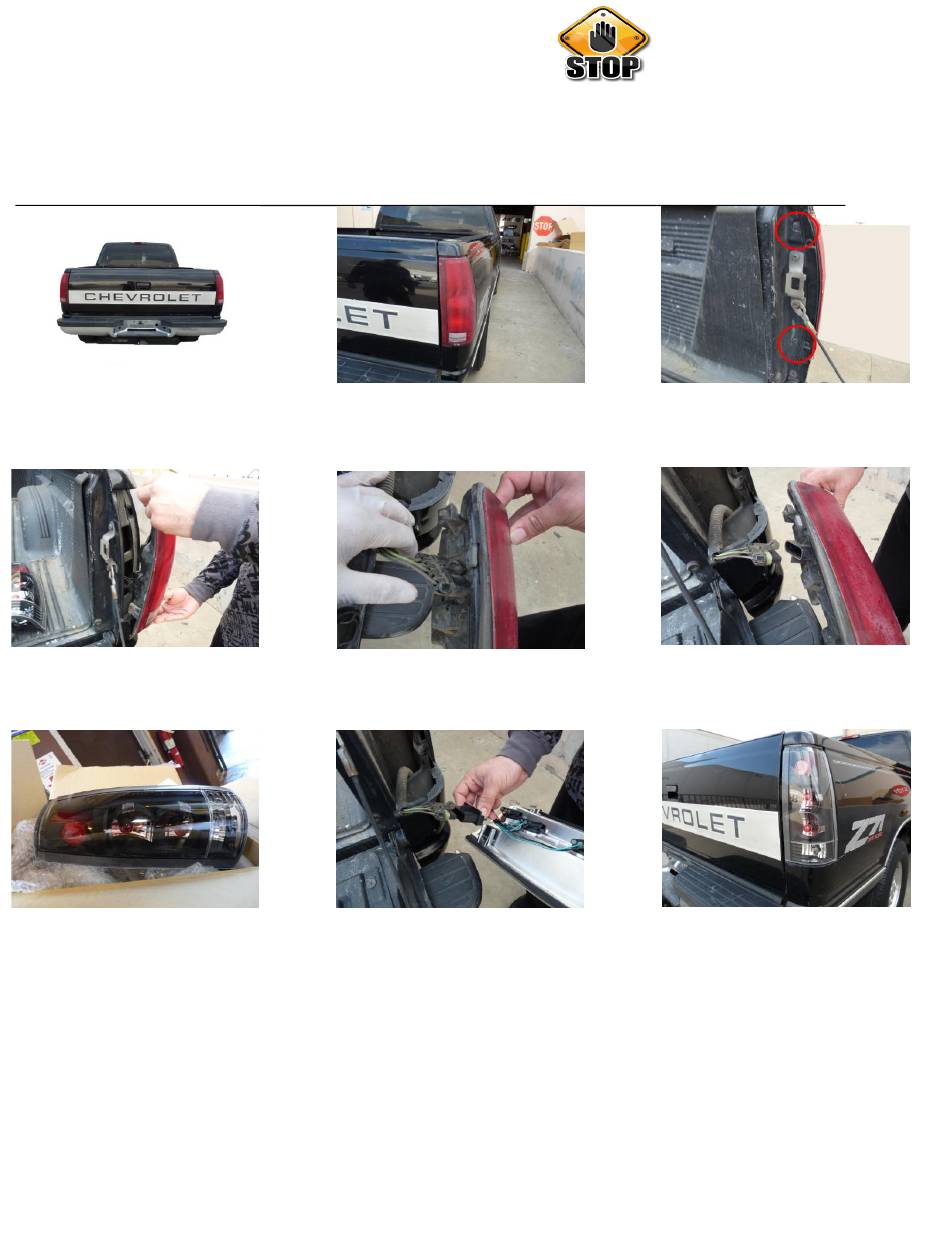

Step 1: Open the tail gate and
locate the two phillips screw
and remove them.
Step 6: Test all functions to
make sure of proper installation
before driving.
