Petsafe 729849108608 Installation Manual

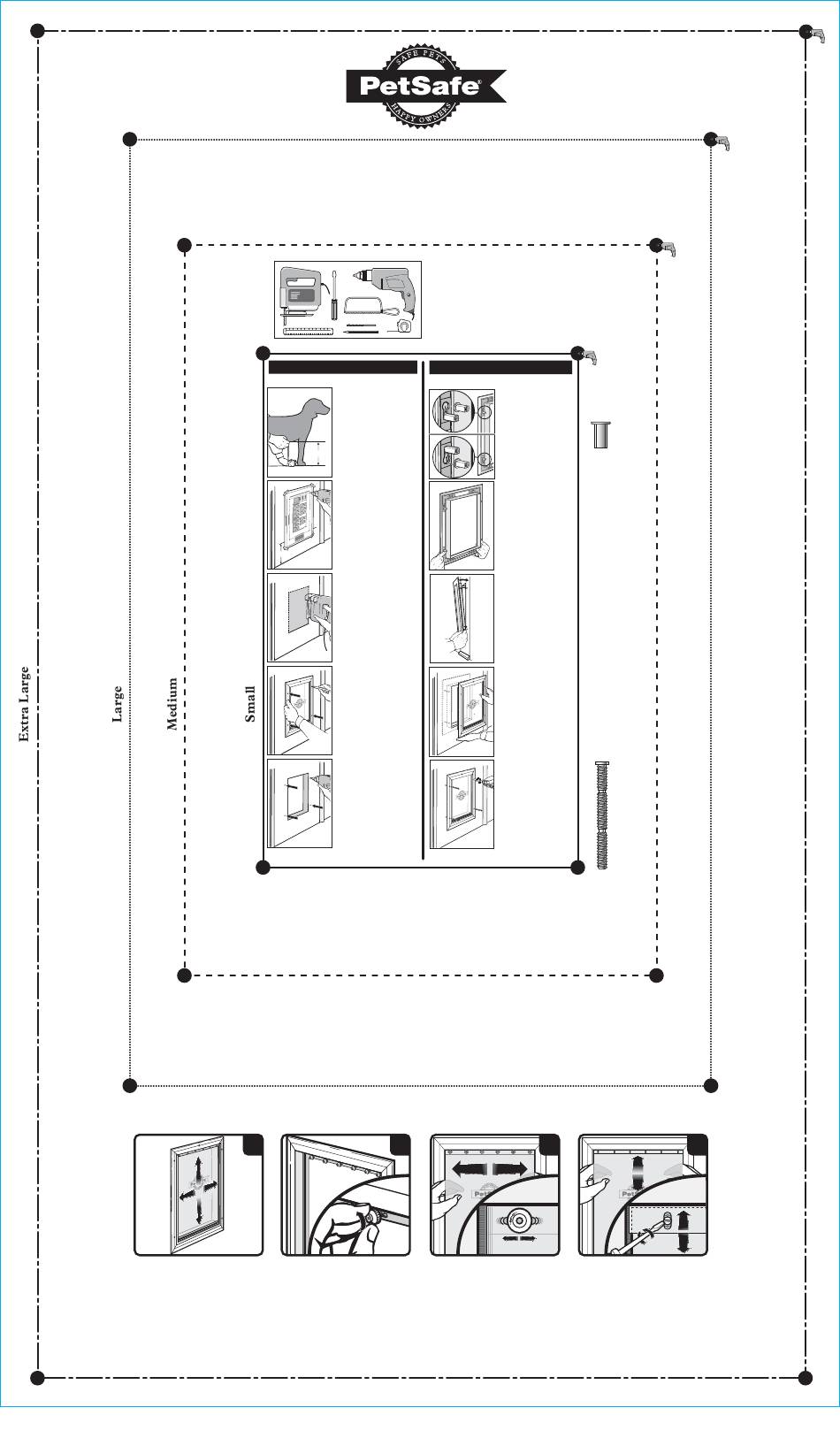

Installation Guide and Template
Preparing your house door
1
2
(X)
3
4
5
1
1. The flexible flap is adjustable to 2. Attach all nuts.
fit into frame correctly.
