Summary of Contents for Wali 1330LM-ES

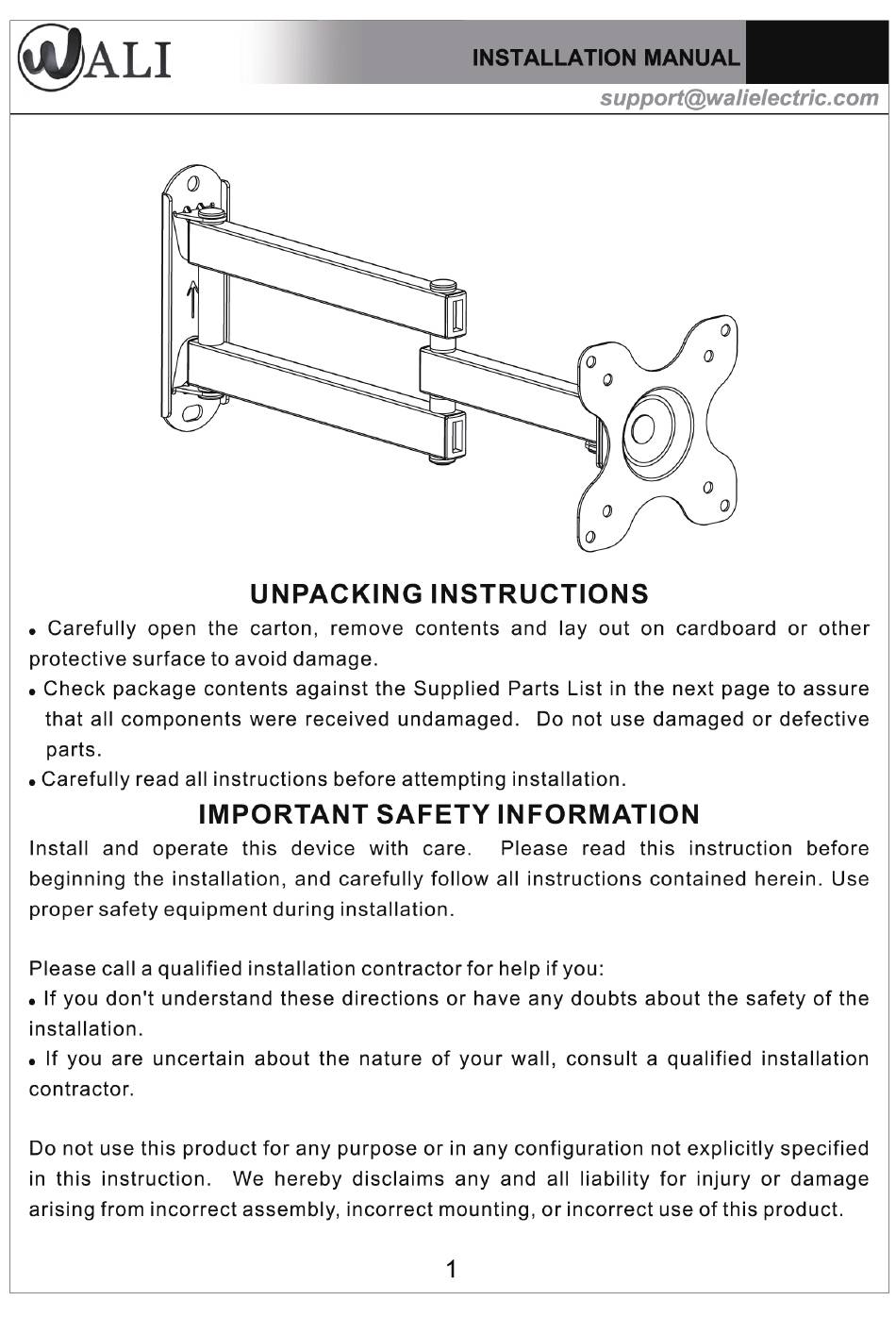

- Page 1 1330LM-ES...
- Page 2 Supplied Parts List (1)Wall Plate & (1)VESA Plate-b (1)Wrench-c (2)M4x6 Bolt-d Articulating Arms-a (4)M4 Spacer-e (4)M4x12 Bolt-f (4)M4x30 Bolt-g (2)Bolt Cover-h (2)Lag Bolt Washer-i (2)Lag Bolt-j (2)Concrete Anchor-k (3)Cable Tie-l (1) Allen Key-m Not all accessories will be used. CA UTION! This wall mount bracket must be securely attached to the vertical wall.
- Page 3 Install the Wall Plate to the Wall S t e p 1 B r i c k M o u n t 65m m 60m m 10m m Wo o d M o u n t 65m m 4m m...
- Page 4 Attach VESA Plate to the Mounting Hole S t e p 2 This way up! Attach VESA Plate to the Socket on the Articulating Arm S t e p 3 Adjust the Tilting Angle and Attach the Bolt Cover S t e p 4...
