FTM - 3
LED/LCD TV Mount
37"
-70"
Display Size:

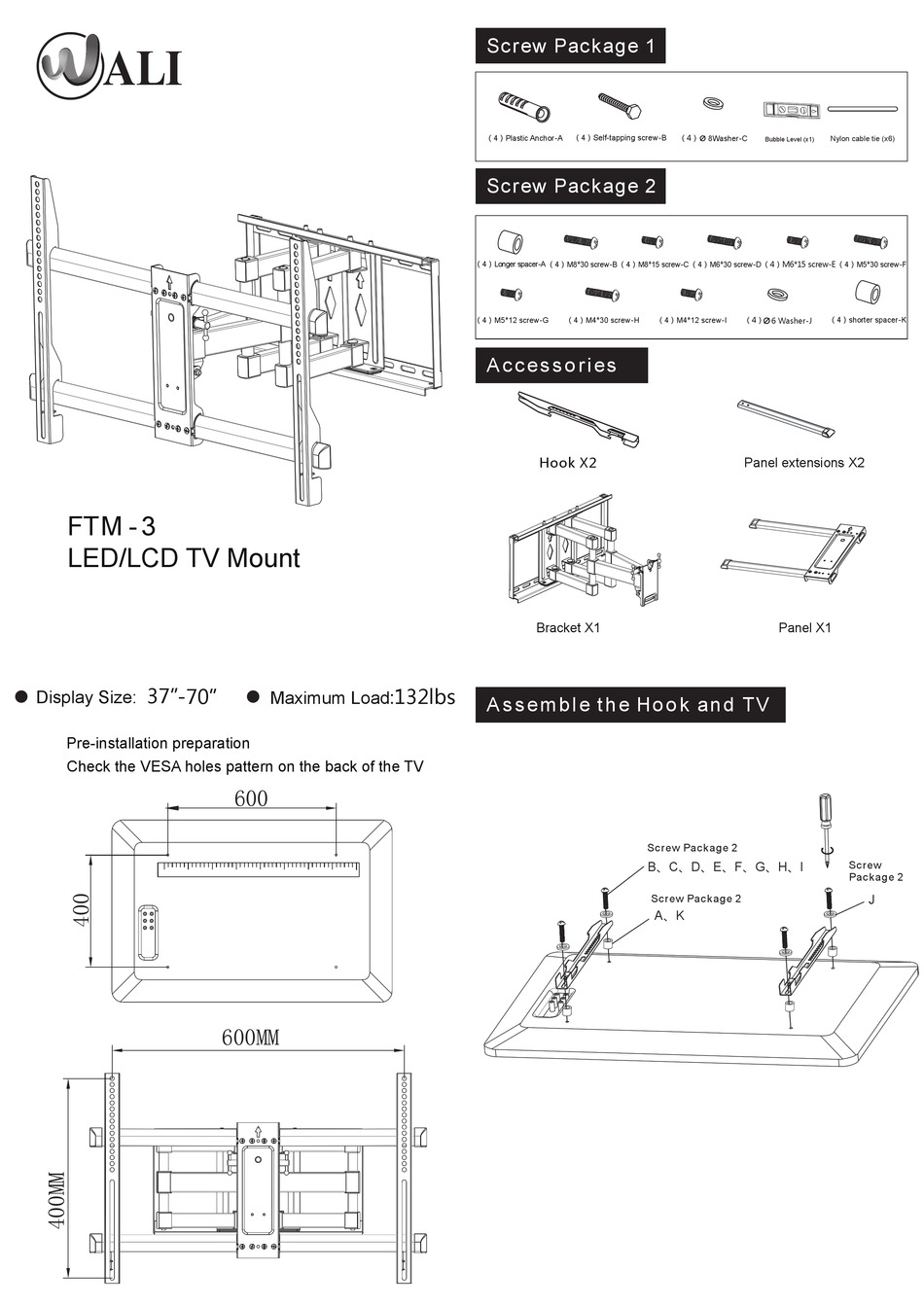

Pre-installation preparation
Check the VESA holes pattern on the back of the TV
132lbs
Maximum Load:
600
600MM
Screw Package 1
（4）Plastic Anchor-A
（4） Self-tapping screw -B
Screw Package 2
（4）Longer spacer-A （4）M8*30 screw-B （4）M8*15 screw-C （4）M6*30 screw-D （4）M6*15 screw -E （4）M5*30 screw-F
（4）M5*12 screw-G
（4）M4*30 screw-H
A c c es s o r i es
Hook X2
Bracket X1
A s s em b l e t h e Ho o k an d TV
Screw Package 2
B、C、D、E、F、G、H、I
（4） ∅ 8Washer-C
Bubble Level (x1)
∅
（4）M4*12 screw-I
（4）
6 Washer-J
Panel extensions X2
Panel X1
Screw Package 2
A、K
Nylon cable tie (x6)
（4）shorter spacer-K
Screw
Package 2
J
