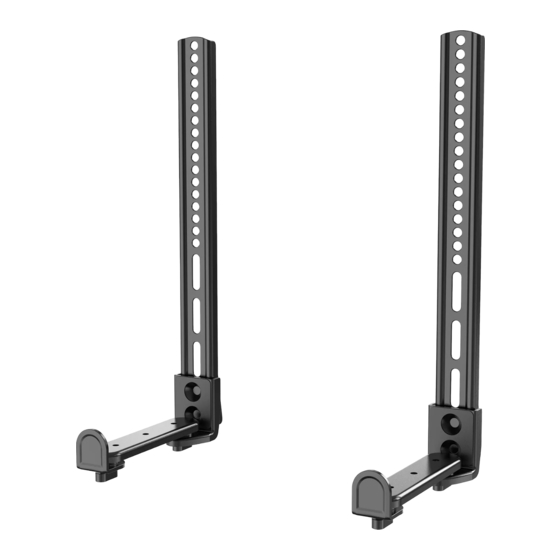

- Page 1 Universal Soundbar Bracket SBR203 15kg 33lbs RATED support@walielectric.com...
- Page 3 Supplied Parts List Holder A(x2) B(x2) Spacer Spacer Screw Wrench C(x2) D(x4) E(x4) F(x4) G(x1) M5x16 Bolt M6x16 Bolt M5x25 Bolt M6x25 Bolt M-A(x4) M-B(x4) M-C(x4) M-D(x4) M6x40 Bolt M8x40 Bolt M8x60 Bolt M-E(x4) M-F(x4) M-G(x4) D5 Washer Spacer Spacer M-H(x4) M-I(x8) M-J(x8)
-
Page 4: Install Options
Install Options Below The TV Above The TV Page 4-7 Page 8-10 Option A Below The TV Step 1 Attach the Holder to Arms . Screw Holder into the preferred key slots on Arm with Nut and tighten using Wrench... - Page 5 Option A Below The TV Step 2.1 Leave ample room for your speaker soundbar soundbar Note: Measure the speaker height before installation. Make sure there is ample room for the speaker. >a Step 2.2 Select the right TV mounting screws...
- Page 6 Option A Below The TV Step 2.3 Attach the soundbar brackets to your TV...
- Page 7 Option A Below The TV Step 3 1. Adjust the holder according to the depth of your soundbar. 2. Tighten the knobs to secure soundbar sitting sturdy.
- Page 8 Option B Above The TV Step 1 Attach the Holder to Arms . Screw Holder into the preferred key slots on Arm with Nut and tighten using Wrench Step 2.1 Leave ample room between the holder and the TV Note: When top mounting the soundbar, make sure there is ample room between the bracket and the TV as shown >5mm Step 2.2...
- Page 9 Option B Above The TV Step 2.3 Attach the soundbar brackets to your TV M -E M -C M -D M -G M -F M -H M -I M -I M -J M -J M -G M -E M -D M -C M -F M -H...
- Page 10 Option B Above The TV Step 3 1. Adjust the holder according to the depth of your soundbar. 2. Tighten the knobs to secure soundbar sitting sturdy.
- Page 11 We support the technology that brings your home to life. We offer high quality products, professional customer service, and extensive technical support. If you have any questions,please contact us. 1-844-SATTLER (18447288537) support@walielectric.com...
