Summary of Contents for Wali TVDVD-03

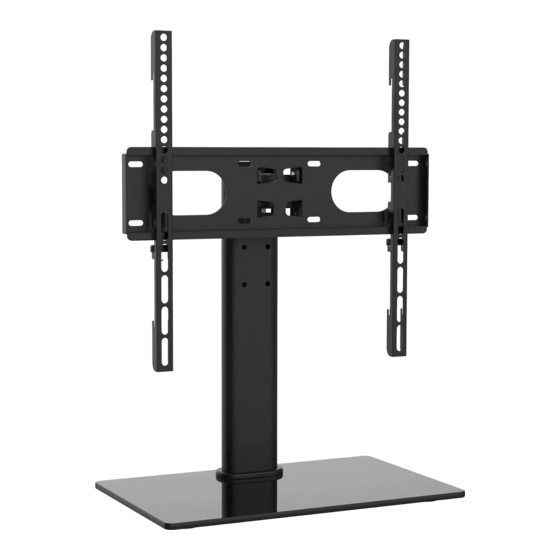

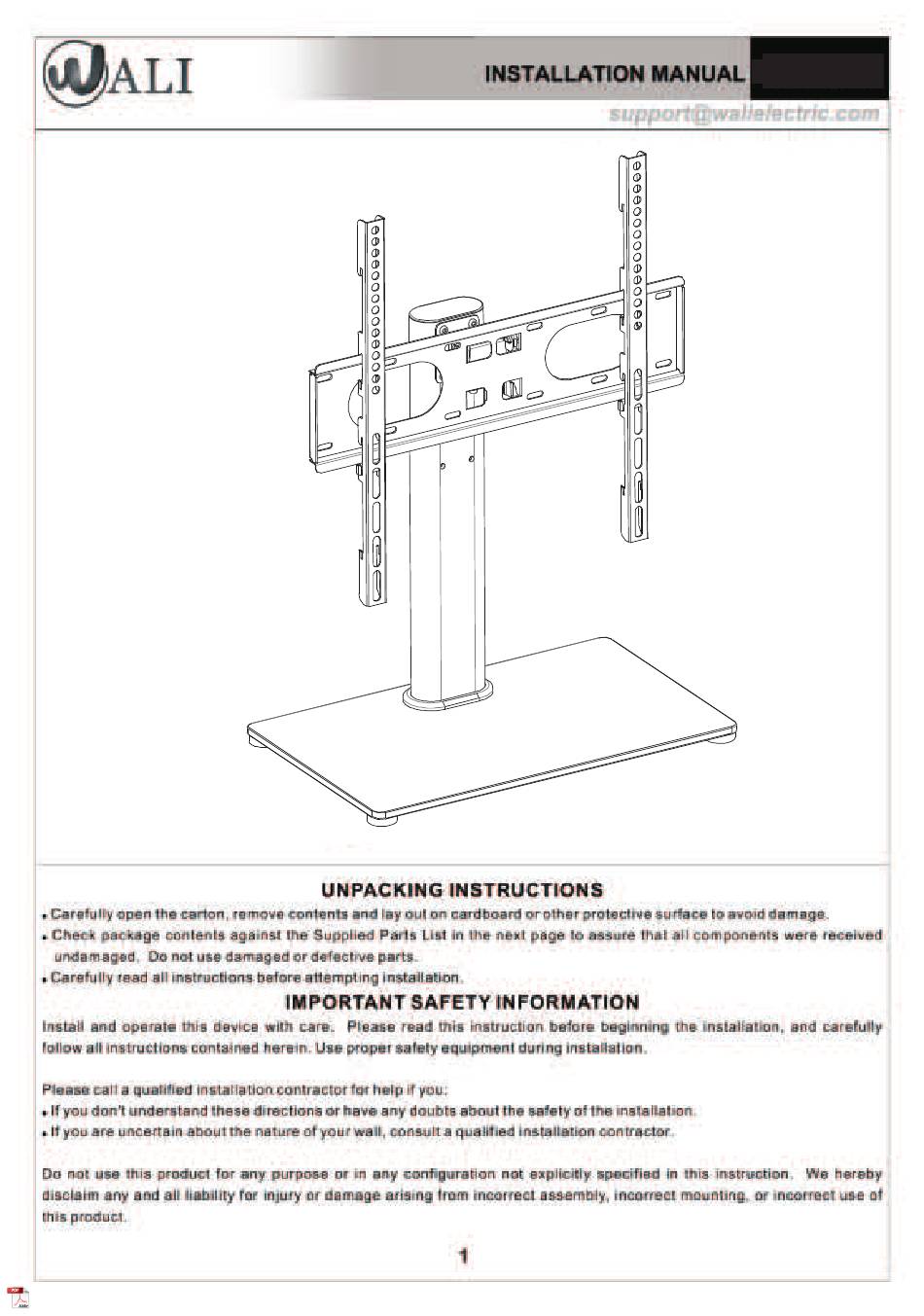

  • Page 1 TVDVD-03...
  • Page 2 Supplied Parts List (1)TV Plate-a (2)Monitor Bracket-b (1)Tempered Glass-c (1)Support Column-d (1)headstock-d1 (1) connector-d2 (1) M8 bolt/nut-d3 (1)Plastic Socket-e (1)Metal Pad-f (4)M6x10 Bolt-g (4)Metal Washer-h (3)M8x22 Bolt-i (2)Wire Clip-j (4)Rubber Foot-k (4)M4x12 Bolt-l (4)M4x30 Bolt-m (4)M6x20 Bolt-n (4)M6x35 Bolt-o (4)M8x20 Bolt-p (4)M8x35 Bolt-q (4)M8x50 Bolt-r (4)M4 Washer-s...
  • Page 3 onnecting the Support Column to Tempered Glass S t e p 1 Mounting column,connector and head part S t e p 2...
  • Page 4 Step 3 Mounting TV plate to the headstock Loosen the preinstalled screws on headstock left and right rotation adjustment up and down rotation adjustment Step 4 Mounting the Monitor Brackets to a TV First of all, make sure your TV mounting holes are compatible with size and diameter of the provided Bolt (l to r). Once you have determined the correct diameter, please see the diagram below.
  • Page 5 Step 5 Attaching TV To TV Plate and Managing the Wires Clip Z to the monitor bracket-b Safety Bolt Step 6 Attaching the Security Steel Wire to the TV If your TV is positioned close to the wall as shown in Diagram 5a, then a steel wire can be attached for added security. Attach two ends of the steel wire to the top two holes on the back of TV, shown in Diagram 5b.
  • Page 6 Attach the other end of the steel wire to the wall according to your wall type, shown in Diagram 5c, 5d and 5e. Wood Stud Wall Concrete & Brick Wall 45m m 50m m Diagram 5d Diagram 5c 3.8m m 8m m Wall Diagram 5e...
