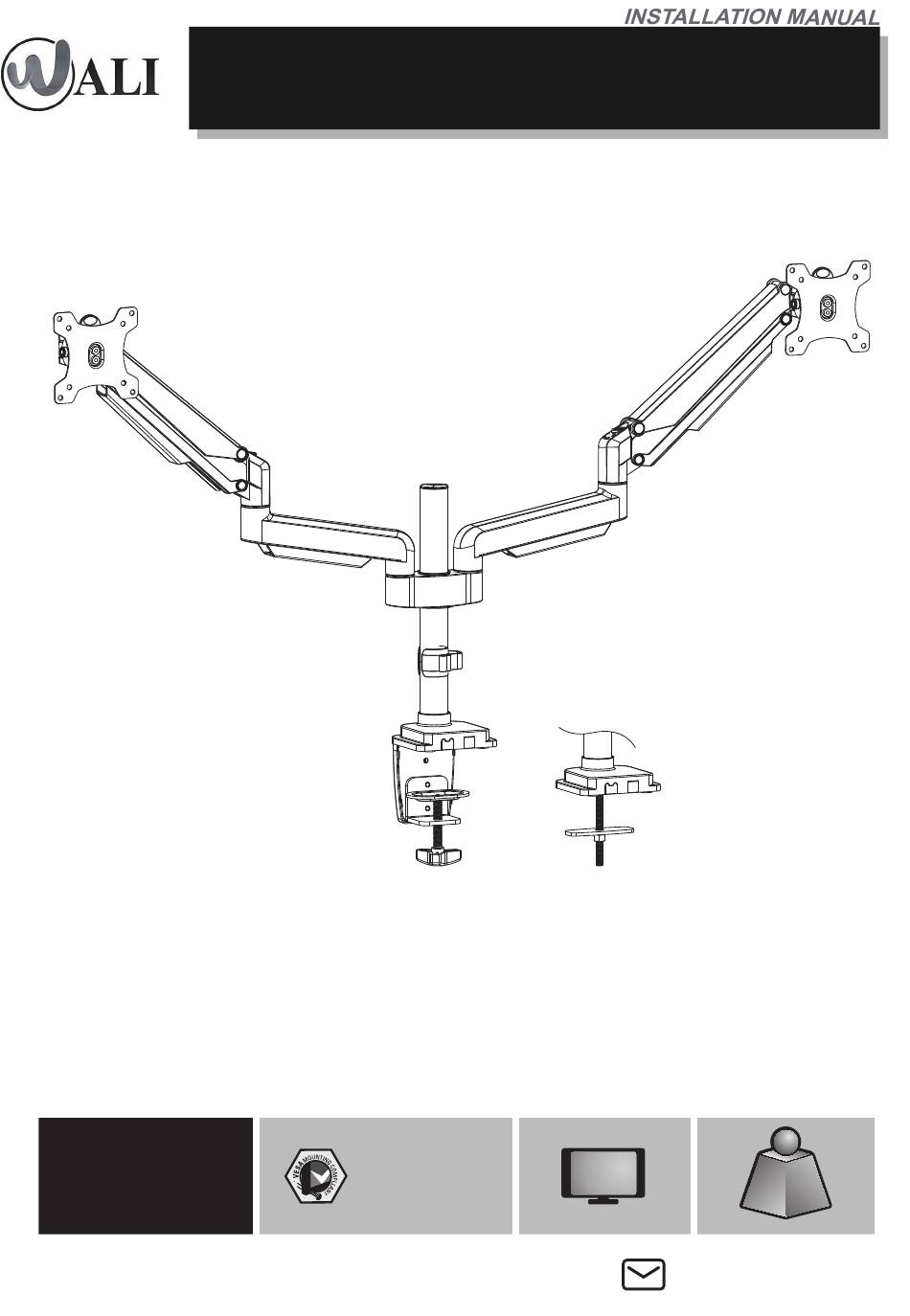

- Page 1 Monitor Desk Mount GSDM002S 32" 75x75/100x100 (1 9kg)x2 (2.2~19.8lbs )x2 R ATE D support@walielectric.com...
- Page 3 Supplied Parts List Pole Base Clip Holder VESA Plate A(x1) B(x1) C(x1) D(x1) E(x2) C-Clamp Brace C-Clamp Décor Cover Bolt Support Plate F(x1) G(x1) H(x1) I(x1) J(x1) Support Plate Washer Anti-skid Pad Allen Key 4mm K(x1) L(x1) M(x1) N(x4) O(x1) Allen Key 6mm Wrench M6x10 Bolt...
- Page 4 Step 1 Fit clamp: 0.39”-3.3” Grommet: 0.39”-3.1” Step 2 Option A Clamp Installation 1. Place the Pole onto the top hole of Base ,connect Pole and Base from the bottom using M6x16 Bolt and tighten with Allen Key 4mm ; Connect C-Clamp Brace to Base from the bottom using M6x12 Bolt tighten with Allen Key 4mm...
- Page 5 Step 2 Option A Clamp Installation 2. Select the preferred height firstly and connect C-Clamp to C-Clamp Brace using M6x10 Bolt and tighten with Allen Key 4mm 3. Put on the Décor Cover to cover the C-Clamp Brace , rotate the knob clockwise to fasten for stability.
- Page 6 Step 2 Option B Grommet Base Installation 1. Guide Support Plate through Bolt and connect them to Base from the bottom using M6x12 Bolt tighten with Allen Key 4mm . Tear off the protect paper to attach Anti-Skid Pad to the bottom designated position of Base as image shown.
- Page 7 Step 2 Option B Grommet Base Installation 2b Self-drilled Grommet Hole Installation Mark the position of the hole on your mounting surface.Drill a 3/8"(10mm) diameter hole at the marked position through the mounting surface.Insert the assembled Pole through the desk hole, guide the Support Plate ,Washer through the Bolt , rotate the Nut...
- Page 8 Step 4 Step 4.1 Step 4.2 Select TV Screws Select Spacers ( if needed ) Step 4.3a Step 4.3b Select M4x12 Bolt or M5x12 Bolt Select M4x16 Bolt or M5x16 Bolt according to your TV/Monitor,connect VESA Plate according to your TV/Monitor,connect VESA Plate together with D5 Washer into the mounting together with D5 Washer...
- Page 9 Step 5 Pull the buckle and put the assembled TV/Monitor onto the Arm and ensure the stability. Step 6 Press the Arm on horizontal level as image shown, adjust gas spring tension to your personal preference using Allen Key 6mm , adjust the tilt tension using Allen Key 6mm For Heavier Monitors For Lighter Monitors...
- Page 10 Step 7 Pull the bottom cable slot cover to the VESA direction to detach it off the arm, open the four corner button of the top cable slot cover to detach it off. Step 8 Guide the cable through the cable slot and put the cover back to arm.
- Page 11 Step 9 Manually swivel,tilt or rotate the angle for the best operating environment; Store the Allen Key 4mm and Allen Key 6mm in the holder of Décor Cover for future convenience. ± 90° +90° ± 90° -90°...
- Page 12 We support the technology that brings your home to life. We offer high quality products, professional customer service, and extensive technical support. If you have any questions,please contact us. support@walielectric.com 1-844-SATTLER (18447288537)
