Three-way Electro-pneumatic
(EP) Valve Model 3
Description
Features
Product Numbers
Warning/Caution Notations

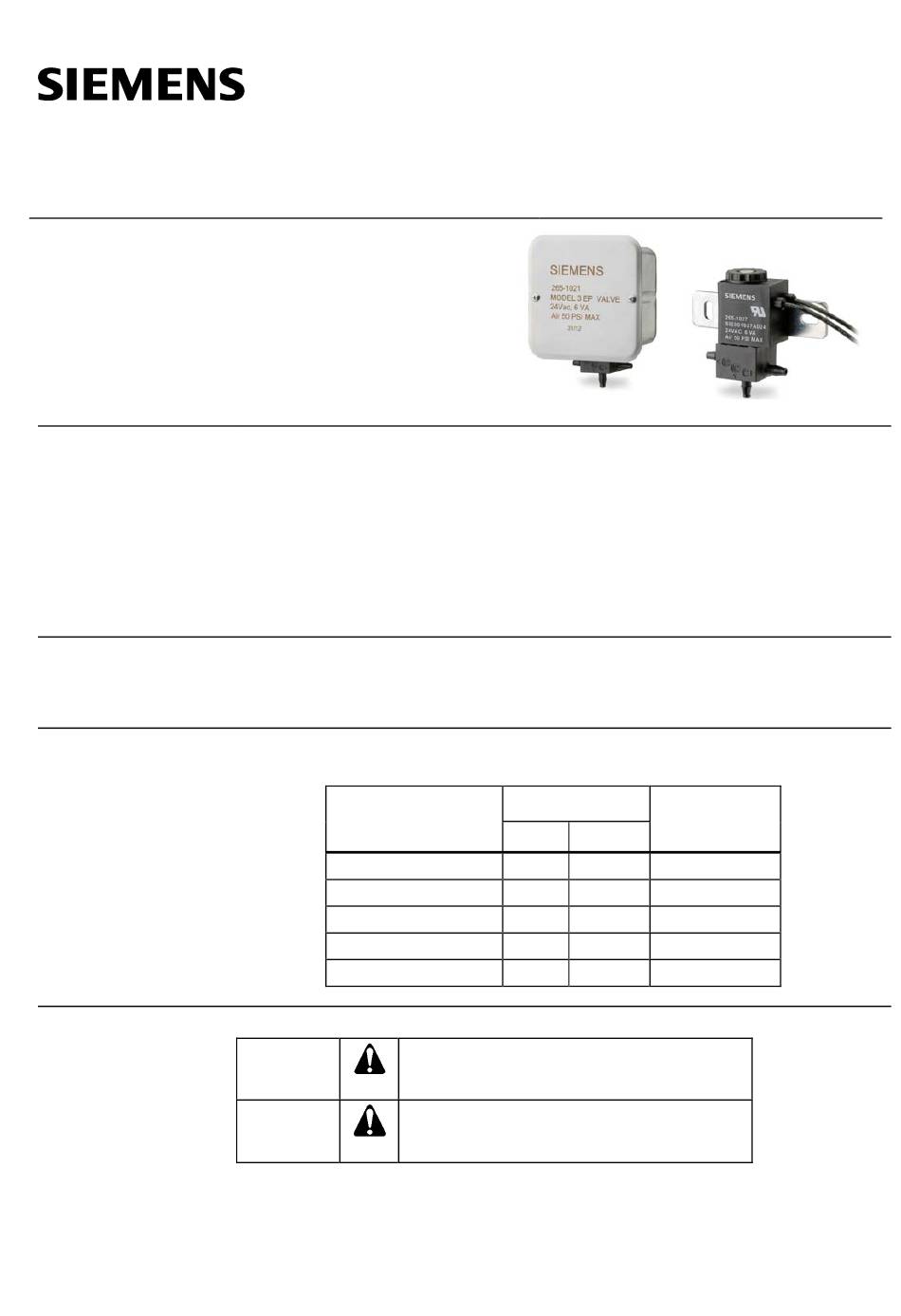

The Series 265 Electro-Pneumatic Valve is a general purpose, electrically operated, two-
position 3-way valve designed to control airflow. It can be used for interlock between an
electrical system and a pneumatic control system.
This compact, lightweight air valve has barbed, plastic tube connections marked:
NC
Normally closed
NO
Normally open
C
Common
Available types are Open Frame (yoke) and Junction Box (splice box).
UL and cUL recognized per UL 429
Valve may be mounted in any position
Mounting holes located in the back of the junction box or in the yoke (open frame)
Product Enclosure
Type
Junction Box
Junction Box
Junction Box
Open Frame
Open Frame
Personal injury/loss of life may occur if you do
WARNING:
not perform a procedure as specified.
Equipment damage/loss of data may occur if
CAUTION:
you do not perform a procedure as specified.
Technical Instructions
Document No. 155-058
Table 1.
AC Voltage
Product
Number
60Hz
50Hz
24
—
265-1021
120
110
265-1022
240
220
265-1024
24
—
265-1027
120
110
265-1028
