Gorilla Playsets Rock Wall Rocks Manual

Rock Wall Rocks (Package of 5) (07-0008)

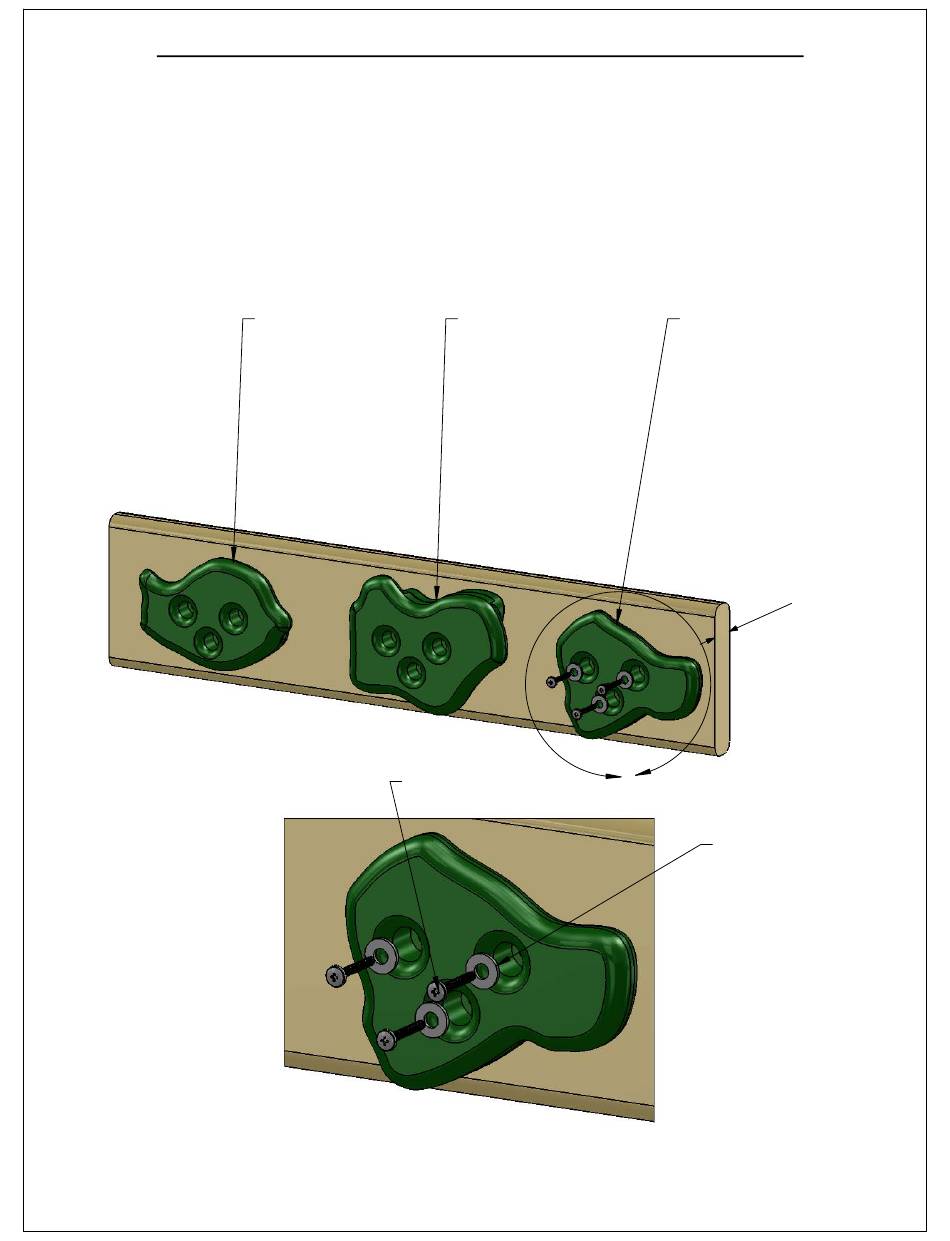

1. Rock Wall Rocks are packaged as a set of 5 with hardware. There are three shapes
of Rock Wall Rocks in each package.
2. Place Rock Wall Rock onto surface of board. (Board must be at least 1" thick) Board
should be approximately 5-1/2" in height and should be securely fastened to a
supporting structure. Rocks are strongest when attached with the two holes on top.
Typical placement of Rocks is a staggered pattern, when constructing a rock wall.
3. Attach Rock to board with three 5.5mm diameter x 30mm long pan head screws and
three 6.3mm i.d. x 14.5mm o.d. washers provided.
Rock Wall Rock
Approximate
Dimensions:
(5-3/4"w x 3-7/8"h x
1-5/8"d)
(Typically 2 in
package)
Pan Head Screw
DETAIL A
SCALE 1 : 2
*FOR RESIDENTIAL USE ONLY*
*FOR CHILDREN AGES 3-11*
Rock Wall Rock
Approximate
Dimensions:
(6"w x 4-1/2"h x
1-3/4"d)
(Typically 1 in
package)
A
Rock Wall Rock
Approximate
Dimensions:
(5-3/8"w x 4-3/4"h x
1-5/8"d)
(Typically 2 in
package)
1"Board Thickness
Washer
