Hoteche P805212A Manual

15a (1500w) 254mm (10”) table saw
Hide thumbs

Advertisement

Table of Contents

P805212A
15A(1500W) 254MM(10") TABLE SAW

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P805212A and is the answer not in the manual?

Questions and answers

Related Manuals for Hoteche P805212A

Summary of Contents for Hoteche P805212A

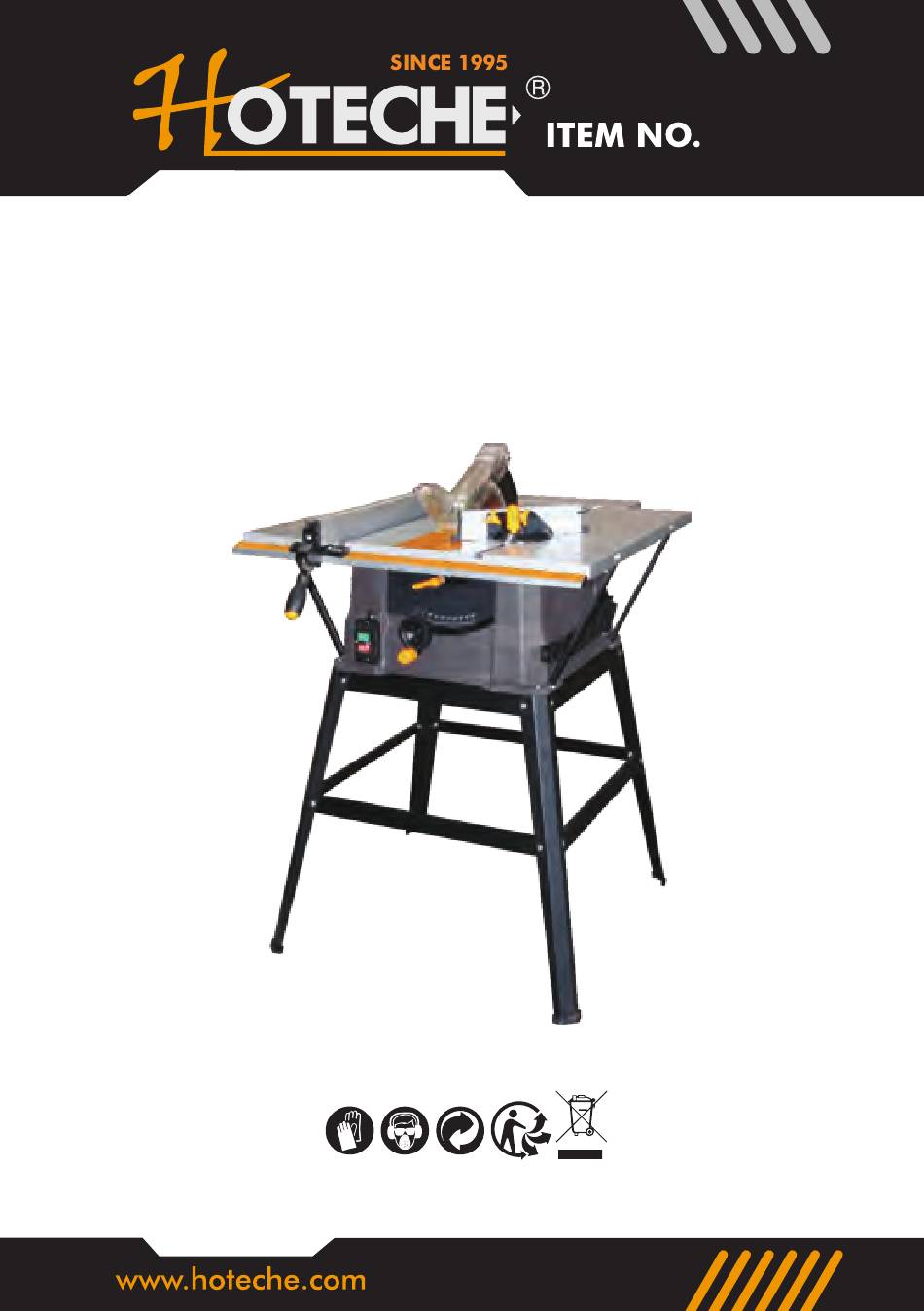

  • Page 1 P805212A 15A(1500W) 254MM(10”) TABLE SAW...
  • Page 2 The symbols in instruction manual and the label on the tool Read the instruction manual before using. Wear safety glasses, hearing protection and dust mask. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.

  • Page 3: General Power Tool Safety Warnings

    GENERAL POWER TOOL SAFETY WARNINGS WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool"...
  • Page 4 suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
  • Page 5 4) Power tool use and care a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off.
  • Page 6 Safety instructions for table saws 1) Guarding related warnings a) Keep guards in place. Guards must be in working order and be properly mounted. Aguard that is loose, damaged, or is not functioning correctly must be repaired or replaced. b) Always use saw blade guard, riving knife and anti-kickback device for every through–cutting operation.
  • Page 7 2) Cutting procedures warnings DANGER: Never place your fingers or hands in the vicinity or in line with the saw blade. A moment of inattention or a slip could direct your hand towards the saw blade and result in serious personal injury. b) Feed the workpiece into the saw blade or cutter only against the direction of rotation.
  • Page 8 j) Feed workpiece at an even pace. Do not bend or twist the workpiece. If jamming occurs, turn the tool off immediately, unplug the tool then clear the jam Jamming the saw blade by the workpiece can cause kickback or stall the motor. k) Do not remove pieces of cut-off material while the saw is running.
  • Page 9 g) Support large panels to minimise the risk of saw blade pinching and kickback. ( t r under all portions of the panel overhanging the table top. h) Use extra caution when cutting a workpiece that is twisted, knotted, warped or does not have a straight edge to guide it with a mitre gauge or along the fence.
  • Page 10 h) Never use damaged or incorrect saw blade mounting means such as flanges, saw blade washers, bolts or nuts. These mounting means were specially designed for your saw, for safe operation and optimum performance. i) Never stand on the table saw, do not use it as a stepping stool. Serious injury could occur if the tool is tipped or if the cutting tool is accidentally contacted.
  • Page 11 114) Instruction how to connect dust extraction systems; 115) For table saws with over-arm saw blade guard: Instruction to adjust the saw blade guard to contact the table top and instruction to adjust the saw blade guard to prevent contact with the saw blade for any depth and bevel angle setting;...

  • Page 12: Residual Risks

    8.14.2 c) Addition: 101) Instruction how to properly clean the tool, the dust collection system and the guarding system. Residual risks Even when the power tool is used as prescribed it is not possible to eliminate all residual risk factors. The following hazards may arise in connection with the power tool’s construction and design: a) Health defects resulting from vibration emission if the power tool is being used over longer period of time or not adequately managed and properly...
  • Page 13 WARNING! When using electric tools basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury including the following. Read all these instructions before attempting to operate this product and save these instructions. Safe operation Keep work area clear.

  • Page 14: Stay Alert

    13. Do not overreach. - Keep proper footing and balance at all times. 14. Maintain tools with care. - Keep cutting tools sharp and clean for better and safer performance. - Follow instruction for lubricating and changing accessories. - Inspect tool cords periodically and if damaged have them repaired by an authorized service facility.

  • Page 15: Health Advice

    – for tools provided with an isolating transformer: Never use the tool without the transformer delivered with the tool or of the type as specified in these instructions. – Replacement of the plug or the supply cord shall always be carried out by the manufacturer of the tool or his service organisation.
  • Page 16 - Remove wrenches, cut-off pieces, etc. from the table before the switch is turned on. - NEVER wear gloves during operation. - Keep hands out of the line of the saw blade. - NEVER stand or permit anyone else to stand in line with the path of the saw blade. - Make sure the blade is not contacting the riving knife or workpiece before the switch is turned on.
  • Page 17 - Always use clean, sharp, and properly set blades. Never make cuts with dull blades. - To avoid pinching the blade, support the work properly before beginning a cut. - When making a cut, use steady, even pressure. Never force cuts. - Do not cut wet or warped lumber.
  • Page 18 all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).Note The use of other tools will reduce the use rs’ total working period on this tool. Helping to minimise your vibration exposure risk.

  • Page 20: Technical Data

    TECHNICAL DATA Item No P805212A Volts: 110-120V ~50/60H z Power Input: 150 0W 4500/min No- load speed: Blade size: Ø254x2.8xØ15.9mm Max cutt ing capacity: 85mm (90°) / 60mm (45°) Table size: 430x638mm Blade tilting range:...
  • Page 21 22|English Warning: Before using your table saw, read the instruction manual carefully. Stand legs (4pcs) Warning: Carefully remove the table saw from the carton and remove the protective polyfoam from around the long top leg brackets (2pcs) motor. Warning: Do not connect to the power Short top leg brackets (2pcs) supply before assembly, adjustment and maintenance.
  • Page 23 NOTE: be in the front after finished. - Attach two supporting bars with the extension nuts M6 and hex bolts M6 x 16. Position the other - Finish the right extension assembly repeating the procedure above. Fig. 9 4. To assemble the front rail (Fig. 11-13) - Align the holes on the front rail with the extension tables and main table.
  • Page 25 7. To assemble the blade gurad (Fig. 17-18) WARNING: The saw blade guard must be in position at all times to prevent contact with the blade. It should lift up and onto the workpiece when the workpiece is passed through the saw. - Attach the blade guard over the riving knife so that the hole in the guard and the hole in the riving knife are aligned.
  • Page 26 9. To use dust extraction port (Fig. 22) To prevent fire hazard clean and WARNING: remove sawdust from under the saw frequently. - To prevent sawdust uildup inside the saw , for b vacumm hose housing est result, attach a e dust e ract port.
  • Page 32 - Set the miter gauge to the desired miter angle, and secure it in position by tightening gauge locking handle. the miter - Hold the work piece firmly against the face of the miter gauge throughout the cutting operation.

  • Page 34: Maintenance

    MAINTENANCE Always di sconnect the device before performing any ad ju st ment or maintenan ce operation. If the suppl y cor d i s damage d, i t mu st be repl aced by the manufacturer or its service agent in order to avoid a hazard.
  • Page 36 P805212A Exploding view...
  • Page 37 P805212A Spare part list Description Description Pointer Hex bolt Big flat washer Compress spring Screw B Hex nut Screw Friction pad Stand leg Stopper A Fl at washer Pin axis A Clamping screw Spring washer Clamping block Bracket A Spring pin...
  • Page 38 P805212A Spare part list Description Description Locking bush Bearing Flat key Screw Lift adjustment lever Body assembly Cabinet Screw Rotating plate (A) Pointer Screw Locking handle Rivin g k nife plate Compress spring Position block Locking handle cover Position pin...
