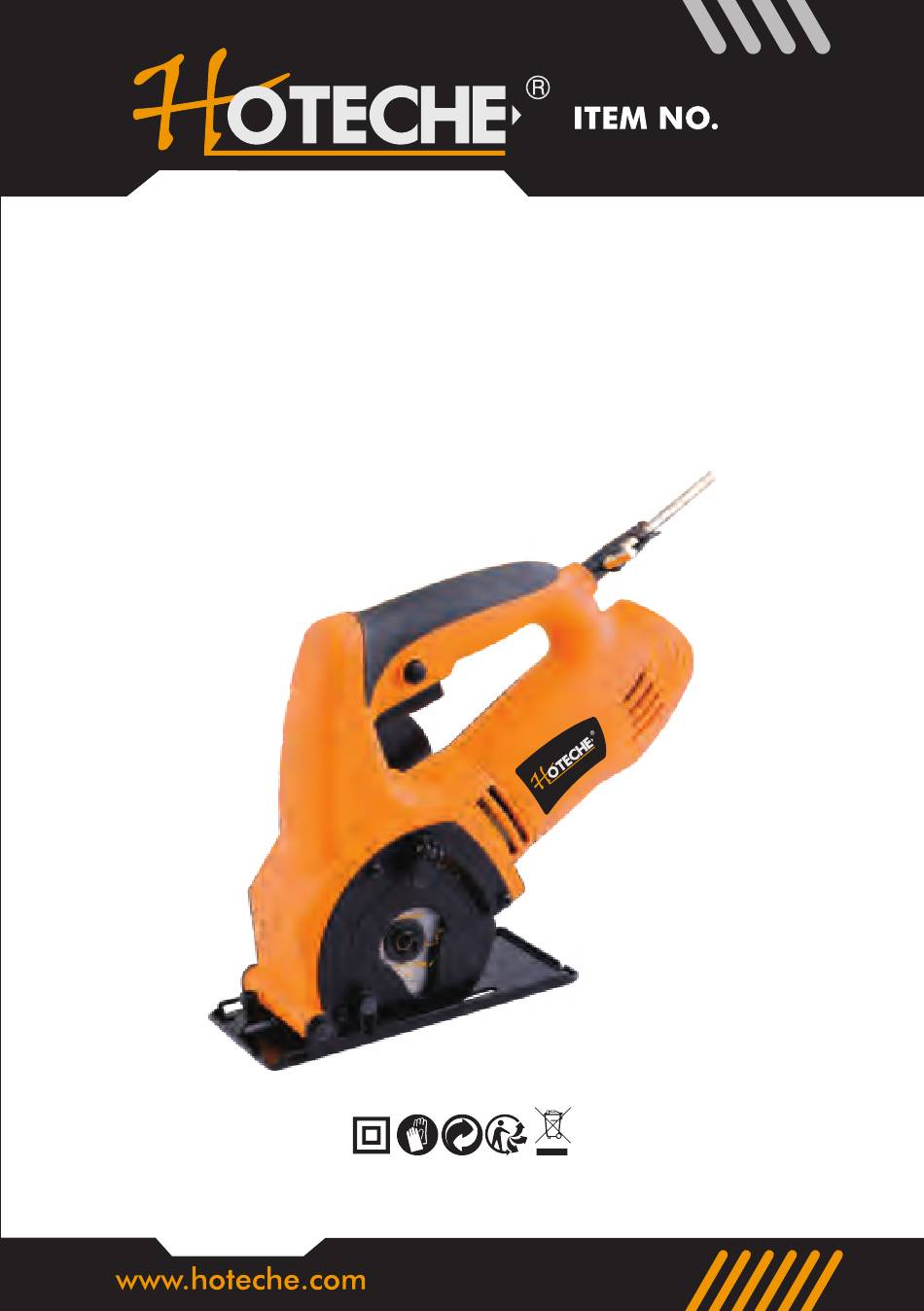

  • Page 1 SINCE 1995 P800609A 5A(600W) 85MM (3 / ") MULTI-CUTTER MINI CIRCULAR SAW...

  • Page 2: General Safety Rules

    cord to carry the tools or pull the pug GENERAL SAFETY RULES from an outlet. Keep cord away from WARNING: heat oil, sharp edges or moving parts. Read and understand all instruction. replace damaged cords immediately. Failure to follow all instructions listed Damaged cords increase the risk of below, may result in electric shock, electric shock.
  • Page 3 Remove adjusting keys 4. Disconnect the plug from the wrenches before turning the tool power source before making any on. A wrench or a key that is left adjustment, changing accessories, attached to a rotating part of the or storing the tool. Such preventive tool may result in personal injury.

  • Page 4: Functional Description

    result in a risk of injury. 22. blade screw 2. When servicing a tools use only 23. hex key identical replacement parts. Use of 24. parallel fence unauthorized parts or failure to 25. cutting width indication ruler follow maintenance instructions may create a risk of electric shock or injury.

  • Page 5: Putting Into Operation

    depth setting is useless, just loose the knob 7, the knob is just be a guide for plunge cutting, and the user should read the cutting depth by eyes. Blade changing NB. Incorrect positioning of the blade can permanently damage the tool. Fig 3 1.
  • Page 6 4. Place the material to be cut onto a the depth setting, is marked on the flat surface such as a workbench, cutting width indication ruler 25. If you table or floor, use pieces of scrap need, please put the ruler 25 to the slot material underneath.
  • Page 7 depress the release button, plunge and DIAMOND DISC to cut wood cut to the depth you want, then go pieces, plastic pieces, soft metals, and back cutting, till the front and and tile ceramic, etc. rear number both reach the 2.
  • Page 8 2. Clean thoroughly with a small soft brush. 3. Slightly knock the machine and let the dust come out from inside place. Specification Voltage 110V-120V, 50/60Hz Power 5A(600W) Blade diameter 85mm Cutting depth 0-24mm No load speed 5500/min ８...
  • Page 10 No. English description Qty. No. English description Qty. Ball bearing 6000zz-2RS Tapping screw ST4*16 capacitor Center support switch left housing right housing stator screw 34 Cylindrical pin φ3*13.5 capacitor plate 35 Depth wrench 7 Cable sheath 36 Depth indicator block plug and cable 37 Depth lock pin Tapping screw ST4*28...
